LEICI DZS-706C multiparameter Water Quality Analyzer measurement conductivity/dissolved oxygen concentration/temperature value

LEICI DZS-706C multiparameter Water Quality Analyzer can simultaneously measure conductivity value, dissolved oxygen concentration value and temperature value, and has automatic temperature compensation function.
Contact
Details SPEC OI

LeiCi DZS-706C (Conductivity detector, dissolved oxygen, ℃) Multiparameter Water Quality AnalyzerSPEC

LeiCi DZS-706C (Conductivity detector, dissolved oxygen, ℃) Multiparameter Water Quality AnalyzerDetails

LeiCi DZS-706C (Conductivity detector, dissolved oxygen, ℃) Multiparameter Water Quality AnalyzerPacking list

SKU
NB001168
Instrument level
Conductivity: 1.0 level
Measurement parameters
Conductivity Detector, dissolved oxygen, temperature
Ion concentration Measurement range
(0~19990) Optional units: pX, mol/L, mmol/L, g/L, mg/L, ug/L
Conductivity range
0.000μS/cm~199.9ｍS/cm
Resistivity range
0.00Ω·cm~20.00MΩ·cm
TDS range
0.000mg/L~100g/L
Salinity range
0.00~8.00%
DO range
0.00~19.99mg/L
DO% Measurement range
0.0~199.9%
Response time
≤ 45s (90% Response at 20 ℃)
Measurement range
-5.0~105.0℃
EC resolution
0.001μS/cm
Resistivity resolution
0.01Ω·cm
TDS resolution
0.001mg/L
Salinity resolution
0.01%
DOS resolution
0.01mg/L
DO% resolution
0.10%
Temperature Resolution
0.1℃
EC intrinsic error
±1.0％FS
Resistivity intrinsic error
±1.0％FS
TDS intrinsic error
±1.0％FS
Salinity intrinsic error
±0.2%
DO intrinsic error
±0.30mg/L
DO% intrinsic error
±10.0%
Temperature intrinsic error
+/- 0.3 ℃ +/- 1 word
Temperature compensation range
Automatic, PH: (0.0~100.0) ℃; Conductivity Detector: (0.0~100.0) ℃; dissolved oxygen: (0.0~40.0) ℃
Power Supply
DC universal Power Supply (9V DC, 800mA)
Dimensions
280*215*93mm
Weight
1kg
DZS-706C (Conductivity detector, dissolved oxygen, ℃)
Multiparameter Water Quality Analyzer

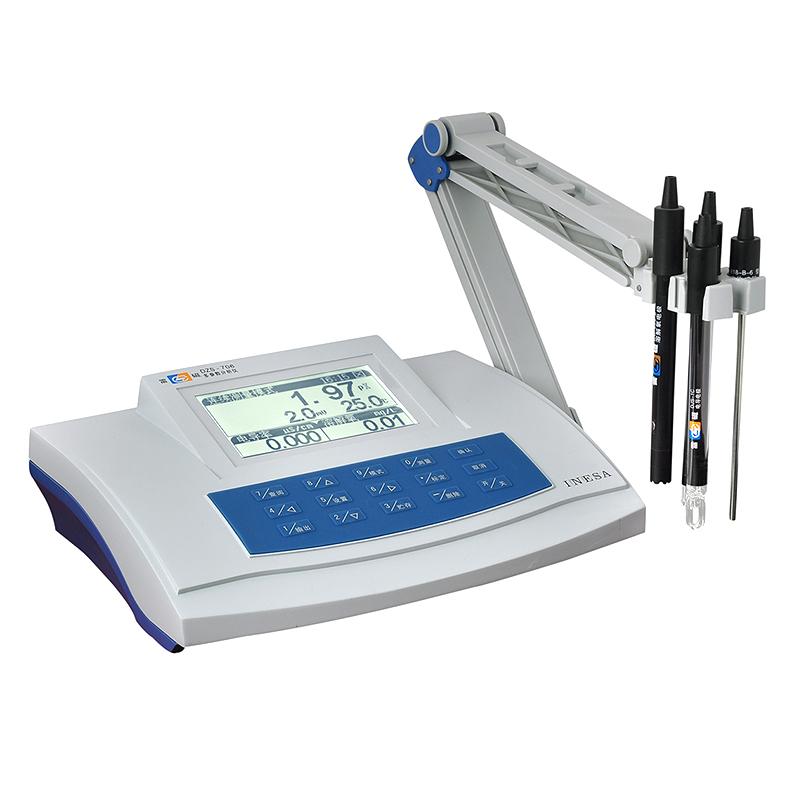

LEICI DZS-706C multiparameter Water Quality Analyzer measurement conductivity/dissolved oxygen concentration/temperature value Picture

Introduction

The DZS-706C multi-parameter Water Quality Analyzer is equipped with a temperature sensor to detect the dissolved oxygen concentration value, temperature value and conductivity value of the aqueous solution, and can realize the automatic temperature compensation function.DZS-706C multi-parameter Water Quality Analyzer conductivity grade is 1.0, measurement of dissolved oxygen concentration resolution of 0.01mg/L, and response time is not less than 45s, with timing measurement, continuous measurement, balance measurement three measurement modes, can be connected to the computer through the USB interface.

Features and functions

●Comply with GLP specifications, the maximum storage capacity is 2200 sets;

●DZS-706C multi-parameter Water Quality AnalyzerIt can measure conductivity, resistivity, TDS, salinity, temperature, dissolved oxygen and other parameters at the same time;

●Automatic calibration, manual/automatic temperature compensation, maintain a reasonable temperature environment;

●It has three measurement modes: continuous measurement, timing measurement and balance measurement;

●Communication with PC can be done through standard USB communication interface and REX instrument communication software.

Module features

1. Dissolved oxygen measurement module function

DZS-706C multi-parameter Water Quality AnalyzerIt has the functions of automatic zero oxygen calibration and full calibration, and can realize two calibration methods: air pressure calibration and salinity calibration.

2. Conductivity measurement module function

1）DZS-706C multi-parameter Water Quality AnalyzerIt supports the measurement of conductivity, resistivity, TDS, and salinity.

2) Automatic calibration, automatic range switching, can calibrate the cell constant or TDS conversion coefficient. Among them, DZB-718 supports 2-point calibration.

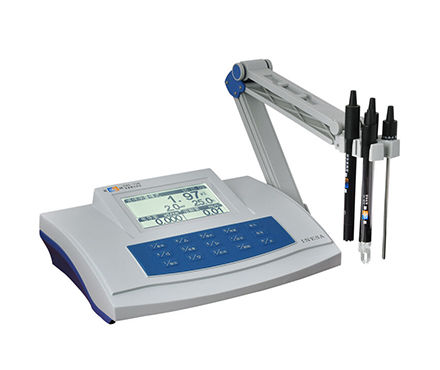

Actual picture of the product

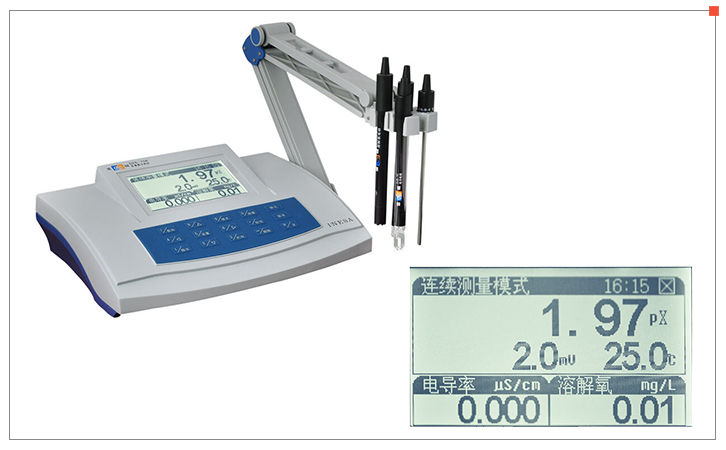

Detail drawing of Thunder Magnet DZS-706C multi-parameter Water Quality Analyzer

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
