TS-100B

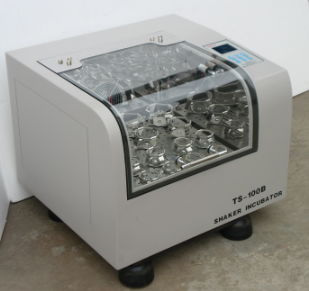

JieCheng TS-100B Desktop Air Bath thermostatic ShakerSPEC
JieCheng TS-100B Desktop Air Bath thermostatic ShakerDetails
JieCheng TS-100B Desktop Air Bath thermostatic ShakerPacking list
- SKU
- NB011972
- Temperature range
- RT+5~60℃
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±0.1℃
- Oscillation mode
- cyclotron
- Oscillation Frequency
- 30~400rpm
- Speed Accuracy
- ±1rpm
- Oscillation Stroke
- Φ26mm
- Maximum configuration
- 50ml*20 or 100ml*16 or 250ml*12 or 500ml*9
- Pallet size
- 295*245mm
- Number of pallets
- 1pcs
- Liner size
- 340*285*200mm
- Timer Range
- 0~999h
- Dimension
- 440*410*390mm
- Net Weight
- 31kg
- Input Power
- 220W
- Power supply Voltage
- AC 220V 50Hz
- Display mode
- LCD one-screen display
- Environmental temperature
- 5~40℃
- Door opening method
- Open the door
- Standard configuration
- 50ml*4100ml*4250ml*3 500ml * 3 sticks
- Volume
- 20L
Introduction
Tabletop air bath thermostatic shaker (also known as thermostatic shaker) is widely used in bacterial culture, fermentation, hybridization and biochemical reactions, as well as enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has a wide range of important applications in medicine, biology, molecular science, food, environmental protection and other research and application fields.
Features
★ It integrates a constant temperature Incubator and a shaker, which saves space, occupies a small area, has many functions and requires little investment.
★ Tilted humanized control panel, large screen backlit LCD screen, more good visual effect.
★ Personalized program design, up to 10 programmable programs can be preset, and the temperature, speed and time can be pre-scheduled and timed
★ The whole working state of the large-angle observation window is clear and clear.
★ The whole machine has a silent design, electrostatic spraying box, and the shape is luxurious and beautiful.
★ High-performance thermostatic function to avoid evaporation and drying of samples.
★ AC induction long-life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free.
★ Mirrored stainless steel lining, stainless steel electropolished trays, springs, flask clips. The instrument is never in danger of corrosion.
★ Flexible and convenient, pallets, fixtures, can be disassembled.
Introduction to controls
★ Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection, overspeed protection, and liquid crystal display, with timing function,
★ The line that controls the speed ensures that the shaker starts slowly and accelerates smoothly, ensuring the safety of the experimental samples and the accurate and reliable speed control.
★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions
★ Over-temperature alarm, over-speed alarm, timed shutdown, call recovery, parameter encryption, temperature correction, speed correction and other functions.
★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again
Security settings
★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment
★ Safety functions: sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection, etc
Product Display
