TS-110X50
JieCheng TS-110X50 Double-decked Extra Large Capacity Air Bath ShakerSPEC
JieCheng TS-110X50 Double-decked Extra Large Capacity Air Bath ShakerDetails
JieCheng TS-110X50 Double-decked Extra Large Capacity Air Bath ShakerPacking list
- SKU
- NB011989
- Temperature range
- RT+~99.9℃
- Temperature Resolution
- 0.1℃
- refrigeration method
- automatic
- Compressor defrosting method
- automatic
- Temperature Fluctuation
- ±0.1℃
- Oscillation mode
- cyclotron
- Oscillation Frequency
- 0~200rpm
- Speed Accuracy
- ±1rpm
- Oscillation Stroke
- 35mm
- Maximum configuration
- 100ml*20 or250ml*15 or500ml*11 or 1000ml*6
- Pallet size
- 970*560mm
- Number of pallets
- 2pcs
- Liner size
- 1120*640*830mm
- Liner material
- 304 #stainless steel
- Timer Range
- 0~999h
- Lighting method
- Built-in lighting, UV sterilization lamp
- Dimension
- 1200*800*1500mm
- Net Weight
- 380kg
- Input Power
- 960W
- Power supply Voltage
- AC 220V 50Hz
- Display mode
- LCD one-screen display
- Environmental temperature
- 5~40℃
- Standard configuration
- 250ml*15
- Volume
- 595L
Introduction
Reciprocating constant temperature Water Bath shaker (also known as reciprocating constant temperature Water Bath shaker) is a kind of biochemical instrument for cultivating and preparing biological samples, and is an indispensable laboratory equipment for precision cultivation and preparation in scientific research, education and production departments such as plants, biology, microorganisms, genetic viruses, medicine, and environmental protection.
Features
★ It integrates a constant temperature Water Bath and an oscillator, which saves space and occupies a small area, with many functions and little investment.
★ Tilted humanized control panel, large screen backlit LCD screen, more good visual effect.
★ Individually programmed for scheduled timed runs of temperature, speed and time
★ The detachable stainless steel lid allows for easy detachability when not needed.
★ The whole machine has a silent design, electrostatic spraying box, and the shape is luxurious and beautiful.
★ There is a drain valve on the side of the sink.
★ AC induction long-life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free.
★ Mirrored stainless steel lining, stainless steel electropolished trays, springs, flask clips. The instrument is never in danger of corrosion.
★ Flexible and convenient, pallets, fixtures, can be disassembled.
Introduction to controls
★ Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection, overspeed protection, and liquid crystal display, with timing function,
★ The line that controls the speed ensures that the shaker starts slowly and accelerates smoothly, ensuring the safety of the experimental samples and the accurate and reliable speed control.
★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions
★ Over-temperature alarm, over-speed alarm, timed shutdown, call recovery, parameter encryption, temperature correction, speed correction and other functions.
★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again
Security settings
★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment
★ Safety functions: sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection, etc

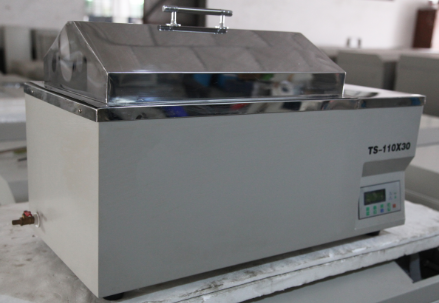

Product display diagram
