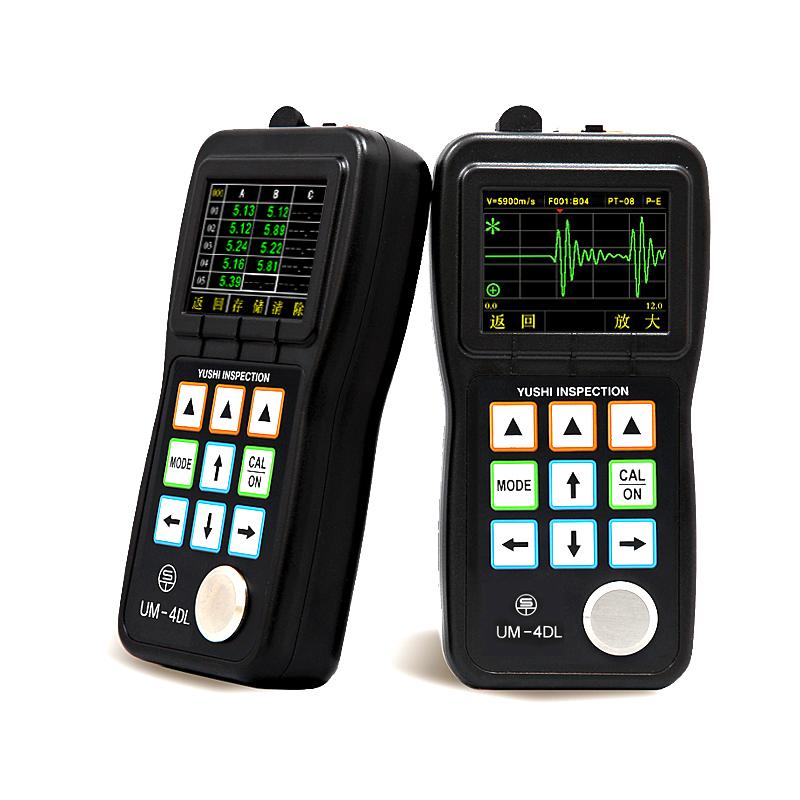

YUSHINDT UM-4DL Large capacity penetrating coating Ultrasonic Thickness Gauge 10W Storage value
UM-4DL ultra-large capacity penetration coating Ultrasonic Thickness Gauge is a storage type, including all the characteristics of UM-4D, adding storage function, which can store 10W thickness values.
Model：
UM-4DL
yushindt
Similar products
yushindt UM-4DL Ultrasonic Thickness GaugeSPEC
yushindt UM-4DL Ultrasonic Thickness GaugeDetails
yushindt UM-4DL Ultrasonic Thickness GaugePacking list
- SKU
- NB012022
- Measurement range
- 1.0~270mm
- Probe Frequency
- 5Hz
- Probe diameter
- Φ13.5mm
- Probe contact temperature
- -10~70℃
- Lower limit of pipe measurement
- Should 20mm * 3.0mm (standard TC510 probe)
- measurement error
- +/- 0.05mm (< 20mm )； +/- 0.5% H + 0.01 (over 20mm)
- Display resolution
- 0.01/0.1mm
- unit system
- mm/inch
- Calibration method
- One point calibrated, two point calibrated
- Repeatability
- ±0.05mm

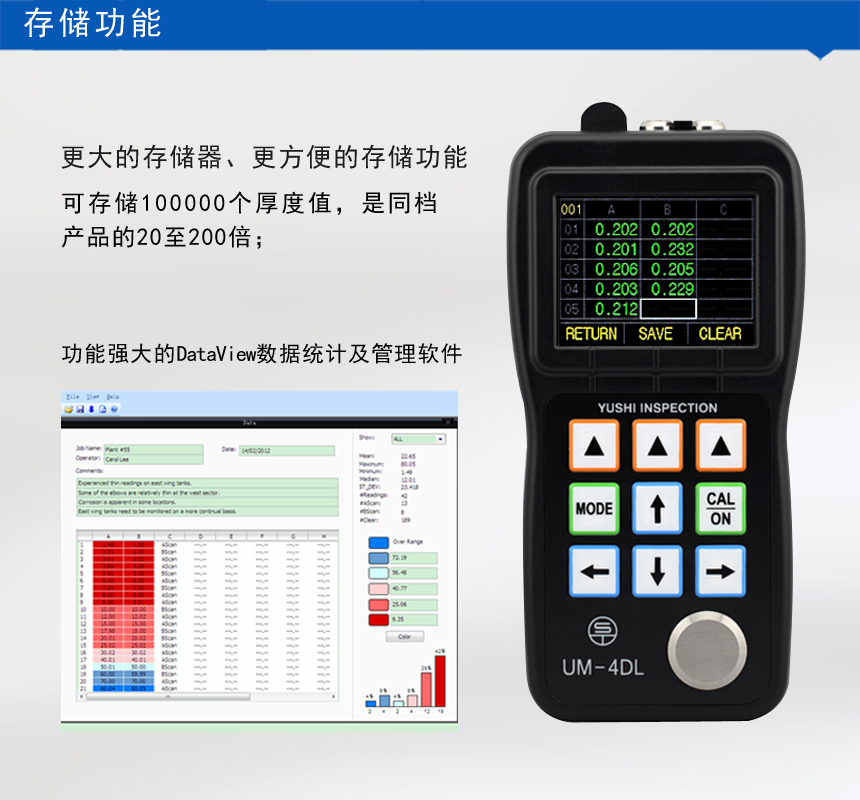

- Storage Capacity
- 400 files, 100,000 thickness values
- statistical function
- Thickness Value Mode, Min/MAX Maximum Capture Mode, Difference/Reduction Rate Mode
- Speed of sound
- 500~9999m/s
- Display
- 2.4QVGA (320 × 240) color OLED screen, contrast ratio 10000:1
- Operating language
- Chinese, English, Japanese, German and French are available in five languages
- Interface
- USB 2.0 full speed interface
- Application Software
- DataView software
- Environmental temperature
- -10~50℃
- Power Supply
- Two 1.5V AA batteries
- Operating Time
- 35h
- Host size
- 149*73*32mm
- Weight
- 280G (including battery)
UM-4DL
Ultrasonic Thickness Gauge

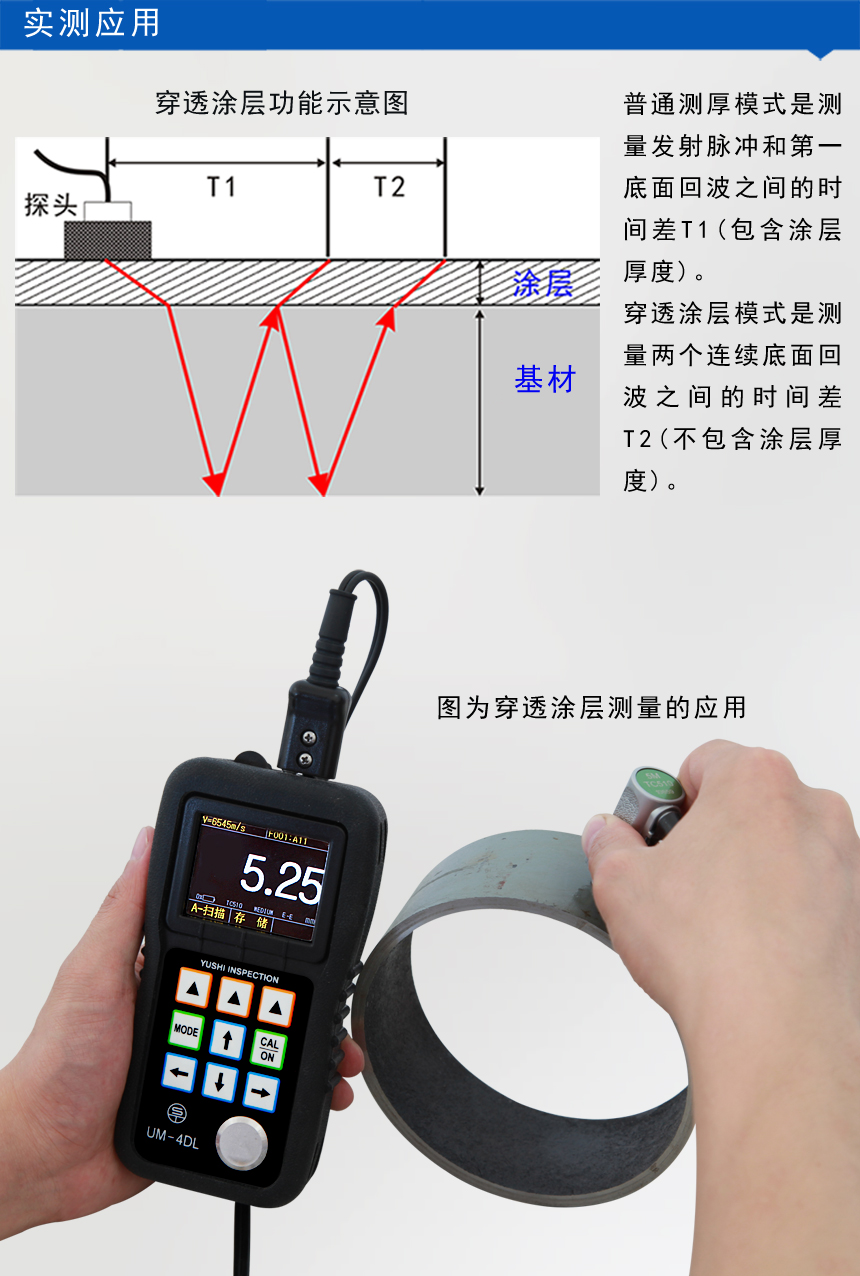

The UM-4DL Ultra High Capacity Penetrating Coating Ultrasonic Thickness Gauge is a storage type that includes all the features of the UM-4D, with the added memory function to store 10W thickness values.
It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other special materials; It is also possible to measure coated materials such as paint layers on the surface of the workpiece; It is also widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection industry and other testing fields.
FAQ
QHow thin can this UM-4DL Ultrasonic Thickness Gauge measure?
A
UM-4DL Ultrasonic Thickness Gauge can measure the minimum limit thickness of 1mm
