YUSHINDT PM-5DL high-precision with memory Thickness Gauge 10W thickness value and 1000 waveforms

SE

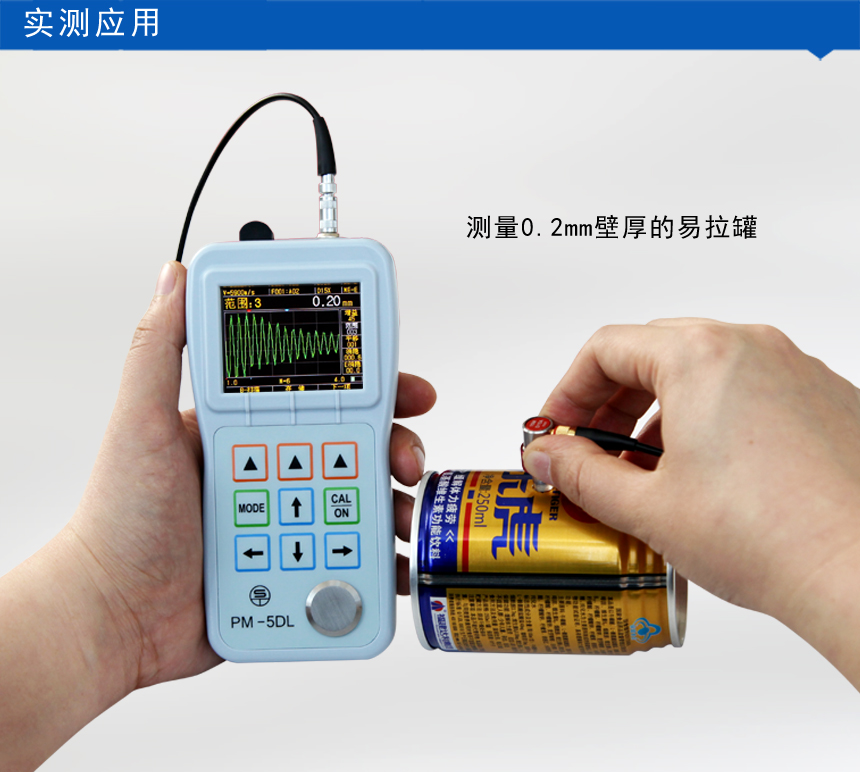

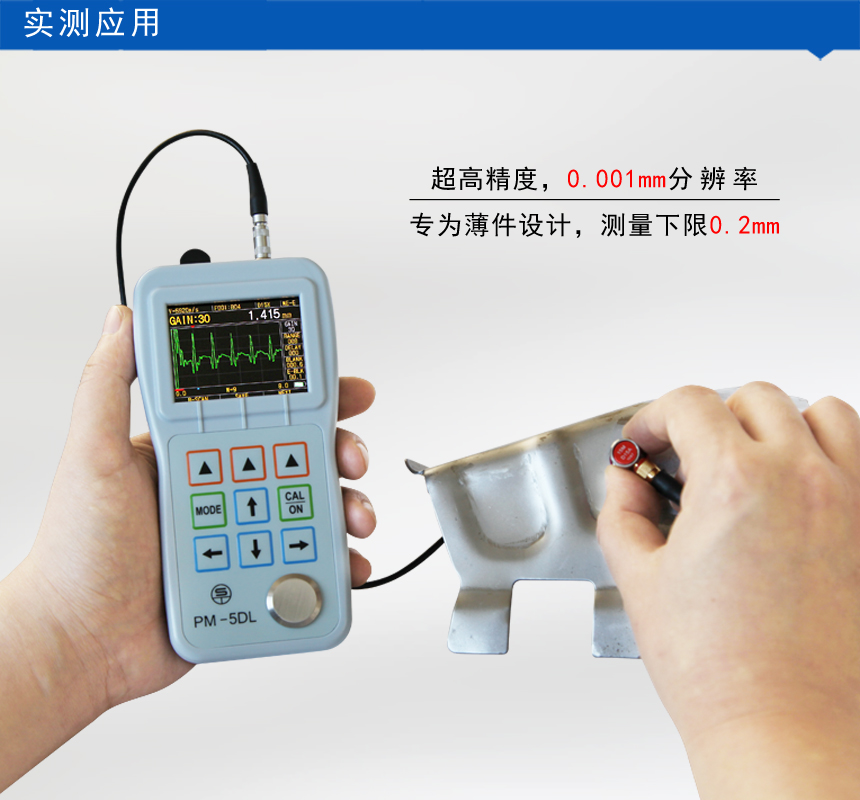

PM-5DL high-precision tape storage Thickness Gauge is a high-precision storage type, including all the characteristics of PM-5, to increase the storage function. It is often suitable for thickness measurement of thin-walled materials such as car body steel plates, fire/security doors, copper doors/door panels, fire extinguishers, office cabinets, metal staircase handrails, cooking utensils, etc.
Model：
Contact
Details SPEC CAT OI

yushindt PM-5DL Ultrasonic Thickness GaugeSPEC

yushindt PM-5DL Ultrasonic Thickness GaugeDetails

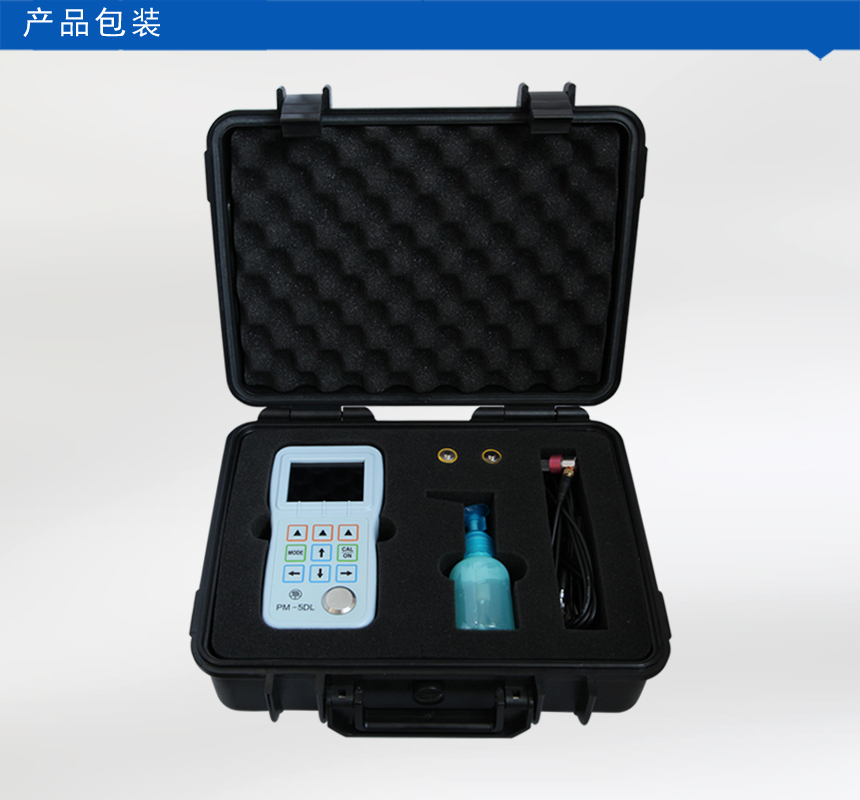

yushindt PM-5DL Ultrasonic Thickness GaugePacking list

SKU
NB012029
Measurement range
Automatic 0.25mm-27mm; Multiwave check method 0.25mm-9mm; echo-echo method 0.25mm-13.5mm; pulse-echo method 1.5mm-27mm
Probe Frequency
4Hz, 8Hz, 16Hz per second optional
Display resolution
0.001/0.01/0.1mm
unit system
mm/inch

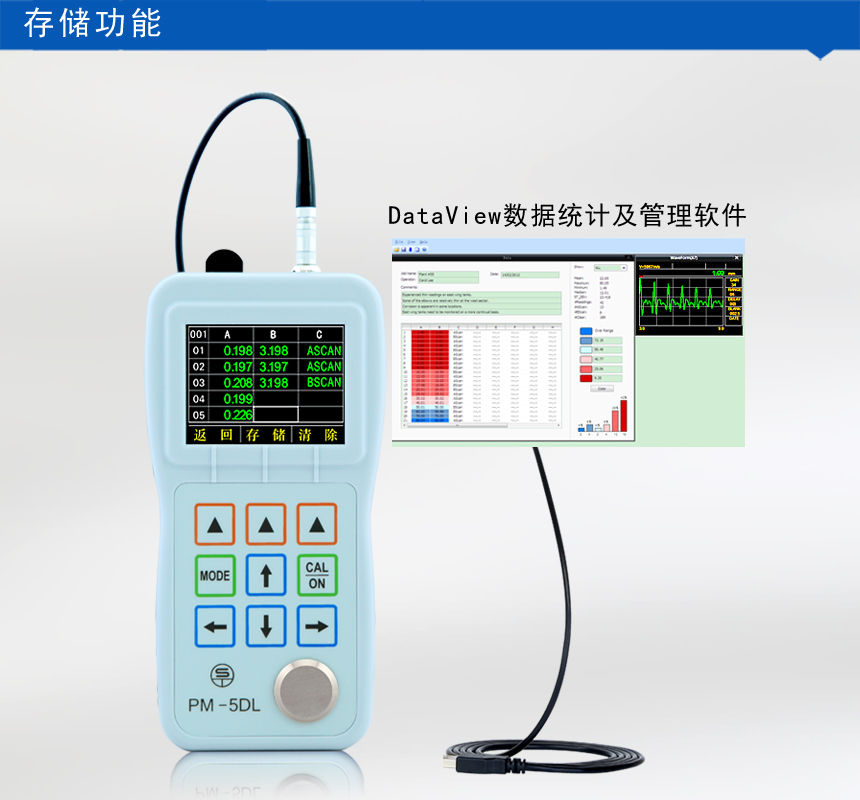

Storage Capacity
400 files, 100,000 thicknesses and 1000 waveforms
statistical function
Thickness value, minimum thickness value, and maximum thickness value
Speed of sound
500~9999m/s
Display
2.4QVGA (320 × 240) color OLED screen, contrast ratio 10000:1
Operating language
Chinese, English, Japanese, German and French are available in five languages
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries
Operating Time
35h
Host size
153*76*37mm
Weight
280G (including battery)
PM-5DL
Ultrasonic Thickness Gauge

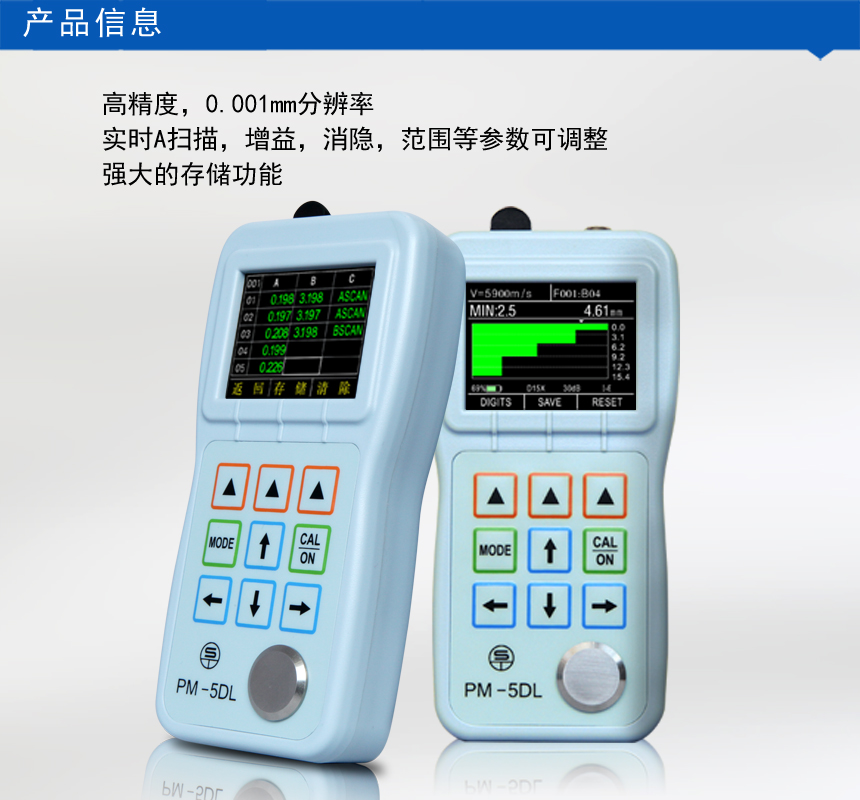

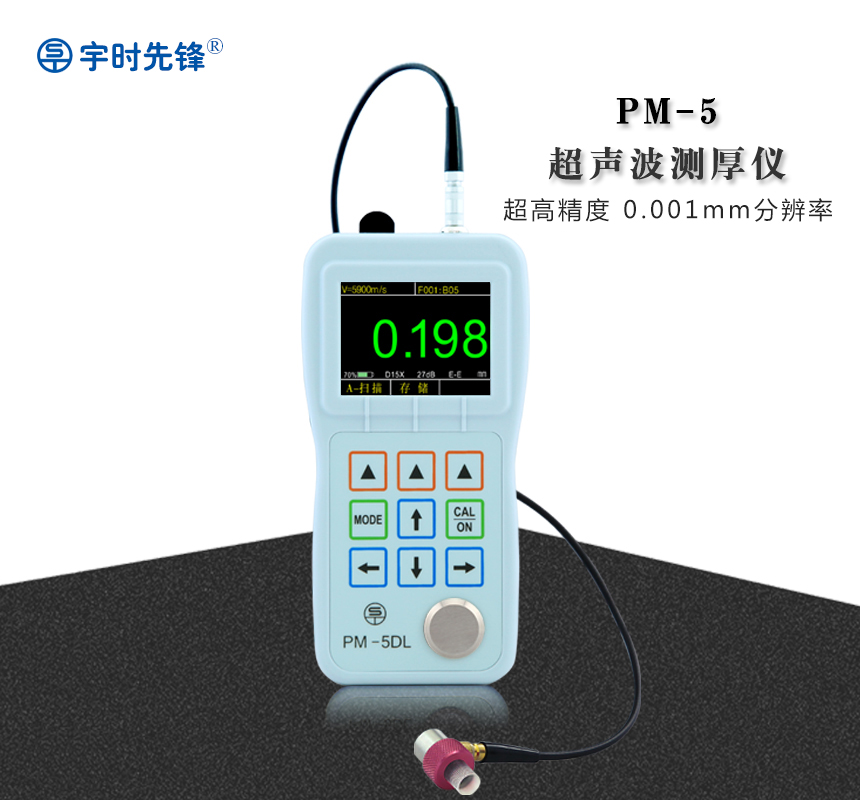

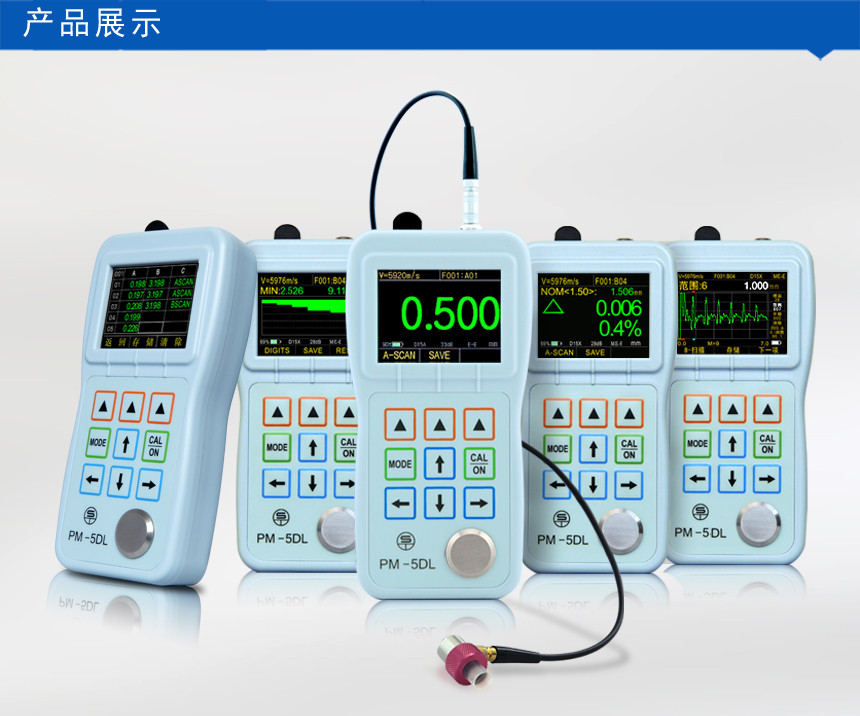

YUSHINDT PM-5DL high-precision with memory Thickness Gauge 10W thickness value and 1000 waveforms Picture

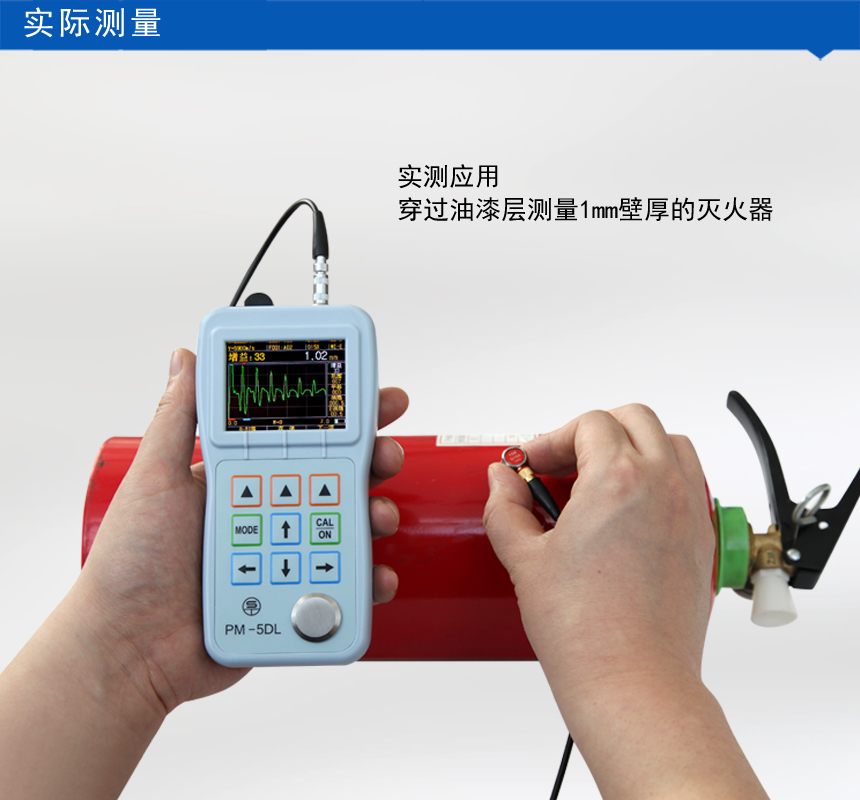

 The PM-5DL High Precision Thickness Gauge with Memory is a high-precision storage type that includes all the features of the PM-5 with added memory capabilities. It is often suitable for thickness measurement of thin-walled materials such as automobile body steel plates, fireproof/anti-theft doors, copper doors/door panels, fire extinguishers, office roll cabinets, metal stair handrails, and cookware supplies.
