FLUKO F22Z High Shear Dispersion Mulser Flow rate up to 1~ 15L/min

FLUKO F22Z High Shear Dispersion Mulser adopts digital/scale two Rotation speed Display modes, 20DG standard working head, the maximum processing viscosity of F22Z High Shear Dispersion Mulser is 1000cp, and the speed range is 10000~28000rpm.
Model：
Contact
Details SPEC CAT

fluko F22Z FLUKO High Shear Dispersion MulserSPEC

fluko F22Z FLUKO High Shear Dispersion MulserDetails

fluko F22Z FLUKO High Shear Dispersion MulserPacking list

SKU
NB012055
Power
500W
Power Supply
220V，50/60Hz
Processing Capacity
200~10000ml
Max. Processing Viscosity
1000CP
Speed range
10000~28000rpm
Rotation speed display
Scale/Digital Display
Rotation speed control
stepless speed regulation
Contact material
SS316L、FKM
Bushing material
Copper alloy
Environmental temperature
5~40℃
Allowable Relative Humidity
≤80%
Process type
online processing
Dimension
210*290*675mm
Weight
~13kg
Encasement
carton
Base material
SS304
Import and export outer diameter
14 (hose interface)
Flow rate range
1-15L/min
Use the highest temperature
120℃
Standard working chamber
Stainless steel jackless working chamber
Work head specification
20DG
Mechanical sealing material
SiC, FKM, ceramics
F22Z
FLUKO High Shear Dispersion Mulser

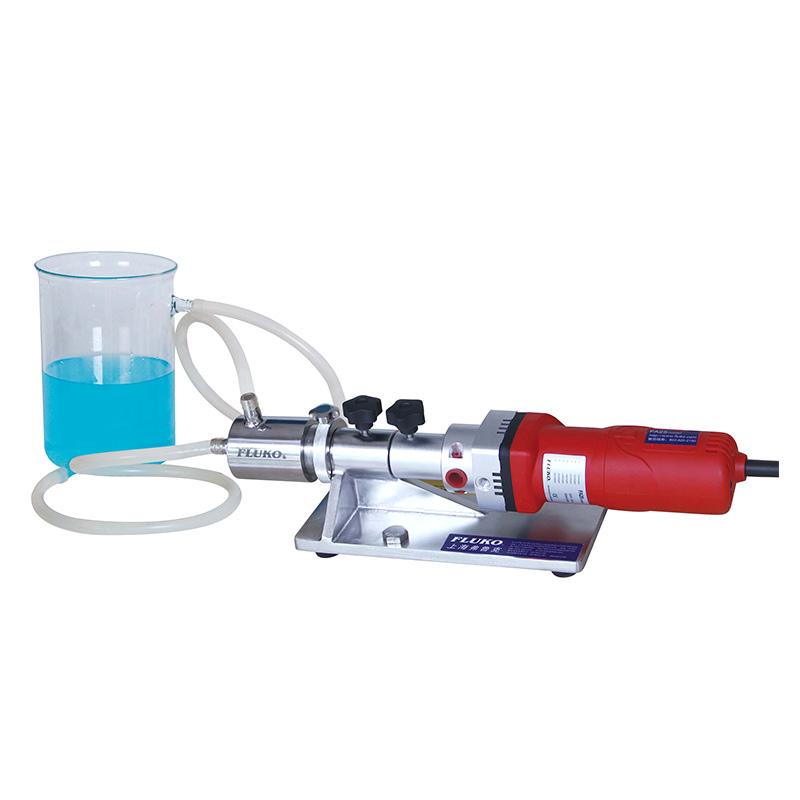

FLUKO F22Z High Shear Dispersion Mulser Flow rate up to 1~ 15L/min Picture

Introduction

The Fluker F22Z high-shear dispersion emulsifier uses a high-speed motor and is optionally equipped with a stainless steel jacketed or glass working chamber. The unique stator and rotor structure produces super shear force, rapidly reduces the size of the droplets, and processes the material more finely and uniformly.

Features

Fluker F22Z high shear dispersion emulsifier can be simulated in the laboratory for on-line Operating Conditions for circulation or on-line continuous processing, with the characteristics of effective homogenization without dispersion dead angles.

Applicable process

Laboratory continuous flow processing, which can recycle materials to complete online dispersion, emulsification, homogenization and mixing.

Presentation diagram

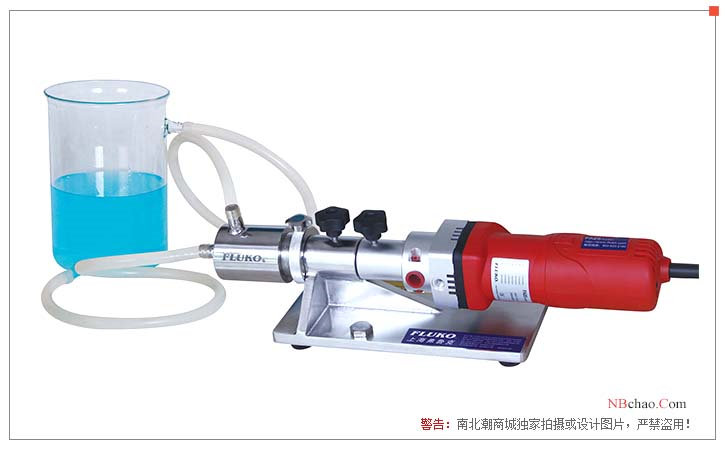

Illustration of the Fluke F22Z High Shear Dispersion Emulsifier
