German EPK MiniTest 2100 precision coated platings Thickness Gauge host, without probe

EPK MiniTest 2100 precision coating platings Thickness Gauge is MiniTest series coating platings Thickness Gauge, can store 10000 measurement data, Mintest2100 precision coating platings Thickness Gauge is more suitable for Measured objects called fixed users.
Contact
Details SPEC CAT OI

ElektroPhysik MiniTest 2100 Coated platings Thickness GaugeSPEC

ElektroPhysik MiniTest 2100 Coated platings Thickness GaugeDetails

ElektroPhysik MiniTest 2100 Coated platings Thickness GaugePacking list

SKU
NB012396
Measurement principle
Magnetic Induction + eddy Current
Measurement range
Determined by the probe
margin of error
Depending on the probe
Minimum measurement surface
Depending on the probe
Minimum radius of curvature
Depending on the probe
thinnest substrate
Depending on the probe
probe
Line probe
Calibrated Certificate
none
Unit display
μm
statistical function
none
Interface
RS-232
Data storage
10,000 Measured values
Power Supply
1 * 9V alkaline battery, AC adapter
Standards
DIN 50981、DIN 50982、DIN 50984、ISO 2178、ISO 2360、BS 5411、ASTM B499、ASTMB244-CE
Display screen
LCD screen
Operating temperature
0~50℃
Battery life
10,000 measurements
Weight
270g
Dimension
150*82*35mm
number of rows applied
1
Number of groups per application line
1
Groupable number in memory
1
MiniTest 2100
Coated platings Thickness Gauge

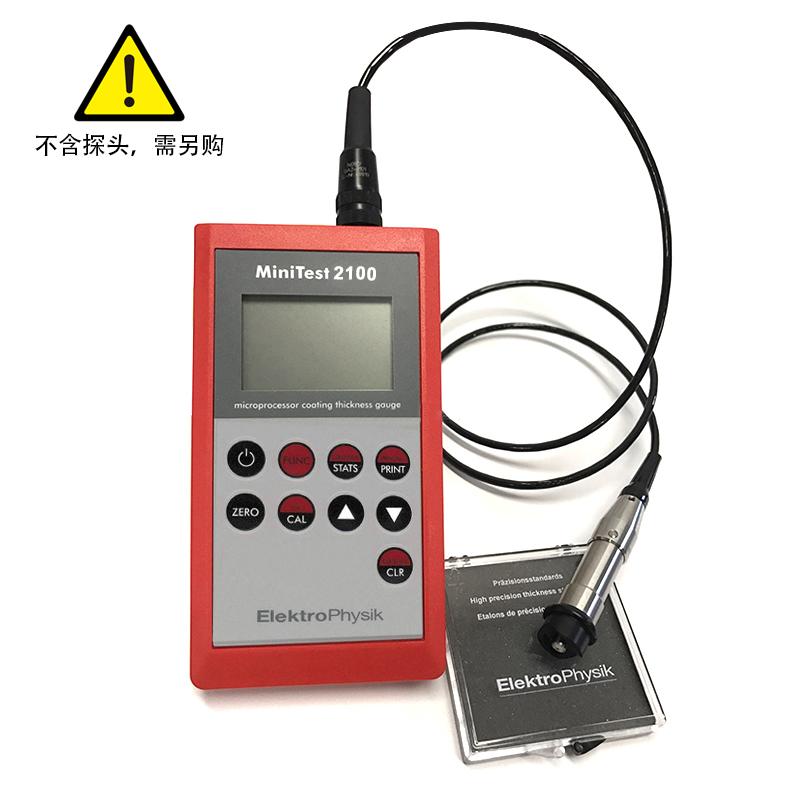

German EPK MiniTest 2100 precision coated platings Thickness Gauge host, without probe Picture

Introduction

The German EPK MiniTest Precision Coating Thickness Gauge is used to measure the following cladding (cladding includes coatings, coatings, etc.):

● Non-magnetic cladding on steel substrates (e.g. paint, zinc);

● Insulating cladding on non-ferrous metals (e.g. paint, anodized film);

● Non-ferrous metal cladding on the insulating substrate.

 The Mintest Coated Thickness Gauge contains: Minitest 4100、 Minitest 3100、 Minitest 2100、 Minitest The 1100 has four different hosts, each with different data processing capabilities. All probes can be used with either host unit. Factors such as cladding thickness, substrate material, substrate shape, thickness, size, geometry and other factors should be considered when selecting the most suitable probe.

The MiniTest 2100 host can store a total of 10,000 measured values in a group, and all measured values can be statistically evaluated, which is more suitable for users with fixed measurement objects。

Product Applications

EPK MiniTest 2100 Precision Coating Thickness Gauge is widely used in automotive, shipbuilding, aviation and machinery manufacturing industries, first-class government inspection agencies and electroplating industries.

Features

1. It can be equipped with all probes(sold separately)

2. It can be connected to MinPrint and PC through RS-232 interface (sold separately)

3. It can be calibrated with 1 or 2 standard foils

Display diagram

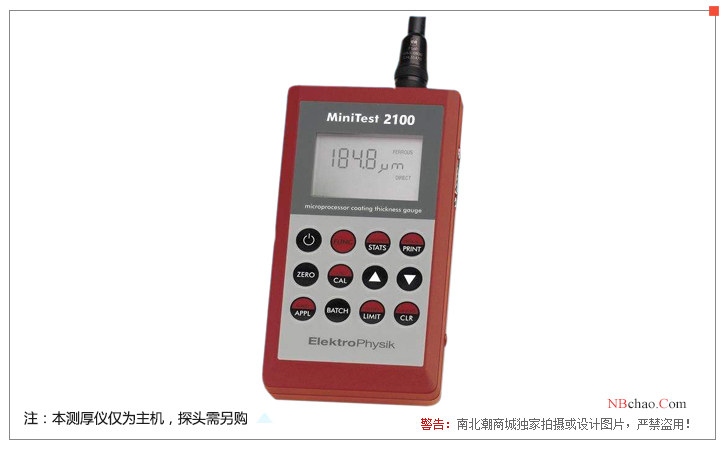

Illustration of the EPK MiniTest 2100 Precision Coated Thickness Gauge

Comparison of the features of Minitest 4100-3100-2100-1100 series hosts

Comparison of the features of Minitest 4100-3100-2100-1100 series hosts
