Germany EPK MiniTest 735 FN5 dual-use Film thickness meter thickness measurement 0~5000μm/0~2500μm

German EPK MiniTest 735 dual-use Film thickness meter external FN 5 probe, can simultaneously measurement of iron-based coatings and non-iron-based coatings, thickness measurement range of 0~5000 μm (F)/0~2500 μm (N), MiniTest 735 dual-use Film thickness meter minimum measurement area is 5mm diameter, with limit monitoring function, can use continuous Measurement mode.
Contact
Details SPEC VIDEO CAT OI

ElektroPhysik MiniTest 735 FN 5 Coating Thickness GaugeSPEC

ElektroPhysik MiniTest 735 FN 5 Coating Thickness GaugeDetails

ElektroPhysik MiniTest 735 FN 5 Coating Thickness GaugePacking list

SKU
NB012427
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~5000μm(F)/0~2500μm(N)
margin of error
±0.75%
Minimum measurement surface
10mm
probe
Line probe
Calibrated Certificate
Manufacturer Certificate
Calibrated mode
Factory calibrated, zero calibrated, 2 point calibrated, 3 point calibrated, rough Calibration method "rough"
Unit display
μm/mm/cm/mils/inch/thou
statistical function
Number of readings, MIN Minimum, MAX Maximum, mean, standard deviation, coefficient of variation, single-valued statistics, chunk statistics (conforming to specifications/free configuration)
Interface
USB、Bluetooth
Data storage
100000 Measured values
Power Supply
2 AA (AA) batteries; optional rechargeable nickel-metal hydride battery, AA/HR6 type. Battery or rechargeable battery settings are optional to match Rated Voltage.
Standards
DIN EN ISO 1461、DIN EN ISO 2064、DIN EN ISO 2178、DIN EN ISO 2360
system language
20 languages
Display screen
LCD screen
Operating temperature
-10~60℃
supporting software
Yes.
Weight
210g
Dimension
157*75.5*49mm
Storage temperature
-20~70℃
Calibrate to international standards and norms
ISO international standards organization, SSPC American protective coatings association, "Swedish" Sweden, "Australian" Australia
limit monitoring
Output visual and auditory signals
Measurement speed
70 readings per minute in single-value mode; 20 readings per second in continuous mode
continuous mode
For quickly identifying thickness changes
Standards
DIN EN ISO 2808、DIN EN ISO 3882、ISO 19840、ASTM B 244、ASTM B 499、ASTM D 7091、ASTM E 376、AS 3894.3、SS 184160、SSPC-PA 2
MiniTest 735 FN 5
Coating Thickness Gauge

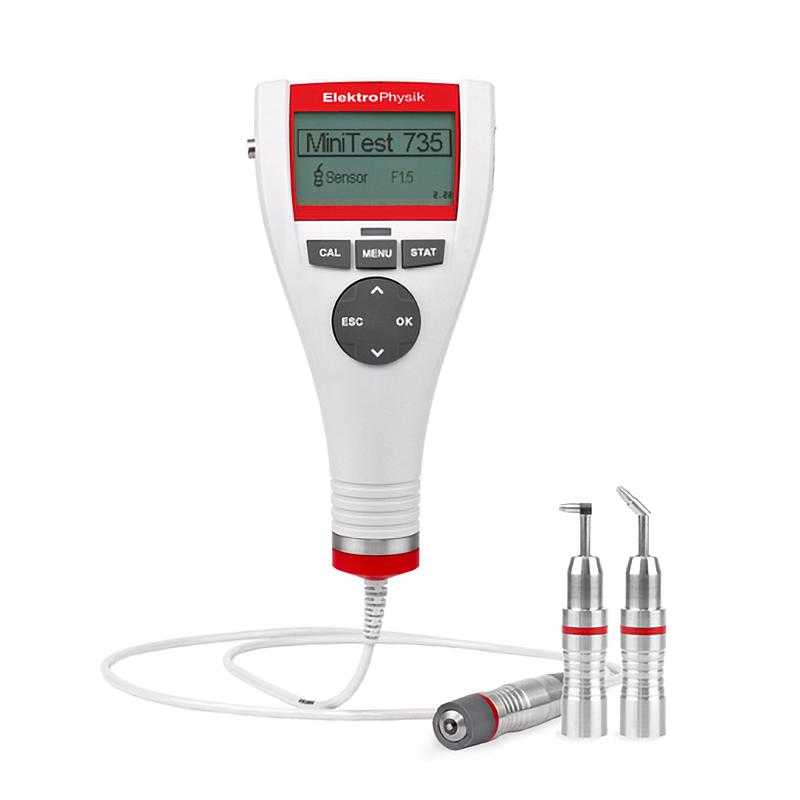

Germany EPK MiniTest 735 FN5 dual-use Film thickness meter thickness measurement 0~5000μm/0~2500μm Picture

Introduction

The EPK MiniTest 735 coating Thickness Gauge combines accuracy and flexibility. Equipped with a Bluetooth interface to wirelessly transfer data to a computer, tablet or smartphone.The MiniTest 735 coating Thickness Gauge uses an external probe for high accuracy and ease of measurement in hard-to-reach places.

Product Applications

● Non-magnetic coatings such as paints, varnishes, magnetic paints, chrome and galvanizing

● Steel substrates or insulating coatings such as paints, anodized coatings or ceramics

● Non-ferrous metal substrates copper, aluminum, die-cast zinc, copper, etc.

Features

○ Data can be transferred to a computer or tablet through the Bluetooth interfaceComputeror mobile client

○ Large memory with up to 100,000 readings

○ Simple, menu-based operation in up to 20 languages

○ Improve accuracy with a variety of calibration modes

○ Perfect compensation after temperature changes covers the entire measuring range

○ Very good accuracy and repeatability depend on SIDSP technology

○ Limit value monitoring, user-adjustable compensation and correction values for rough substrate materials

○ Continuous measurement mode

○ Free software update downloads via the Internet for the main unit and probes.

Display diagram

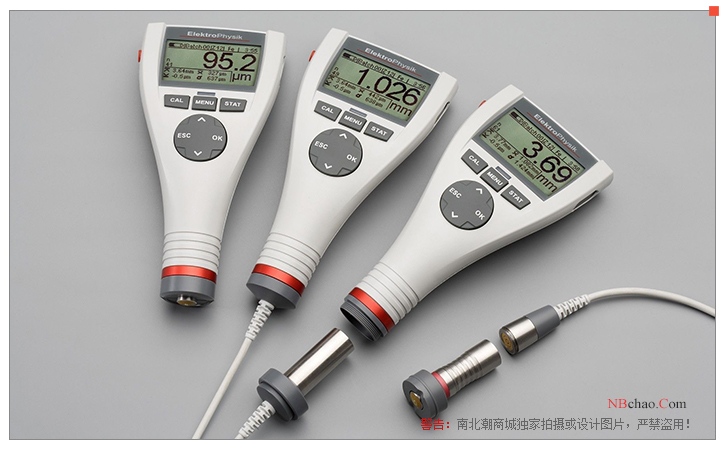

German EPK MiniTest 735 dual-purpose Film Thickness Gauge display drawing

The MiniTest 735 Coating Thickness Gauge is available as an optional probe

The MiniTest 725/735/745 Coating Thickness Gauge is available as an optional probe


FAQ
QDo you have the Coating thickness gauge required by ASTMB244?
A This MiniTest 735 FN 5 Coating thickness gauge will do.
QCan the anodic oxidation film be measured with this MiniTest735?
A Hello, yes, the MiniTest735 Coating thickness gauge needs to select the corresponding probe according to the substrate you tested and the film thickness of the coating.
QMiniTest 735 FN 5 Coating thickness gauge can measure anti-corrosion coatings, thicker?
A Yes, this is a magnetic Induction + eddy Current Coating thickness gauge. The range is 5mm.
