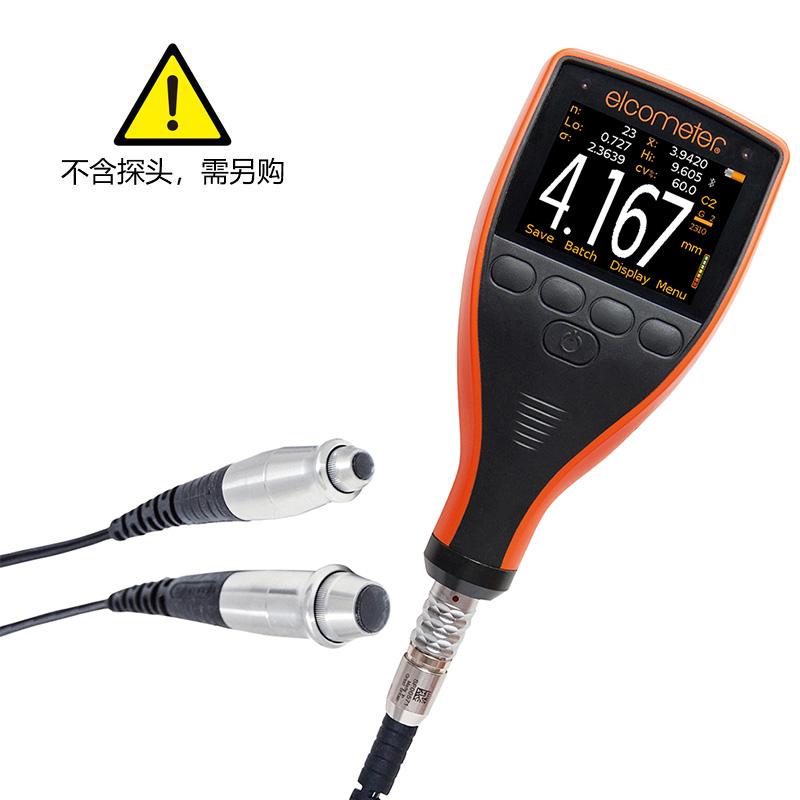

Elcometer 500 A500C-T concrete Coating Thickness Gauge

SE
UK ELCOMETER A500C-T concrete Coating Thickness Gauge is an Elcometer 500 series advanced coating Film Thickness Gauge, without a probe, the maximum paint thickness can reach 9mm, A500C-T concrete Coating Thickness Gauge has three calibrated modes, can communicate via Bluetooth.
Model：
Contact
Details SPEC CAT OI
Similar products

Elcometer A500C-T Coating Thickness GaugeSPEC

Elcometer A500C-T Coating Thickness GaugeDetails

Elcometer A500C-T Coating Thickness GaugePacking list

SKU
NB012582
Measurement range
Determined by the probe
margin of error
±2%
Resolution
: 10μm, 0.01mm, 1mil 0.001 ": 1μm, 0.001mm, 0.1mil 0.0001"
probe
Line probe
Calibrated Certificate
Yes.
Unit display
μm/mm/mils/inch
statistical function
Number of readings, average value, standard deviation, maximum reading, minimum reading, coefficient of variation
Interface
USB, Bluetooth
Power Supply
2 * AA batteries (rechargeable batteries can also be used)
Display screen
LCD screen
Operating temperature
-10~50℃
Protection level
IP54
supporting software
none
Machine Weight
161G (including battery)
Machine size
141 * 73 * 37Mm (5.55 * 2.87 * 1.46 ") - Sensors not included
A500C-T
Coating Thickness Gauge
Elcometer 500 A500C-T concrete Coating Thickness Gauge Picture

Introduction

The Elcometer 500 Coating Thickness Gauge accurately measures coating thickness on concrete and other similar substrates* – non-destructively.

The Elcometer 500 Coating Thickness Gauge measures repeatable and reproducible dry film thickness on concrete for coatings up to 9mm thick‡ - without damaging the coating. With 60 readings per minute in standard mode, and over 140 readings per minute in scan mode - the Elcometer 500 Coating Thickness Gauge can significantly reduce inspection times.

With smart, ergonomic probe options designed for continuous use and field-replaceable probe tips, you can perform inspections all day every day. The built-in signal strength indicator of the Elcometer 500 coating in concrete meter prevents false or incorrect readings because the meter only displays the coating thickness measurement if the signal strength indicator turns green.

Rugged, ergonomic, sealed against dust and water, and equivalent to a rating of IP54, the Elcometer 500 Dry Film Thickness Gauge is designed to perform in harsh environments.

Incredibly easy to use, the Elcometer 500 coating Thickness Gauge for concrete can be used in compliance with ASTM D6132, SSPC PA9 and ISO 2808 Method 10.

Since inspectors can spend up to 30% of their work week generating reports, ElcoMaster® saves time and money, producing professional, custom reports in seconds - even in the field.

  Elcometer 500 Thickness Gauge

The main function

● Fast

Measuring over 60 readings per minute in standard mode and over 140 readings per minute in scan mode, the Elcometer 500 Coating Thickness Gauge can significantly reduce inspection time.

●  Reliable

If the signal strength indicator light turns green, the Elcometer 500 will only display a coating thickness reading, preventing false or incorrect readings.

If the coating thickness is outside the measurement range, the Elcometer 500 tells you on the display.

●  Smart

Elcometer 500 measurement probes are supplied with user replaceable probe tips. If the end is damaged or worn out during , you can replace it and continue.

The instrument will even notify you when you need to replace the probe tip, maximizing inspection time.

●  Easy to use

There is no need to set gates, range values ​​or know the thickness of the coating, simply select the coating material and start measuring.

●  Ergonomics

The Elcometer 500 and Smart Probes have been fully ergonomically designed for continuous use. No force is required to take a reading.

●  Sturdy

Rugged, ergonomic, sealed against dust and water, and equivalent to an IP54 rating,  the Elcometer 500 is designed for use in harsh environments, making it a perfect instrument for use in the laboratory or on the job site.

British Elcometer 500 coating Thickness Gauge 1British Elcometer 500 coating Thickness Gauge 2British Elcometer 500 coating Thickness Gauge 3

Three calibration modes

The Elcometer 500 user calibration adjustment procedures are fully traceable to national and international standards.


1. Coating material library

The Elcometer 500's professional measurement technology means you no longer need to know how thick the paint is, or set a measurement gate before taking a reading. Just turn on the instrument, select a coating from the calibration library and take a reading - it's that easy.


2. Material thickness calibration

To obtain great measurement accuracy, the Elcometer 500 can be calibrated using the known thickness of the coating being measured. If a known thickness sample is not available, the Elcometer 500 Coating Calibration Mold (CCM) can be used to create a known coating thickness, traceable to national and international standards.


3. Sound speed calibration

The Elcometer 500 can be calibrated by inputting the speed of sound from the paint manufacturer's product data sheet.


FAQ
QA layer of steel wire is wrapped around the outside of the concrete, the thickness of the steel wire layer is about 7mm, and the outside of the steel wire is sprayed with a layer of mortar. The thickness of the mortar pump is about 30mm. Is it okay to measure the thickness of this anti-corrosion layer by lame plating on the outside of the mortar?
A Yes, it can be measured with the host of A500C-T and the probe of T500-C2, and there is software to read the data.
QCan this one measure the Coating thickness on concrete?
A Yes!
QDoes this Elcometer A500C-T thickness gauge have Bluetooth capability?
A Hello, yes.
QI want to do a test about the ASTMB244 standard. Is this Coating thickness gauge okay?
A Sure
