Japan

Japan KETT LE-373 magnetic Induction film thickness meter 2500 μm large range, with LEP-J probe

SE
LE-373 electromagnetic film thickness meter is an upgraded version of LE-370: the upgraded part is 3000 for Data storage, which is increased to 39,000; the data transmission speed is faster; the management software is upgraded.
Model：
Contact
Details SPEC OI
Similar products

KETT LE-373 Film thickness meterSPEC

KETT LE-373 Film thickness meterDetails

KETT LE-373 Film thickness meterPacking list

SKU
NB012671
Measurement principle
Magnetic Induction
Measurement range
0~2500μm
margin of error
<50μm±1μm ≥50μm<1000μm±2% ≥1000μm±3%
Resolution
0.1μm|1μm
probe
Line probe
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
Power Supply
1.5V
Display screen
Digital LCD display (backlight can be self-selected switch)
Interface
USB、RS-232C
Machine Weight
0.34kg
Data storage
About 39,000 with a MIN Minimum of 0.1 μm
Interface
Computer (USB) output or printer (RS-232C)
Machine size
75*145*31mm
Measurement area
Φ5㎜
Operating temperature
0~40℃
Battery life
100h
Power Consumption
80mW (without backlight)
storage channel
50
probe
Touch (LEP-J) or (LHP-J)
LE-373
Film thickness meter
Japan KETT LE-373 magnetic Induction film thickness meter 2500 μm large range, with LEP-J probe Picture



    LE-373 electromagnetic Film Thickness Gauge uses the principle of electromagnetic induction testing to non-destructively test non-magnetic coatings (such as paint, plastic, resin, rubber, enamel, zinc, chromium, tin, copper) on magnetic substrates (iron or steel) , aluminum, other) thickness. Test data can be imported into a computer or printed directly via an external printer.

The LE-373 electromagnetic Film Thickness Gauge is an upgraded version of the LE-370: the upgraded part is that the data storage capacity is increased from 3000 to 39000; the data transmission speed is faster; the management software is upgraded.

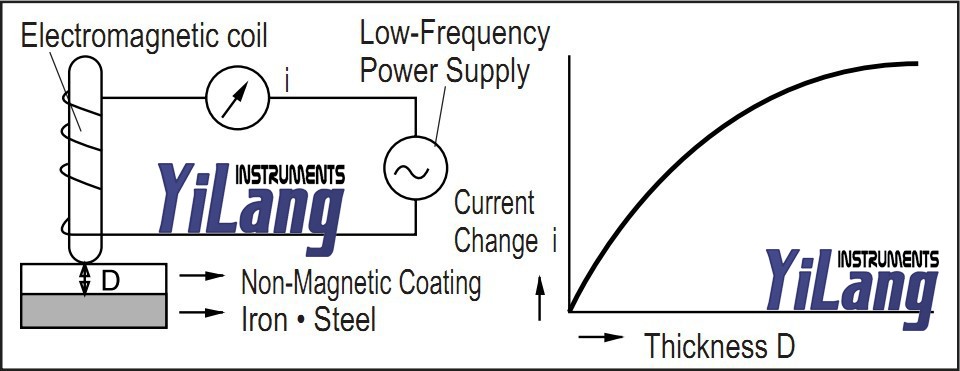

Test schematic
