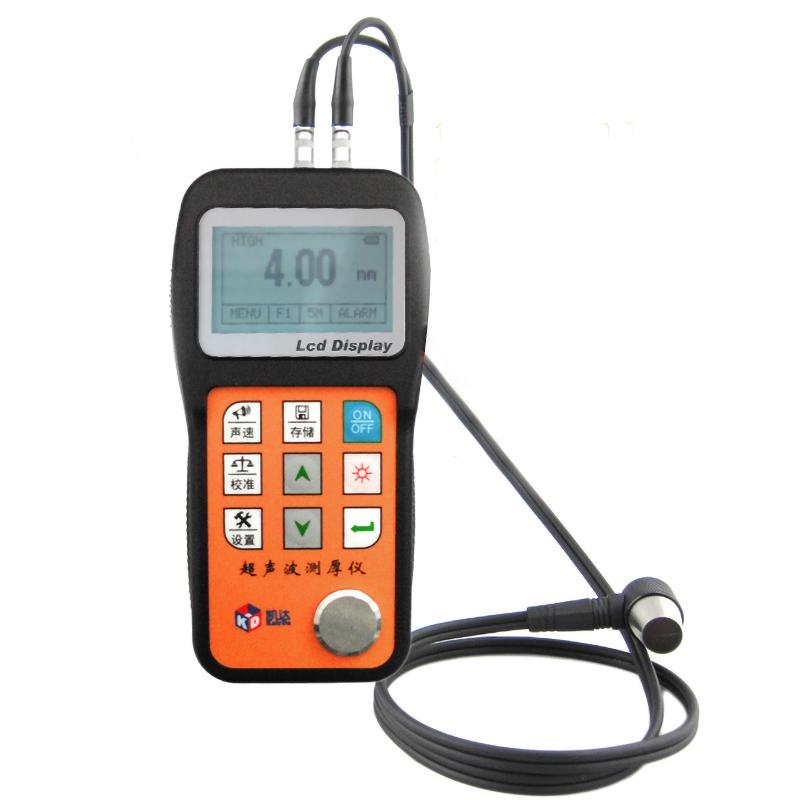

KAIRDA NDT320 Ultrasonic Thickness Gauge thickness measurement for hulls, pipes, high Voltage vessels, boilers, plastics, etc

NDT320

Ultrasonic Thickness Gauge

Measurement range 0.75~ 300mm, probe Frequency: 5MHz, measurement error +/- (1% H + 0.04) mm, Display resolution 0.1mm /0.01mm optional, can be equipped with different Frequency he wafer size bimorph probe measurement of different thickness range of materials, with coupling status prompt function, can measure the known thickness of Speed of sound, improve measurement Accuracy.

Introduction

KAIDA NDT320 Ultrasonic Thickness Gauge adds communication function on the basis of standard NDT310 Ultrasonic Thickness Gauge. It can exchange data by connecting to PC and has printing function. NDT320 Ultrasonic Thickness Gauge can also be equipped with dual crystal probes of different frequencies and chip sizes to measure materials with different thickness ranges. It has a coupling status prompt function, which can reversely measure the sound velocity of a known thickness and improve the measurement accuracy.

Features

1. It has the function of prompting the coupling status.

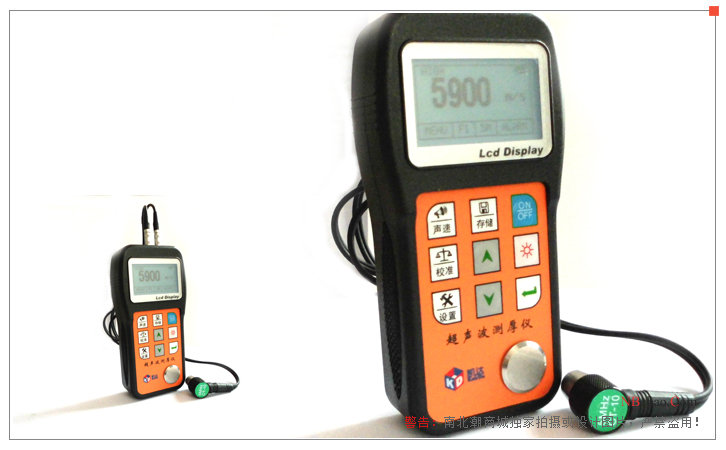

2. NDT320 ultrasonic Thickness Gauge has LED backlight display function, which is convenient for use in dimly lit environments.

3. There is a remaining power indicator function, which can display the remaining battery power in real time.

4. It can be equipped with a variety of dual-crystal probes with different frequencies and different chip sizes to measure thicknesses in different ranges.

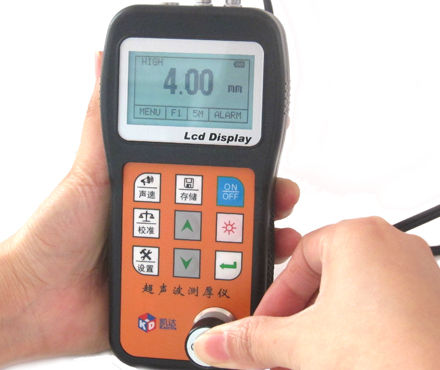

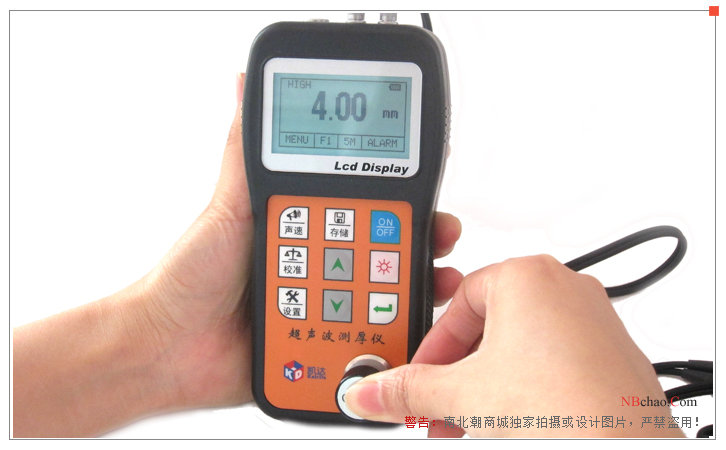

5. NDT320 ultrasonic Thickness Gauge has probe zero point calibration and two point calibration functions, which can automatically correct system errors.

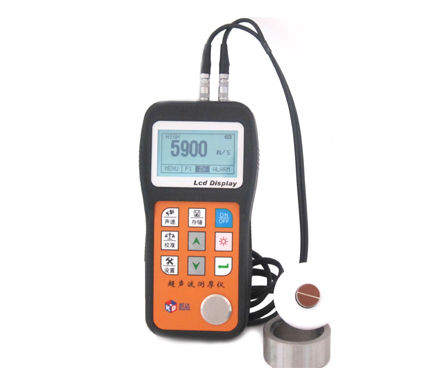

6. Knowing the thickness can reverse the sound velocity to improve the measurement accuracy.

7. It has power-saving functions such as automatic sleep and automatic shutdown.

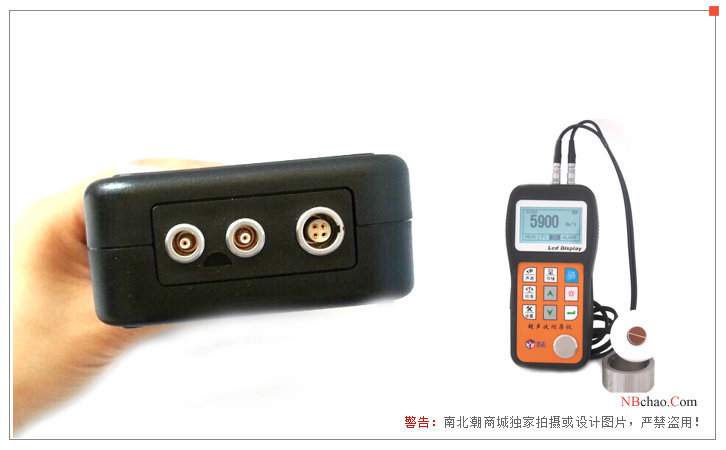

8. Background data processing function; PC communication function; printing function.

9. Small size, portable, high measurement reliability, suitable for harsh operating environments, resistant to vibration, shock and electromagnetic interference.

Application

NDT320 Ultrasonic Thickness Gauge is suitable for measuring the wall thickness of high-pressure vessels, ship hulls, oil and gas pipelines, boilers, etc. Material.

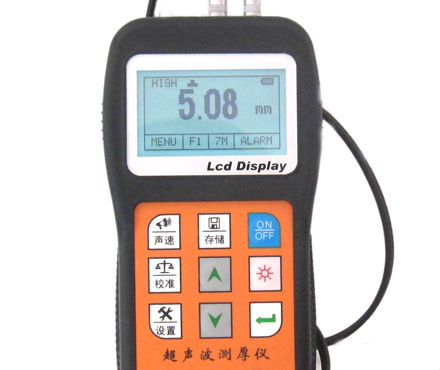

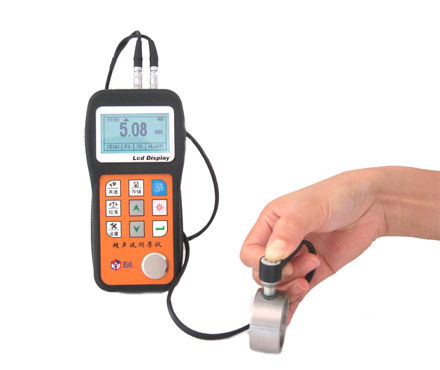

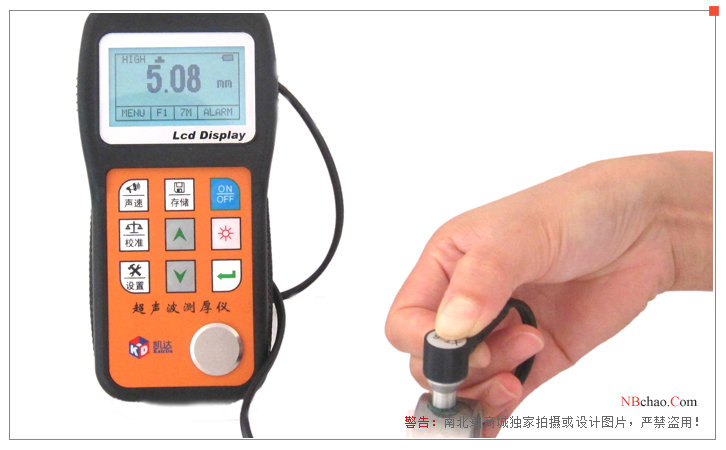

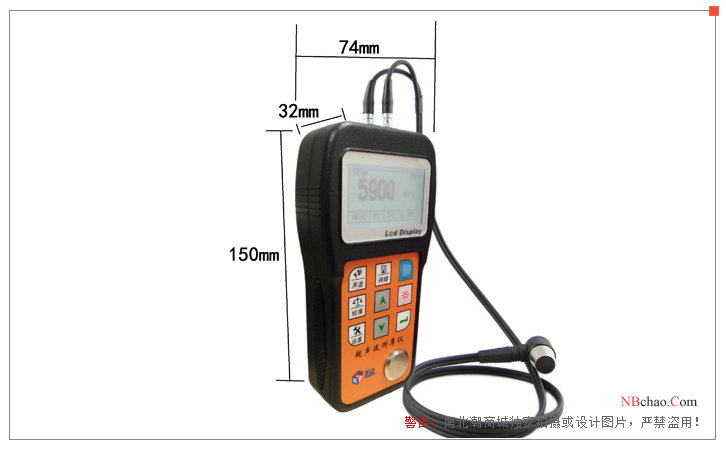

Pictures

Packing list：Host x1, probe x1, 4.0 mm steel calibrating block x1, coupler x1, battery x2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
