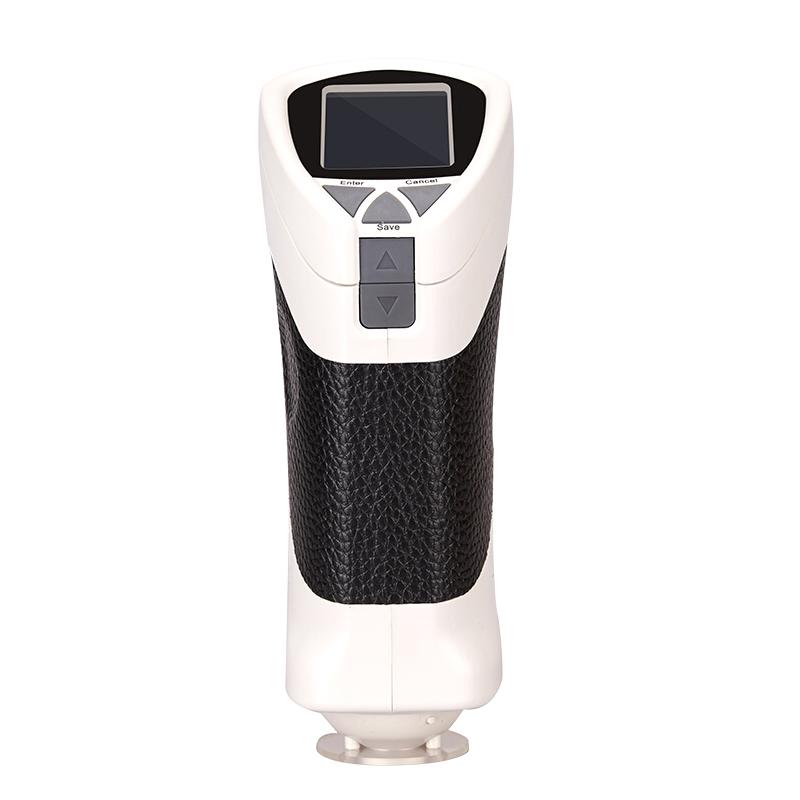

CHNSPEC CS-288 Spectroscopic Colorimeter Formula Guide Library construction, camera view, display measurement area Light spectrum data, hand input standard sample APP

CS-288

Spectroscopic Colorimeter

11Mm measurement diameter, full-band balanced LED Light source, support Formula Guide library building, camera framing, hand input standard sample, Bluetooth connection APP software, over Measurement, can not be equipped with color scheme system, does not contain UV Light source.

The Spectrophotometer CS-288 uses the principle of spectrophototry to measure color difference, which is widely used in the color management field of plastics, printing, paint and ink, textile, printing and dyeing clothing and other industries, and measures the color value of the sample L*a*b, L*c*h, and the color difference △E and △Lab value of the sample.

1. Instrument introduction

 1. Spectrophotometer, with high accuracy Colorimeter

 2. Adopt the spectral measurement principle to ensure accurate measurement accuracy

 3. Technology ensures the stability of measurement

 4. Ensure that it has passed the national metrology certification;

 5. Ergonomic design

    The waist of the instrument conforms to the curvature of the human palm, which can be used for long-term detection, and the high-hand leather design increases friction and prevents fingers from slipping.

 6. Large-capacity data storage;

    The instrument can store 100 sets of standard samples, and 200 sets of samples can be maintained under each standard sample.

Second, technical characteristics

1. CLEDs light source - full-band balanced LED light source (patent number: ZL2013107548347)

    The full-band balanced LED light source ensures sufficient spectral distribution in the visible range, avoids the spectral loss of white LED in a specific band, and ensures the accuracy of the instrument measurement speed and measurement results, the research results were published in the domestic (CN) SCI-indexed optical journal "Chinese Opics letters"

2. ETC real-time calibration technology (patent number: ZL20130373360.1)

The current test instruments are equipped with an external standard whiteboard as a measurement reference. When the whiteboard is defacedAfter that, the measurement accuracy of the instrument cannot be guaranteed. In the color Spectrophotometer products, the innovative ETC real-time calibration technology (Every Test Calibration) is adopted, and the standard whiteboard is set inside the optical system, and it has reliable accuracy and repeatability in each test.

3. Automatic gloss compensation technology (Patent No.: ZL201310511357.1)

    The different gloss of the material surface and the illumination observation conditions of the color measuring instrument can have a great impact on the color measurement. Color spectrum technology broke the blockade of foreign science and technology, and proposed automatic gloss compensation technology earlier in the industry to ensure the accuracy of color measurement data of different gloss surfaces, and the research results were published in the foreign optical SCI journal "OPTIK"

4. Innovative spectroscopic technology SCS optical engine (patent number: ZL201210337619.2)

    Colorspectrum Technology uses the innovative single-grating dual-beam splitting system - SCS optical engine to create the highest measurement repeatability index in the handheld Spectrophotometer industry, ensuring accurate measurement of the color of the material surface.

Application

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
