CHNSPEC CS-700 Haze meter Glass plastic LCD panel transmittance color difference color haze meter

SE
Color, haze, Light spectrum transmittance and total transmittance measurement solutions for transparent and translucent materials such as plastic, film, Glass, LCD panel and touch screen.
$7191.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

CHNSpec CS-700 haze meterSPEC

CHNSpec CS-700 haze meterDetails

CHNSpec CS-700 haze meterPacking list

SKU
NB012695
Light source
Haze/Transmittance: CIE-A, CIE-C, CIE-D65 Chroma Indicators: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84
follow the standard
ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105 and other standards
Measurement parameters
Haze (HAZE), Transmittance (T), Light spectrum transmittance, CIE Lab, LCh, CIE Luv, XYZ, Yxy, etc
Light spectrum Response
CIE Light spectrum function Y/V (λ)
Wavelength range
400-700nm
wavelength interval
10nm
optical path structure
0/d
Illumination and sample aperture size
16.5mm/21mm
range
0-100%
Resolution
0.01 unit
Repeatability
Haze < 10%, Repeatability ≤ 0.05%; Haze ≥ 10%, Repeatability ≤ 0.1%; light transmitance ≤ 0.1%
Sample size
Thickness ≤ 145mm
show
7-Inch capacitive touchscreen
store data
20,000 values
interface
USB port
Power Supply
220V (with its own power cord)
Operating temperature
0~45 ℃, Relative Humidity 80% or less (at 35 ℃), no condensation
Storage temperature
-25 ℃~ 55 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation
Standard
PC management software (Haze QC)
optional
Measurement fixture, haze standard sheet, 5mm/7mm/10mm diameter plate, 40 * 10 Colorimetric dish
CS-700
haze meter
Color, haze, Light spectrum transmittance and total transmittance measurement solutions for transparent and translucent materials such as plastic, film, Glass, LCD panel and touch screen.
CHNSPEC CS-700 Haze meter Glass plastic LCD panel transmittance color difference color haze meter Picture

1. Instrument introduction

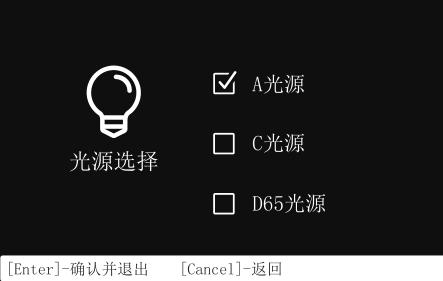

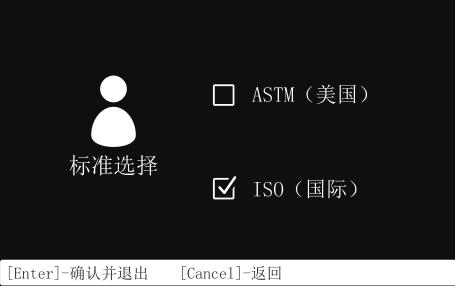

1. Follow ASTM and ISO haze measurement standards at the same time, provide A, C, D65 measurement light sources for haze measurement




2. It can realize the compensation measurement of transmittance and provide more accurate test results of transmittance

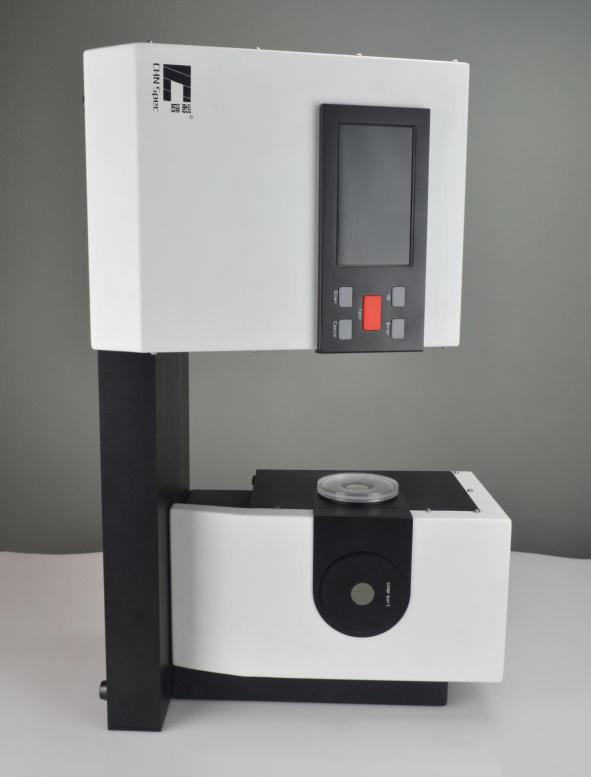

3. The open measurement area frees the limitation of the sample size, and you can even measure vertically

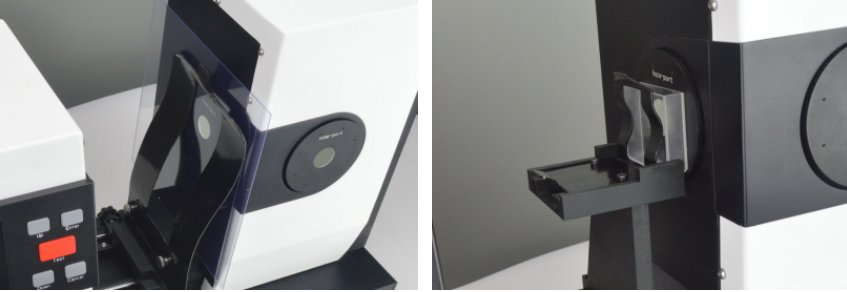

4. Provide a wealth of fixtures to meet the measurement needs of sheets and liquids in different forms

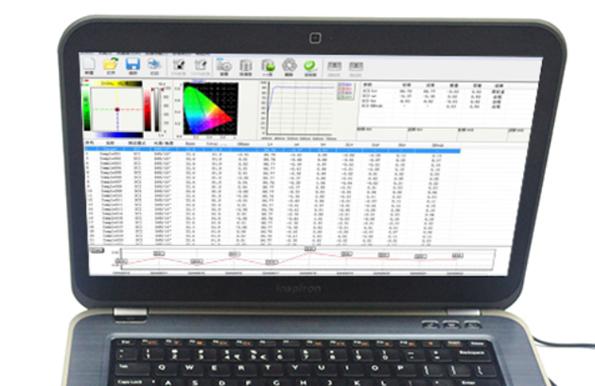

5. Provide haze and transmittance measurement and analysis software to meet the user's analysis and management of test data can be stored

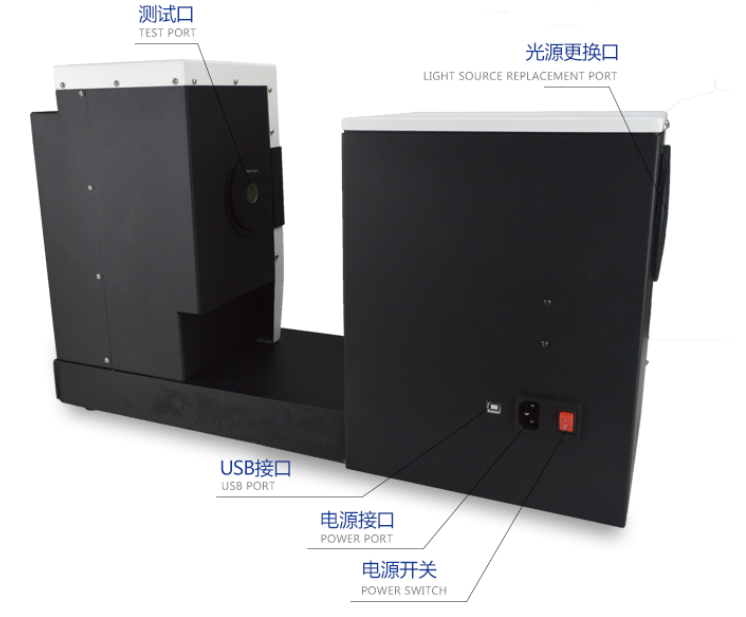

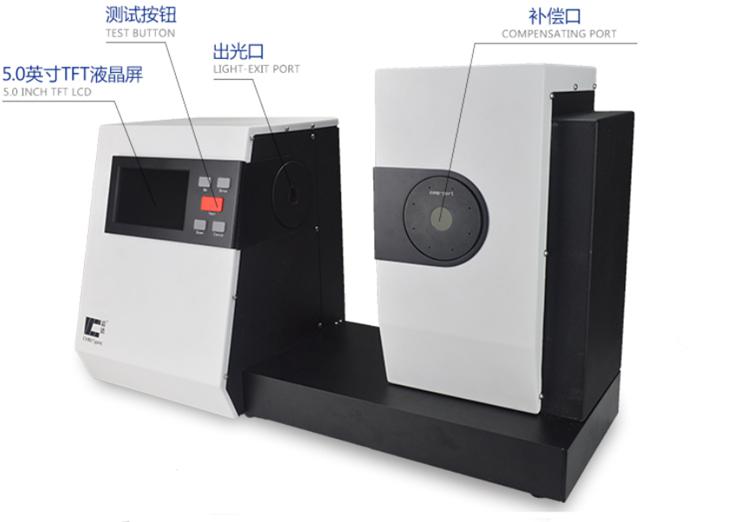

2. Display of instrument details

FAQ
QHaze meter can detect infrared light? 940nm haze
A The wavelength is 400-700nm, and it cannot be 940.
QHaze meters can detect infrared light?
A No, only visible light can be measured at 400-700nm.
QCan this see Light spectrum Linear dispersion?
A Yes, Light spectrum, haze, transmittance are OK.
QIs there an HG/T4009 standard fog meter?
A This CHNSPEC fog meter is fine!
