CHNSPEC CS-300S Microporous Glossmeter 60 °

CS-300S

Microporous Glossmeter

60 ° general single angle, range 600GU, 2 * 3mm micropores; using dual optical path technology, Japanese Sensors, American high-end op amp chip and processor chip; standard PC data management software; 3000mAH large-capacity rechargeable lithium battery, Measurement time is less than 1s.

Introduction

1. Extremely small aperture measurement

There are only unexpected shapes, and there is no unmeasurable luster. The measuring diameter of 2*3mm is suitable for specular gloss measurement of curved surfaces, irregular objects and flat surfaces.

2. The reproducibility has reached the international professional level

The optimized design of the light source ensures the stability of the gloss data from the very starting point of measurement;

Dual-optical path technology, Japanese sensors, American high-end op amp chips and processor chips ensure every gloss detection.

3. The instrument has built-in different measurement modes to meet the measurement needs of different customers

The instrument has two measurement modes, simple and statistical, which is convenient for customers with different measurement needs.

Simple mode: Directly displays the measured gloss data

Statistical mode: Gloss comparison can be performed to analyze the gloss difference between the standard sample and the standard

4. Equipped with powerful PC data management software as standard

The measurement data can be transferred to the data management software for further analysis and printing of test reports via USB cable and PC transfer.

5. Large power - 3000mAH large-capacity rechargeable lithium battery is adopted

It achieves both a slim body and a large power, and can be continuously measured 25,000 times, so that you can worry about power and work without distractions.

Application

Plating: chrome-plated pipes, car buttons, lock parts, etc.;

Metal: metal buttons, cutlery, coins, etc.;

Plastics: keyboard keys, plastic lampshades, children's toys;

Others: banknote security, jewelry, teeth.

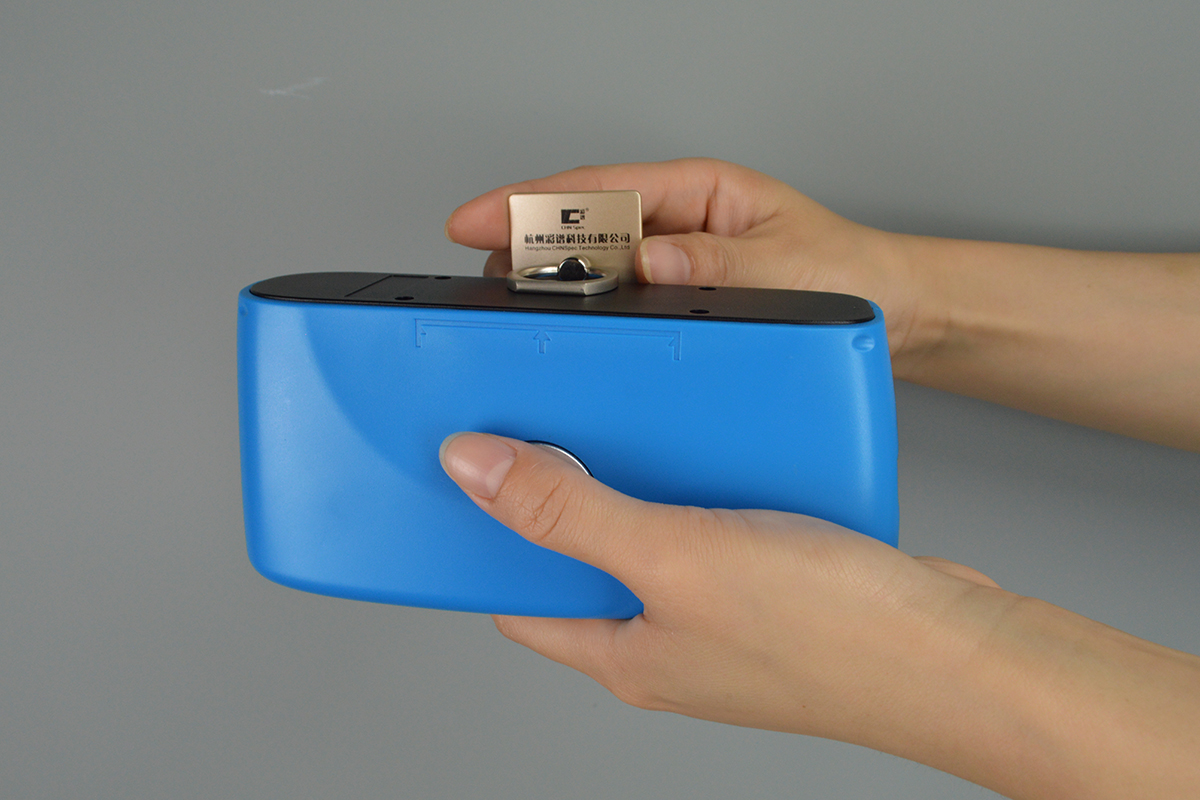

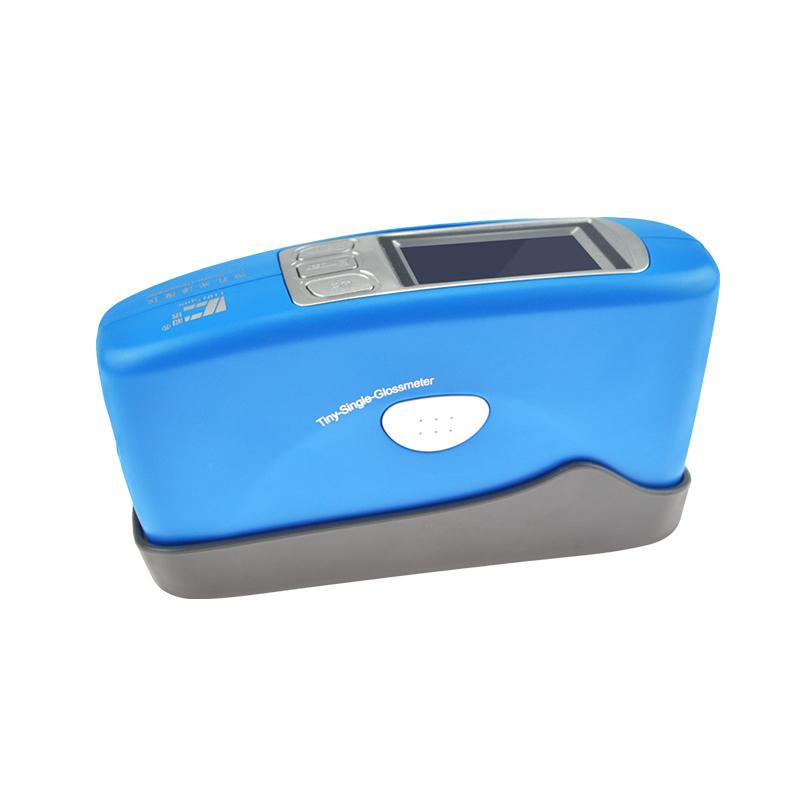

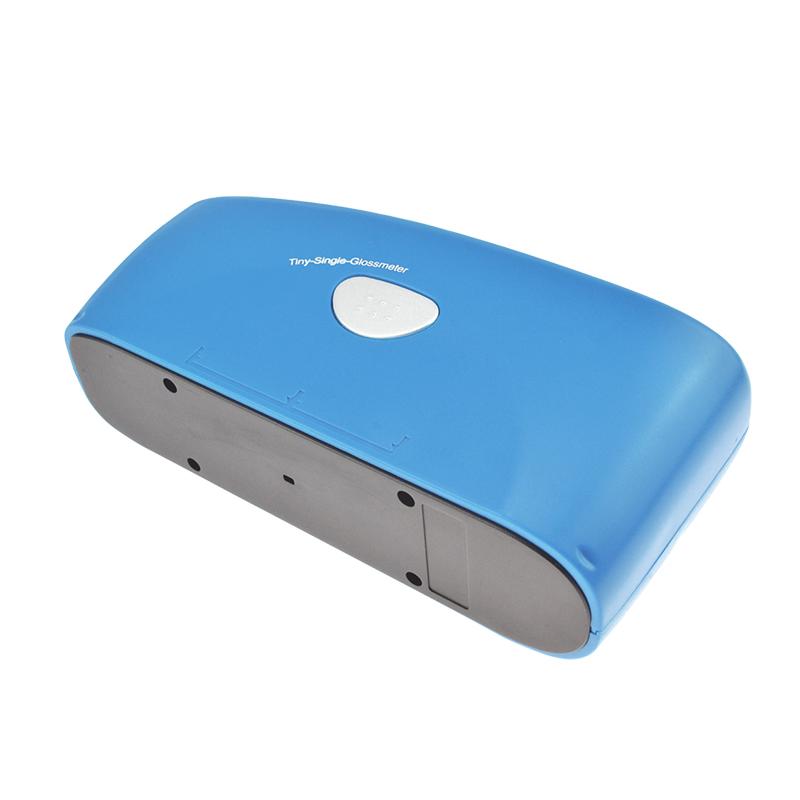

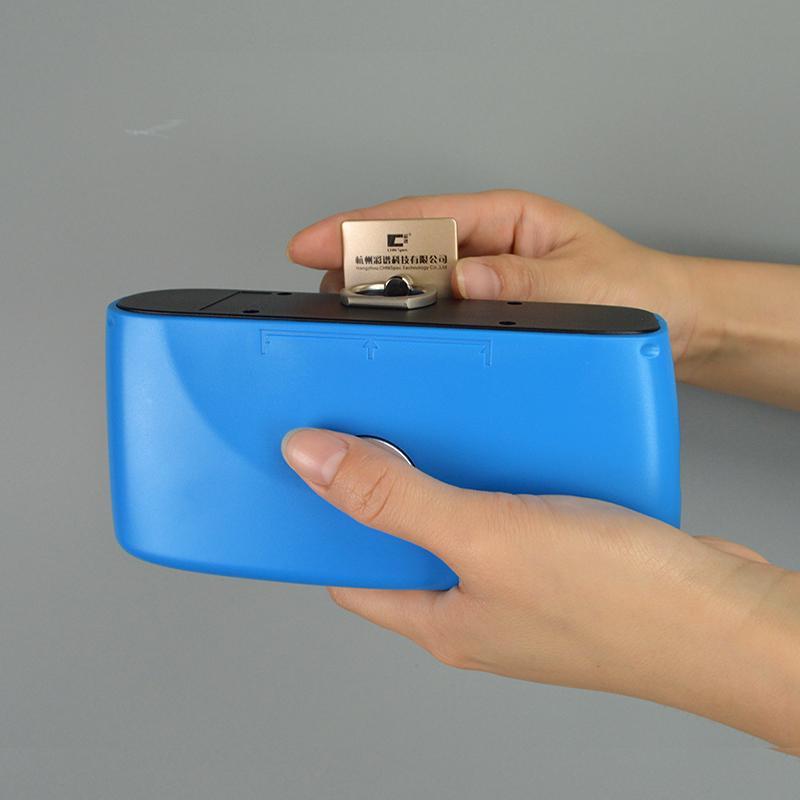

Product display

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
