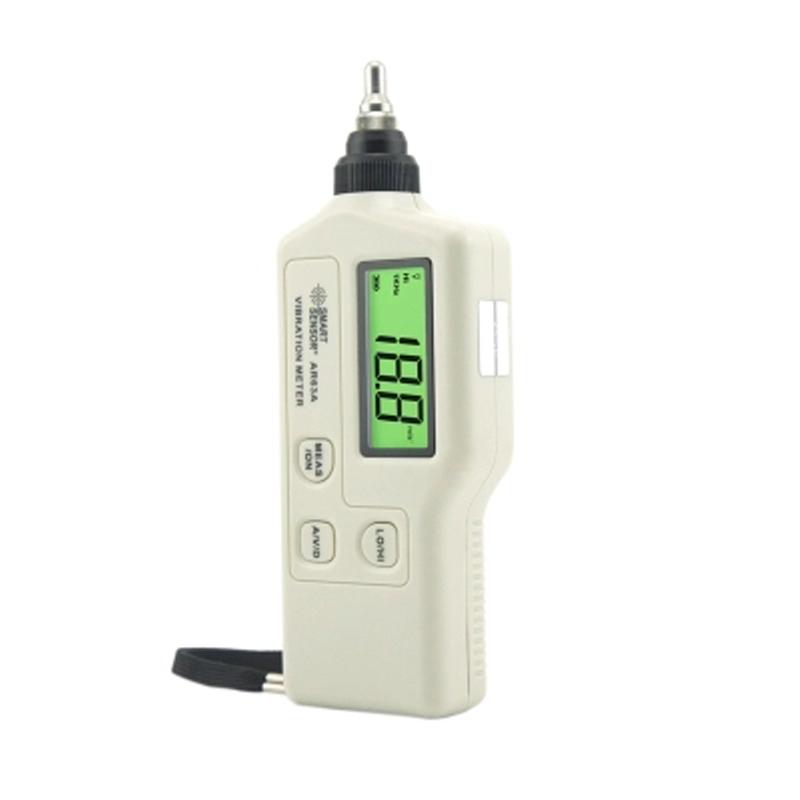

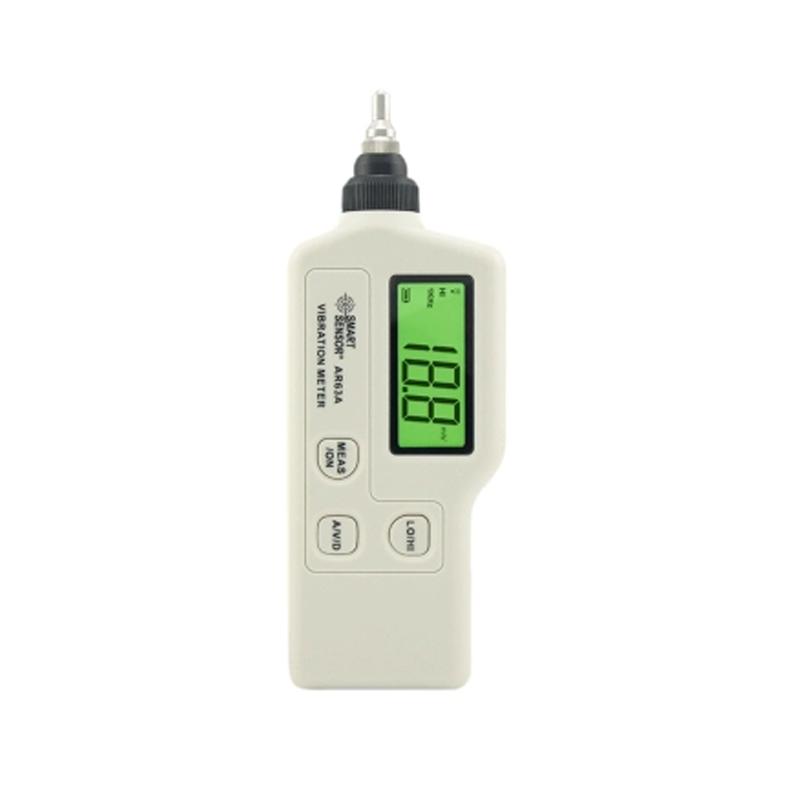

SMART SENSOR AR63A Portable VibratIon Meter Acceleration 0.1~ 199.9m/s2
SECeramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
$266.00/set
PromotionLoading...
Coupon
Model：
AR63A
Similar products
SMART SENSOR AR63A VibratIon MeterSPEC
SMART SENSOR AR63A VibratIon MeterDetails
SMART SENSOR AR63A VibratIon MeterPacking list
- SKU
- NB012769
- Measurement mode
- Piezoelectric ceramics (shear type)
- Acceleration Measurement Range
- 0.1~199.9m/s²
- Speed Measurement Range
- 0.1~199.9mm/s
- Displacement Measurement Range
- 0.001~1.999mm
- Acceleration frequency range
- 10Hz~1KHz(LO)，1KHz~15KHz(HI)
- Speed frequency range
- 10Hz~1KHz (LO)
- Displacement frequency range
- 10Hz~1KHz (LO)
- Measurement error
- ±5%Hz±2digits
- Data output
- Peak AC signal output (full scale display)
- monitor
- 3.5 digits LCD display
- Automatic range switching
- Yes.
- Backlight display function
- Yes.
- Automatic shutdown function
- Yes.
- Operating temperature
- 0~40℃
- Power
- 9V battery
- Weight
- 147g
- Dimensions
- 67*30*183mm
- Encasement mode
- Aluminum Encasement
- Standard outer box Capacity
- 12PCS
- Standard outer box size
- 52*43*32.5cm
- Standard Gross Weight
- 11.93KG
AR63A
VibratIon Meter
Ceramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
FAQ
QCan this measure displacement, amplitude and Acceleration?
A
OK
Standard
