TIMES TT230 eddy current Thickness Gauge Measurement range: 0~1250μm

TIMES TT230 split eddy current Thickness Gauge has two continuous/single Measurement modes, in line with GB/T4957-1985 standard, TT230 split eddy current Thickness Gauge can measure 0~40 microns of copper chrome plating, is an integrated Thickness Gauge.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

TIMES TT230 Coated platings Thickness GaugeSPEC

TIMES TT230 Coated platings Thickness GaugeDetails

TIMES TT230 Coated platings Thickness GaugePacking list

SKU
NB013252
Measurement principle
eddy Current
Measurement range
0~1250μm
margin of error
±3%
resolution
0.1μm
Minimum measurement surface
Φ7mm
Minimum radius of curvature
Convex 1.5mm Concave 9mm
thinnest substrate
0.5
probe
N
statistical function
Single measurement, continuous measurement
Data storage
15 Measured values
Power Supply
lithium battery
Operating temperature
0~40℃
Relative Humidity
20~90%RH
Operating Mode
Direct mode (DIRECT) and group mode (Appl)
Weight
150g
shutdown mode
automatic
TT230
Coated platings Thickness Gauge
TIMES TT230 eddy current Thickness Gauge Measurement range: 0~1250μm Picture

Introduction

TT230 Eddy Current Thickness Gauge is an ultra-small gauge that can quickly, damageless, and accurately measure the thickness of non-conductive overlays on non-magnetic metal substrates.

The TT230 Coating Thickness Gauge meets the following standards:

GB/T 4957-1985 Eddy current method

JJG 818-93

JB/T8393-1996 Magnetic and eddy current cladding Thickness Gauge

Features

  • The eddy current thickness measurement method enables non-destructive measurement of the thickness of non-conductive overlays on non-magnetic metal substrates (e.g. enamel, rubber, paint on copper, aluminum, zinc, tin, etc.)

  • Zero and two-point calibration can be performed, and the systematic error of the probe can be corrected using the basic calibration method

  • There are two measurement methods: continuous measurement method (CONTINUE) and single measurement method (SINGLE)

  • There are two ways of working: direct (DIRECT) and grouped (Appl)

  • Deletion function: Delete a single suspicious data that appears in the measurement, or delete all data in the storage area

  • THERE ARE FIVE STATISTICS: MEAN, MAXIMUM (MAX), MINIMUM (MIN), NUMBER OF TESTS (NO.), AND STANDARD DEVIATION

  • It has the function of converting rice and imperial system

  • There is a beep prompt during operation

  • It has an error prompt function

  • It has an automatic shutdown function

Product Applications

TT230 eddy current Thickness GaugeIt can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields; The small size of the instrument and the integration of the probe and the instrument make it especially suitable for on-site measurements.

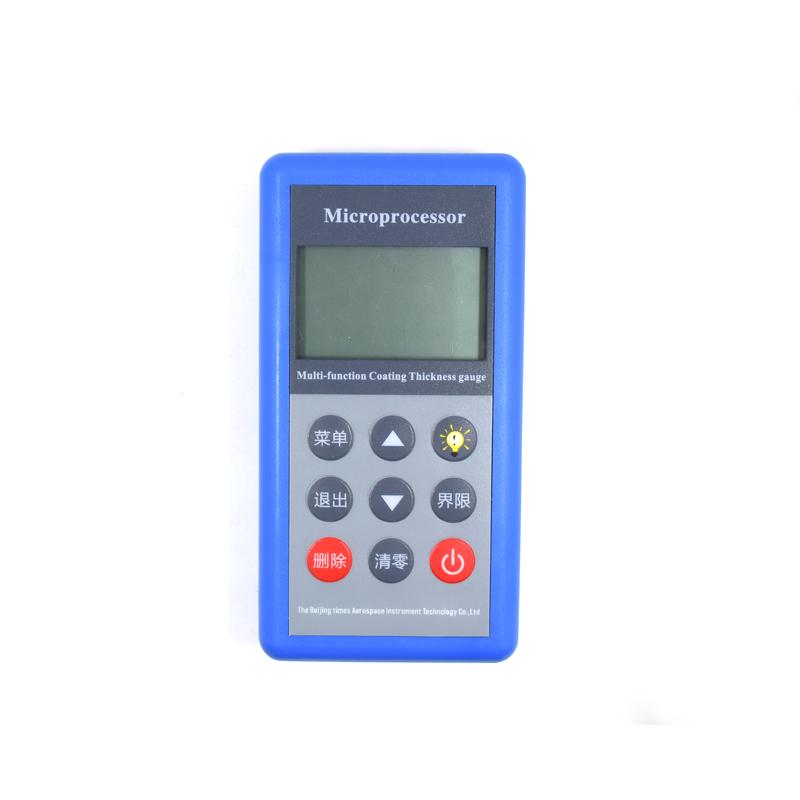

Display diagram

Times Aerospace TT230 Split Eddy Current Thickness Gauge Display

FAQ
QCan this coated platings thickness gauge be applied to JJG818?
A OK
QCan the TT230 Thickness Gauge be used on aluminum substrates to test Film thickness?
A Hello, it's OK.
QThis TT230 Coating thickness gauge tests the chrome film thickness on copper pieces.
A Hello, it is 0~ 40 microns.

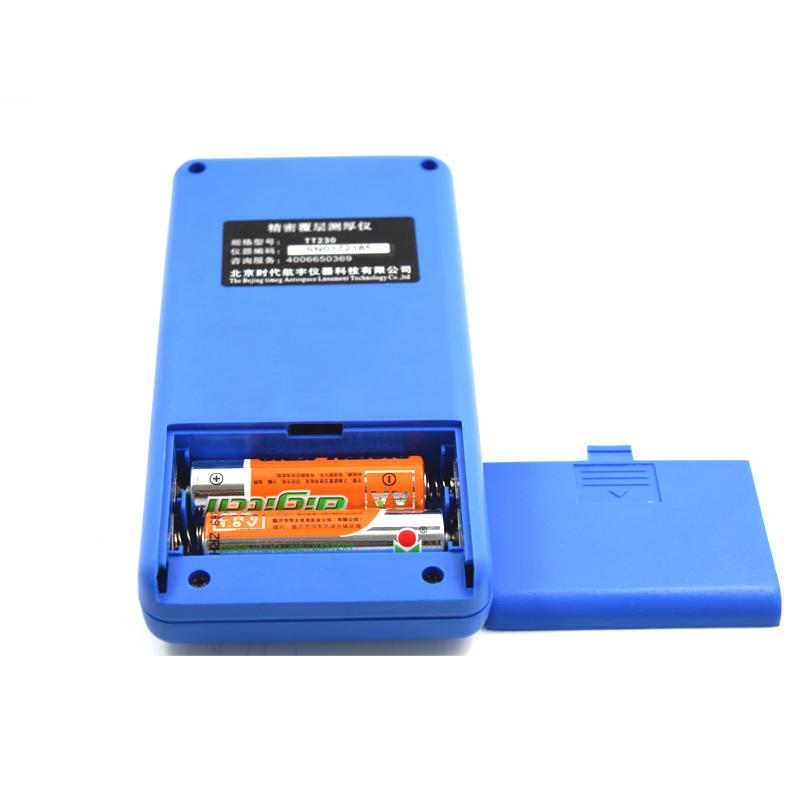

QIs the Times Hangyu TT230 Coating thickness gauge rechargeable or dry battery?
A Hello, the power supply is provided by a 1.5V dry battery.
