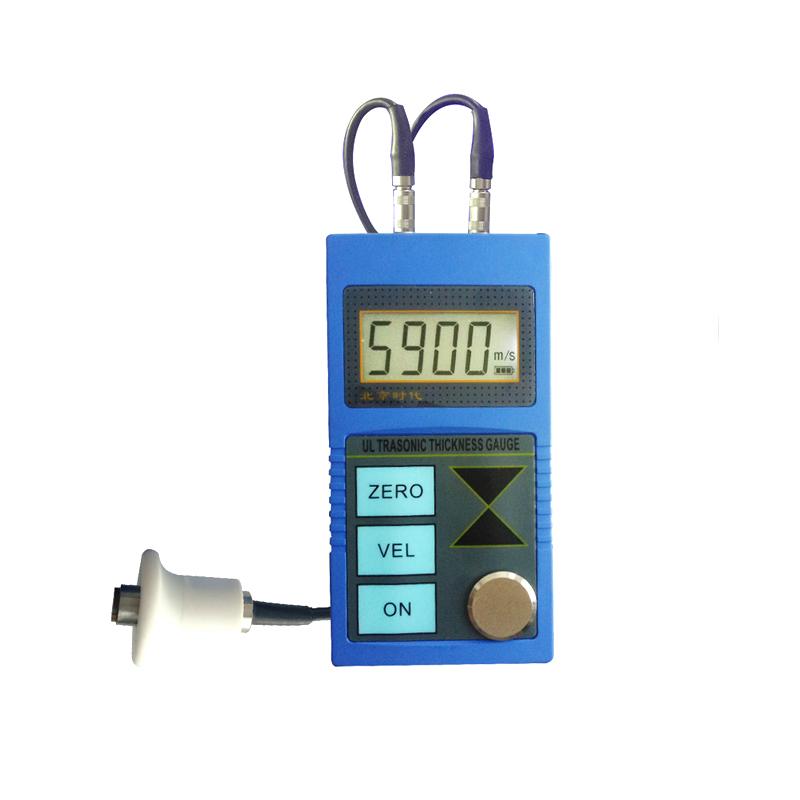

TIMES TT120 Ultrasonic Thickness Gauge with 300 ℃ High Temperature Probe

TT120

Ultrasonic Thickness Gauge

Introduction

TT120 ultrasonic Thickness Gauge is based on the principle of ultrasonic pulse reflection for thickness measurement, when the ultrasonic pulse emitted by the probe passes through the measured object to the material interface, the pulse is reflected back to the probe, and the thickness of the measured material is determined by accurately measuring the time of ultrasonic wave propagation in the material.

Times ultrasonic Thickness Gauge series is a collection of contemporary science and technology electronic technology and measurement technology in one, professional non-destructive testing instruments, the use of microcomputer to analyze, process, display the data time, the use of highly optimized measurement circuit, with high measurement accuracy, wide range, easy operation, stable and reliable work and other characteristics. This principle can be used to measure any material that allows ultrasonic waves to propagate within it at a constant speed.

Features

●Automatic calibration of the zero point, which can correct the system error;

●The upper and lower adjustment keys can be used to quickly adjust the sound speed and thickness, and the thickness storage unit and storage content can be quickly queried;

●Coupling state prompt: provide a coupling flag, and know whether the coupling is normal by observing its stable state;

●It can store 100 thickness values, and the data will not be lost after shutdown, which brings convenience to high-altitude and field work;

●Sound velocity measurement function, according to the thickness of the measured material directly measure its sound velocity, avoiding the trouble of checking the table or conversion;

● Sound velocity of five different materials can be stored;

●Low Voltage prompt, reminding you to replace the battery in time;

●Automatic shutdown: Scheduled automatic shutdown will help you cut off power, prolong the battery life, and users do not need to manually shut down;

Product Applications

TT120 ultrasonic Thickness Gauge can accurately measure all kinds of plates and processed parts, and is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.

The TT120 ultrasonic Thickness Gauge can measure the thickness of any ultrasonic conductor material, such as metals, plastics, ceramics, and glass.

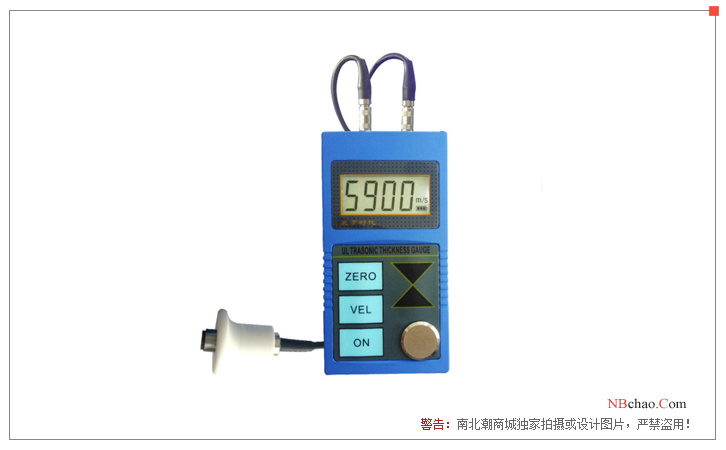

Display diagram

Packing list：Host X1, suitcase X1, 5P < unk > 10 probe X1, ZW5P probe X1, AA type alkaline battery X2 (section), coupling agent X1, random file X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
