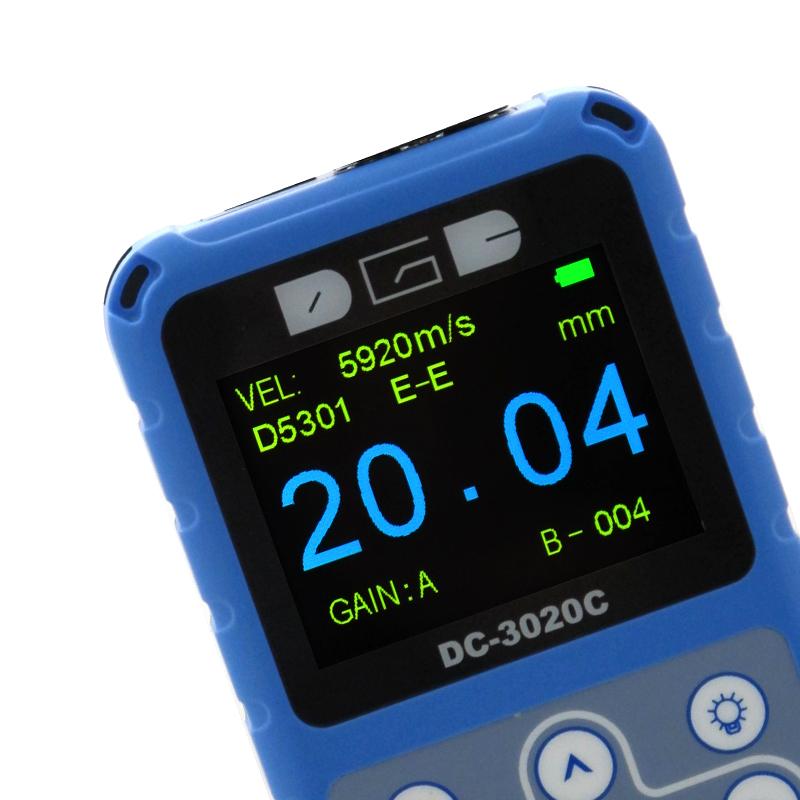

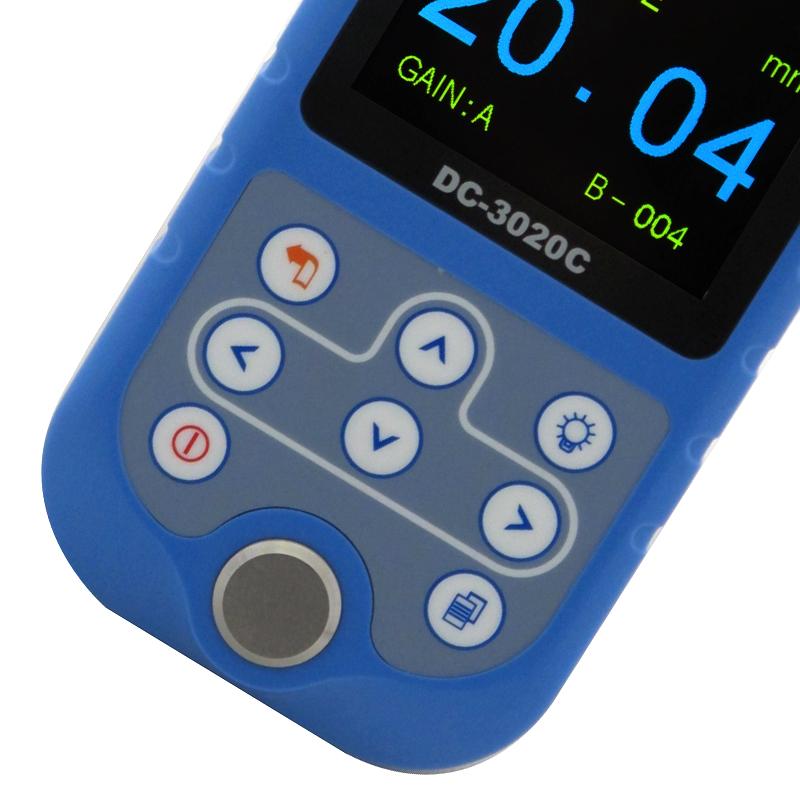

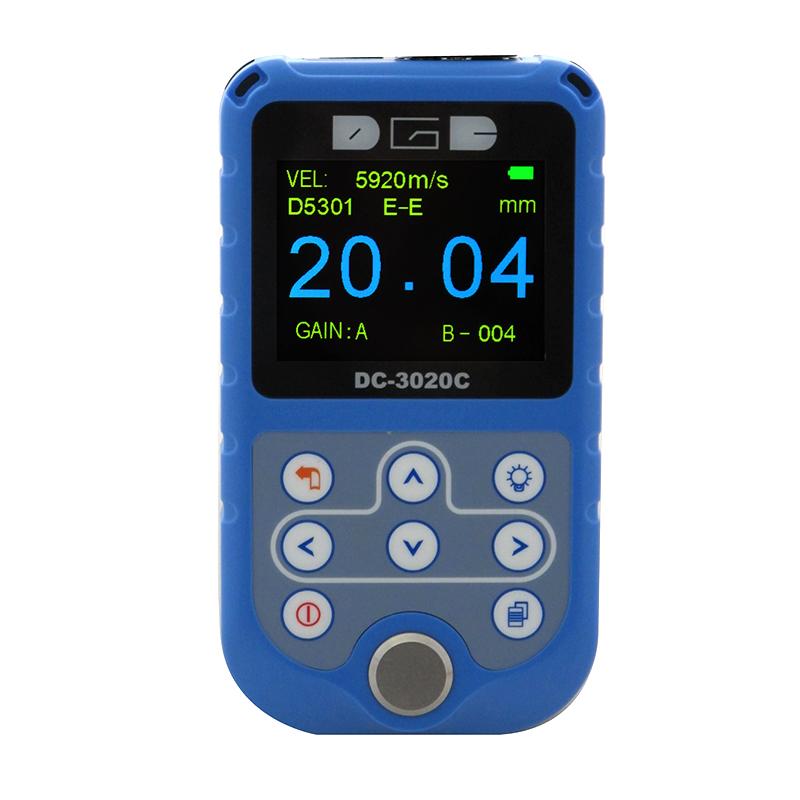

Metal Ultrasonic Film thickness meter DC-3020C Deguang Electronic Glass, steel pipe and other Film thickness measurement

DC-3020C

Thickness Gauge

Introduction

Deguang Electronics DC-3020C Steel Plate Ultrasonic Thickness Gauge is a kind of ultrasonic measurement principle to measure the thickness of metals, steel plates and other materials, and can measure the thickness of materials through the speed of sound. The DC-3020C steel plate ultrasonic Thickness Gauge can measure the thickness of the substrate through the coating, and the thickness measurement of the Thickness Gauge is controlled by a microprocessor. It has a liquid crystal display that can intuitively display the measured thickness data, and can display four digits. External probe type Thickness Gauge.

features

Large screen color display 320×240

Resolution 0.01mm, measurement range: echo-echo: 3-25mm, launch an echo: 0.65mm-400.00mm Different probes decide differently

Measuring range

Standard configuration 5MHz dual crystal probe D5301, optional 2MH probe  D2012, 5MHz high temperature probe D5113, 7.5MHz probe  D7006 and 10MHz probe D7004;

Probe automatic recognition and automatic zero calibration;

Built-in different measurement modes:

Standard and minimum measurement modes (DC-3000c);

Standard, minimum, differential, average and upper and lower limit measurement modes ( DC-3020C);

5200 sets of storage, the data can be uploaded to the computer without software (DC-3020C);

The user removes the probe, and the measurement data is frozen on the liquid screen, which is convenient for the user to view;

Packing list：Host x1, probe (D5301) x1, coupling agent x1, AA battery x2, user manual x1, instrument case x1, USB data cable x1, data disc x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
