Leeb Hardness Tester DHT-100 DGC metal alloy Leeb Hardness Tester

DGC DHT-100 Leeb Hardness Tester is a Leeb Hardness Tester that uses the Richter principle to measure the hardness of materials. DHT-100 Leeb Hardness Tester comes standard with D-type Impact device, digital display.
Model：
Certificate
Contact
Details SPEC OI
Similar products

DGC DHT-100 Hardness TesterSPEC

DGC DHT-100 Hardness TesterDetails

DGC DHT-100 Hardness TesterPacking list

SKU
NB001342
Display
128 × 64 LCD dot matrix liquid crystal display
Measurement range
180~960HL、17.0~68.0HRC、13.3~100.0HRB、5.0~99.9HS、30~680HB、80~999HV
Error of indication
±0.5％(HL=800)
Data storage
Automatically store 1250 sets of measurement data. Expandable storage 2500 sets. Batch storage 12 batches, each batch stores 100 sets of data.
Power Supply
Two AAA batteries (No. 7), can work continuously for not less than 48 hours (without backlight)
Automatic shutdown
Automatic shutdown for 2 minutes without operation
Operating temperature
Operating temperature: -20~ + 40 ℃
Storage temperature
~30~+60℃
Dimensions
108*62*25mm
Weight
180G (without battery)
Indication Repeatability
±0.8％
Indication Repeatability
±0.8％
DHT-100
Hardness Tester
Leeb Hardness Tester DHT-100 DGC metal alloy Leeb Hardness Tester Picture

Introduction

DHT-100 Leeb Hardness Tester is a portable Leeb Hardness Tester with liquid crystal display screen and small size, which is used for hardness testing of metal materials by using the Leeb principle, and can be applied to a variety of environmental occasions for testing.The DHT-100 Leeb Hardness Tester is equipped with a D-type impact device as standard, which has an automatic shutdown function, and can store up to 1250 sets of measurement data, which can be equipped with different impact devices to measure materials of different hardness, digital display, and simple operation.

Features

 1、DHT-100 Leeb Hardness Tester adoptsWrist structure, Chinese operation menu

2. 128 X 64 WITH BACKLIT LCD DISPLAY

3. 6 kinds of sensors can be selected: D, DC, DL, D+15, C, and G

4. Automatically measure the average value, and convert the hardness values of cloth, Luo, Wei and Xiao to each other

5、The DHT-100 Leeb Hardness Tester has:storageFunctionality for 1250 sets of data

6. RS32C digital interface, optional micro printer

7. Real-time clock

Product Structure

1. Appearance structure

The main structure of DHT-100 Leeb Hardness Tester is as follows:keyboardLCD screen,Sensor interface, Standard RS 232C interface,Signage (back),Battery compartment (back).

2. Display part of the data description

The DHT-100 Leeb Hardness Tester can measure and show:Hardness system,Average symbol,Measured averages,Fraction measurements,Direction, Material,Sensor type,Number of measurements/average times,Current storage address,Date & Time,Current battery level.

3. Keyboard part

The operation buttons of the DHT-100 Leeb Hardness Tester are: on/off key, select/single print key, select/backlight key, delete key, read key, menu/confirm key.

Actual picture of the product

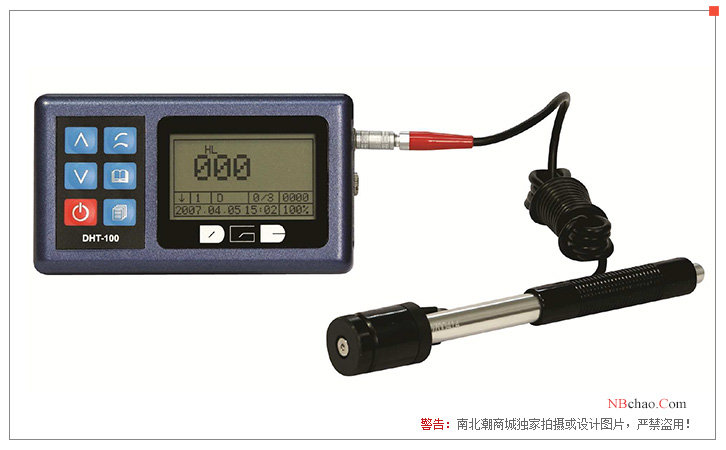

Appearance of DHT-100 Leeb Hardness Tester of Deguang Electronics

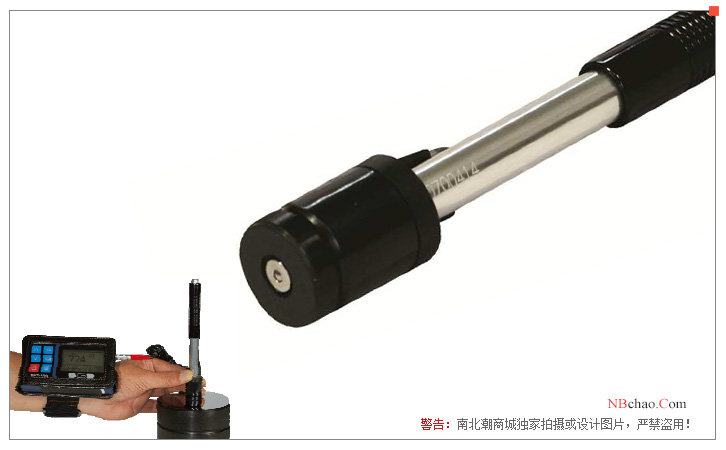

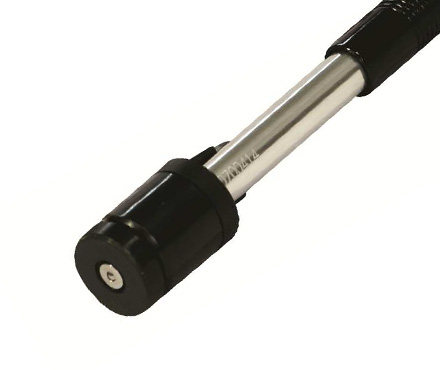

Deguang Electronics DHT-100 Leeb Hardness Tester impact device diagram

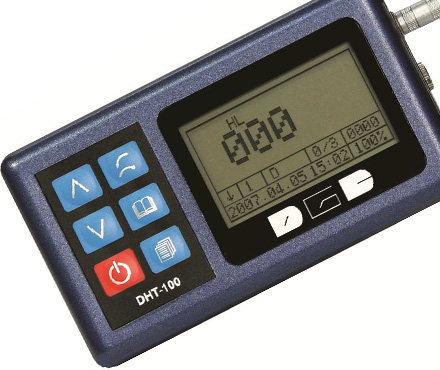

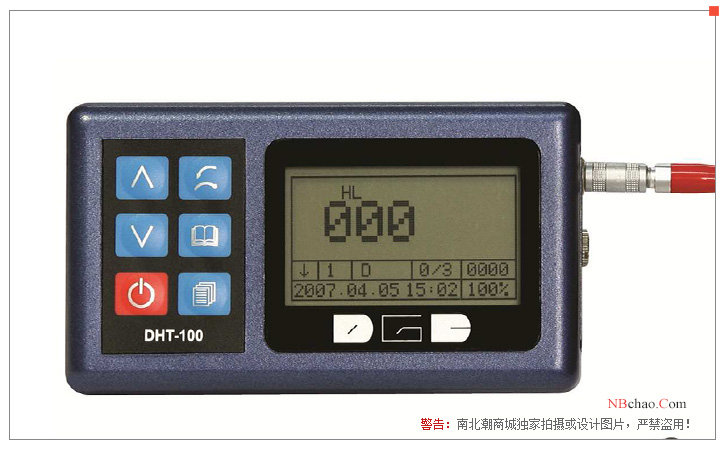

Deguang DHT-100 Leeb Hardness Tester display diagram
