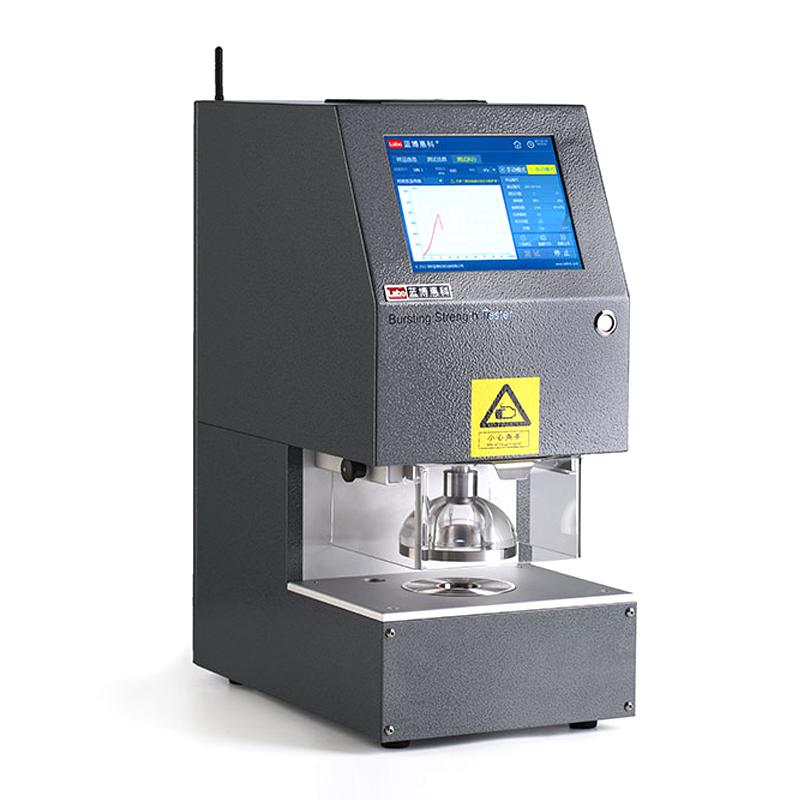

LABO 16032 Cardboard Burst Tester 20~6000kPa

16032

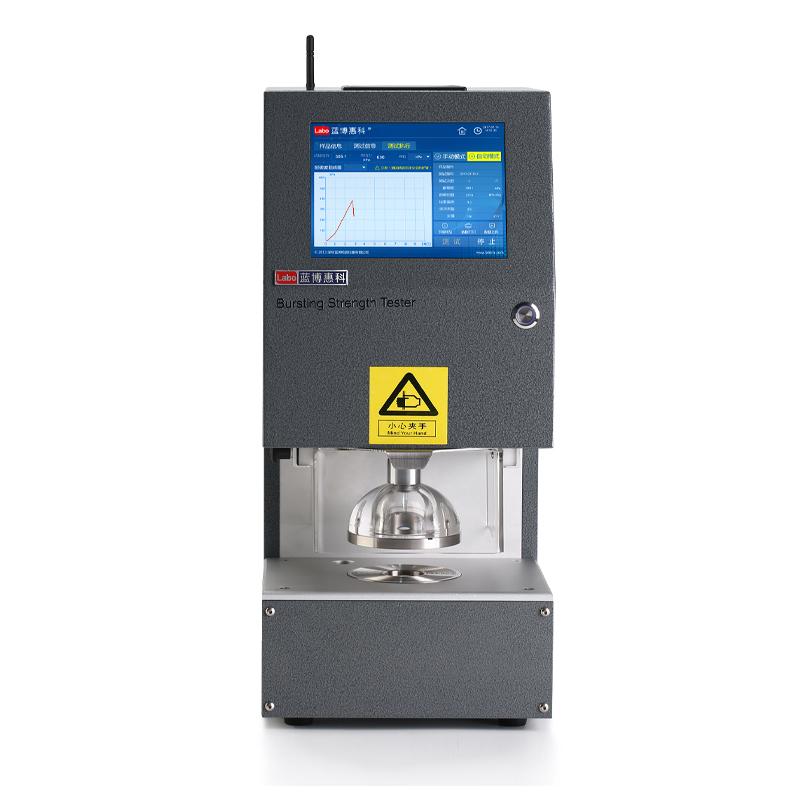

Sheet Burst Tester

Range 20~6000kPa, hydraulic speed 170 ± 15ml/min, suitable for corrugated Cardboard, cardboard, Textile products and materials with high bursting resistance.

use

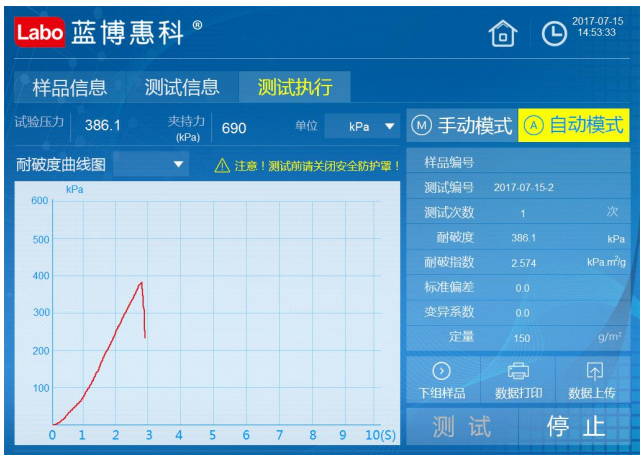

The sheet burst Tester is used to test various tobacco sheets. The burst Tester is composed of a built-in measurement and control system and an LCD touch screen that can display the bursting rate curve and test results.

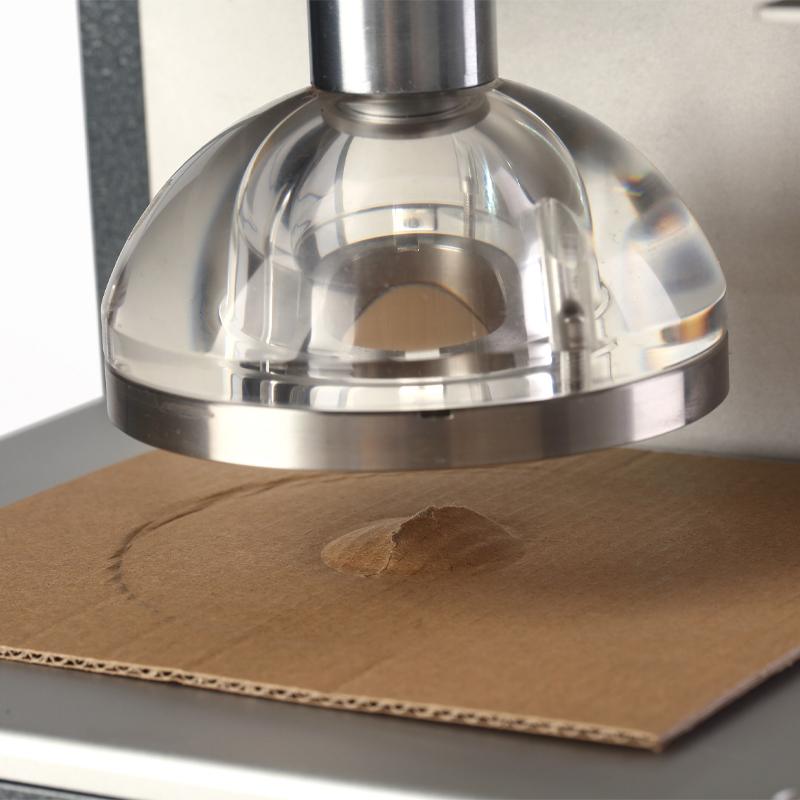

The burst Tester works according to the Mullen test principle: that is, through a piston, silicone oil is injected into the rubber film, the rubber film protrudes to deform the sample, the pressure continues to increase, and finally the sample ruptures, and the maximum pressure value applied is the burst resistance of the sample. Spend.

The Burst Tester is designed to meet the testing standards for paper, cardboard, corrugated cardboard, aluminum foil and textiles.

16032 is suitable for corrugated cardboard, cardboard, textiles and materials with high burst resistance.

Note: For materials with burst resistance below 600kPa, it is recommended to use 16031 model.

Test Principle

The burst Tester works according to the Mullen test principle: that is, through a piston, silicone oil is injected into the rubber film, the rubber film protrudes to deform the sample, the pressure continues to increase, and finally the sample ruptures, and the maximum pressure value applied is the burst resistance of the sample. Spend. The Burst Tester is designed to meet the testing standards for paper, cardboard, corrugated cardboard, aluminum foil and textiles.

Advantages

1. Effective detection and data processing system

The inspection system independently developed by LABO has a highly intelligent system architecture and realizes a fully automated inspection process. The inspection does not require manual intervention, reduces human measurement errors, and improves testing efficiency. The inspection data can be directly printed or uploaded to LABO-DMS via WIFI or RS3232 ( Experimental data management system)

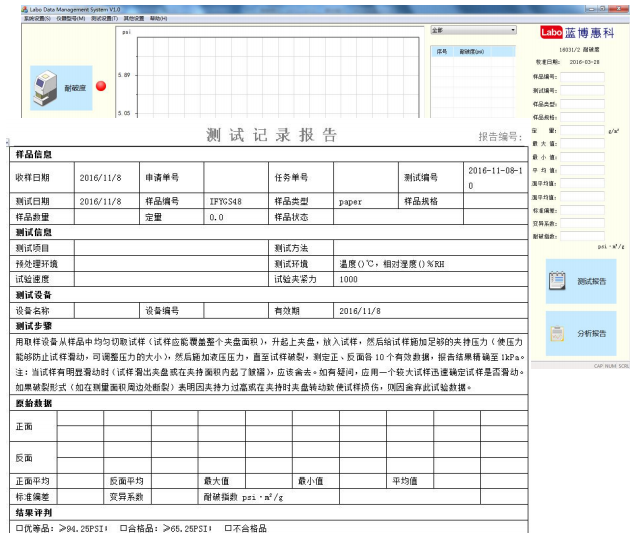

2. LABO-DMS system

Data processing: The test results are uploaded to the computer through WIFI or RS3232, and a single instrument or multiple instruments can be tested and transmitted online, realizing the sharing of one computer and a software system by multiple instruments, saving costs and improving efficiency.

Test report: The content of the report module can be edited by the user at will and generated in Word format.

Analysis report: According to the test results, the user can input the standard value to obtain the sampling failure rate. It can also make predictions and fluctuation analysis according to the test results and the actual temperature and humidity environment of the material, and form different analysis reports.

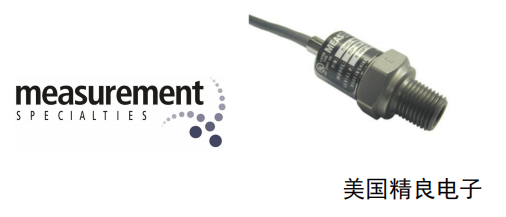

3. High precision pressure sensor

4. High reliability

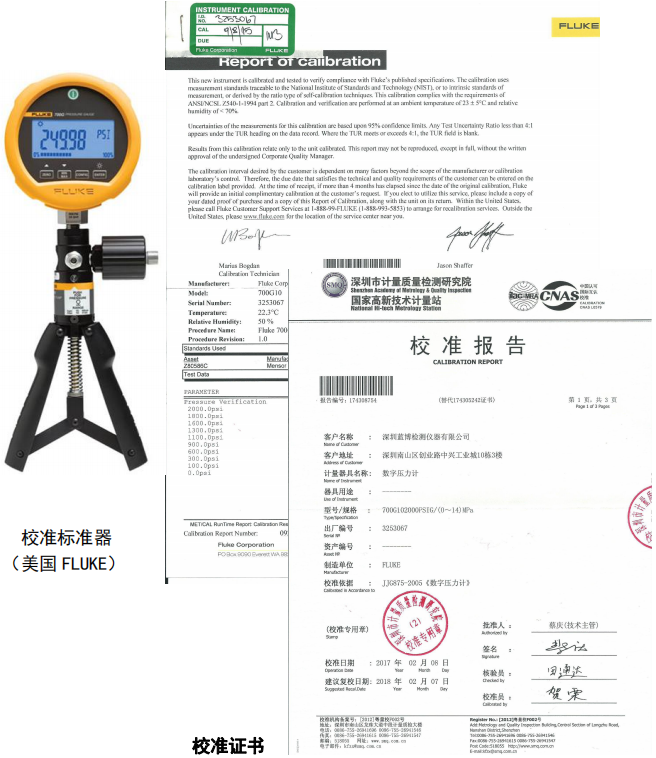

Lanbo Burst Tester has passed a series of index verifications before leaving the factory to ensure that each instrument is reliable, stable, safe, and the measurement accuracy meets the specified requirements after leaving the factory.

5. Pneumatic system and safety protection device

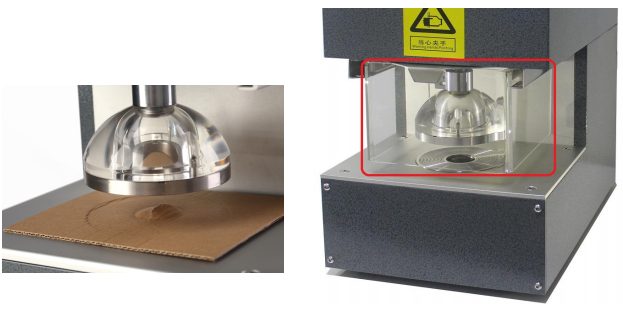

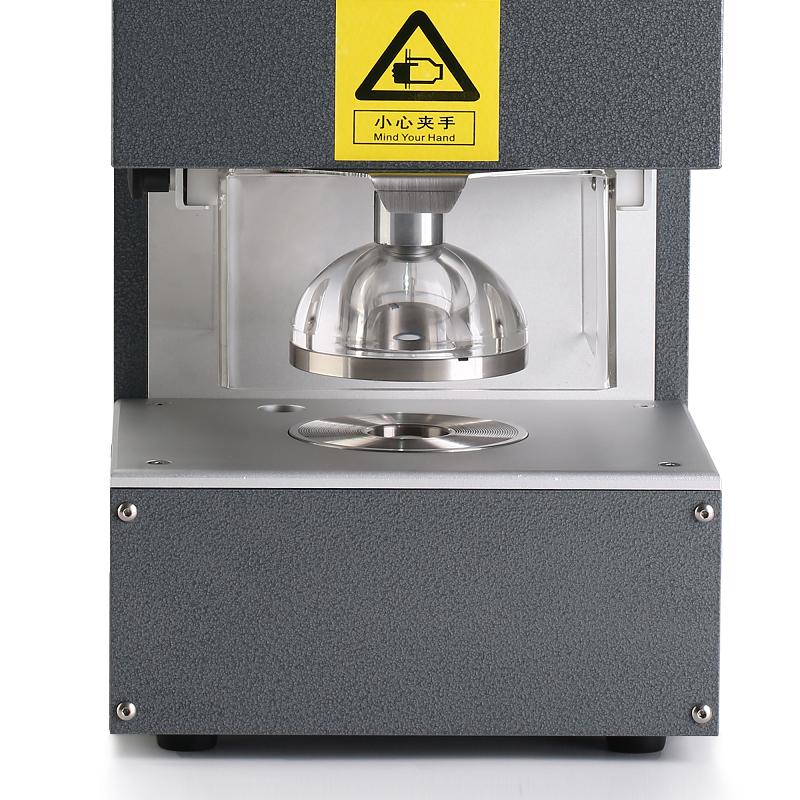

6. Plexiglass safety shield

To prevent personal injury caused by putting hands in the chuck during testing and silicone oil splashing when the film is ruptured.

Features

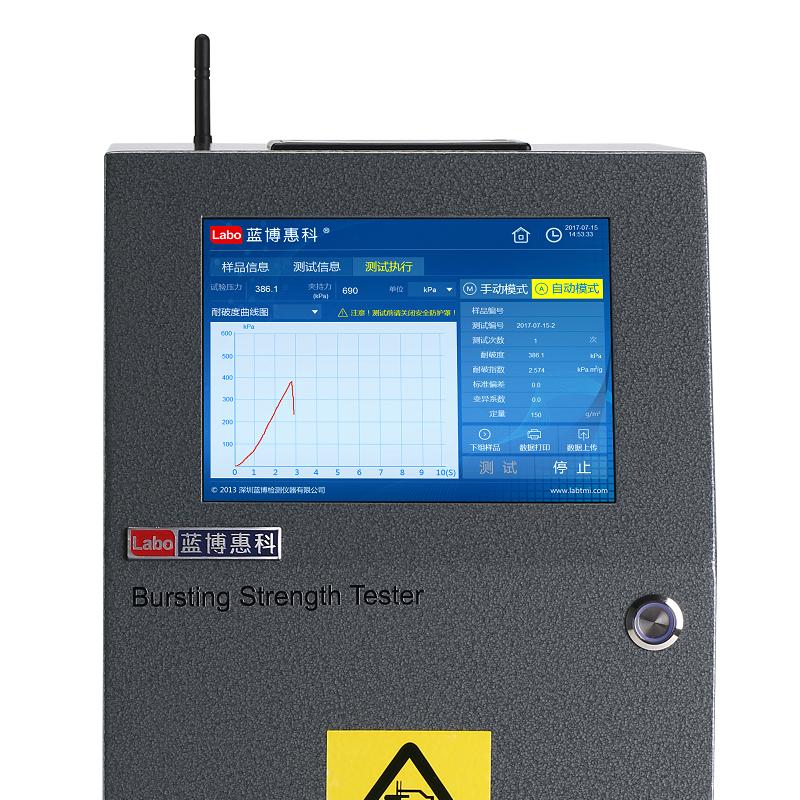

• 8-inch large-screen LCD touch display measurement and control system

• Chinese and English bilingual display

• safety shield

• Precise setting of sample clamping force (Japan SMC pneumatic system)

• Imported high-precision pressure sensor (American precision)

• Sample automatic induction test (automatic)

• Test result calculation, printing and display of bursting curve

• Sample information and test information can be entered by yourself

• Test result output: WIFI or RS232

Standards

GB/T1539, GB/T454, QB/T1057, ISO 2758, ASTM D774, JIS 8112, TAPPI T 403

Technical indicators and parameters

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
