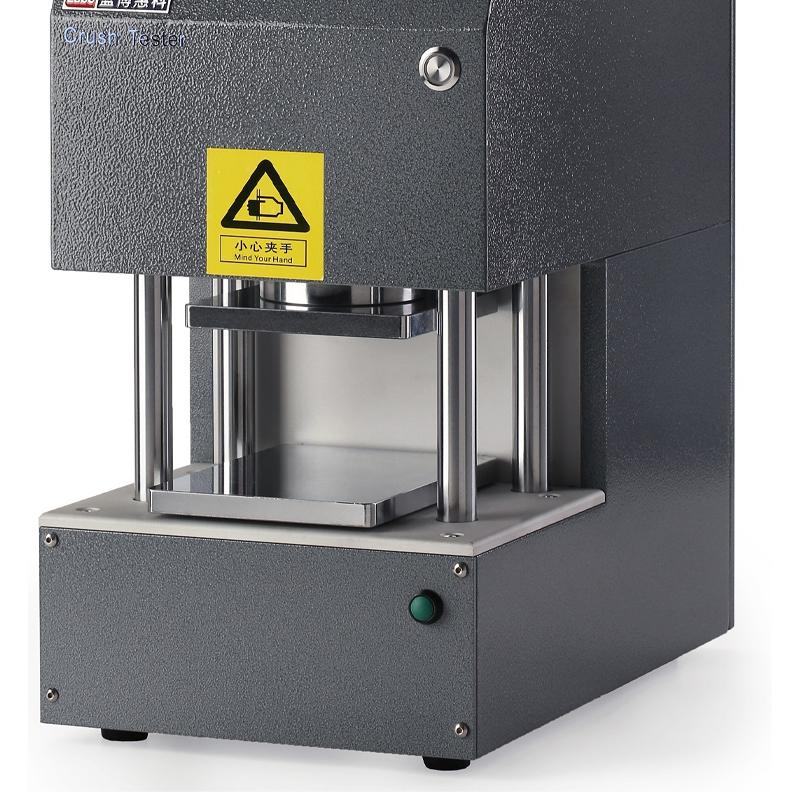

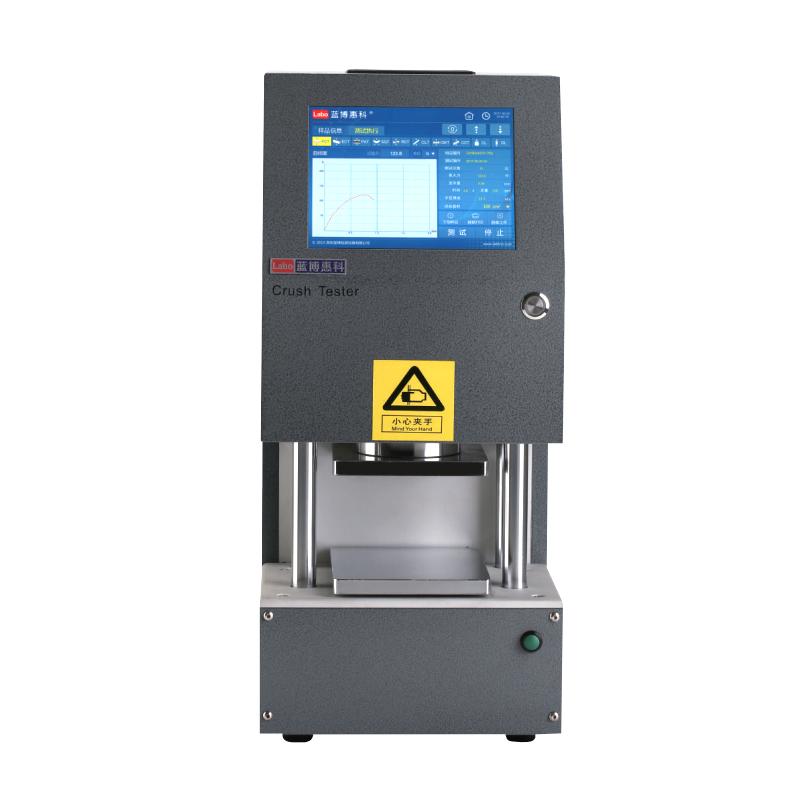

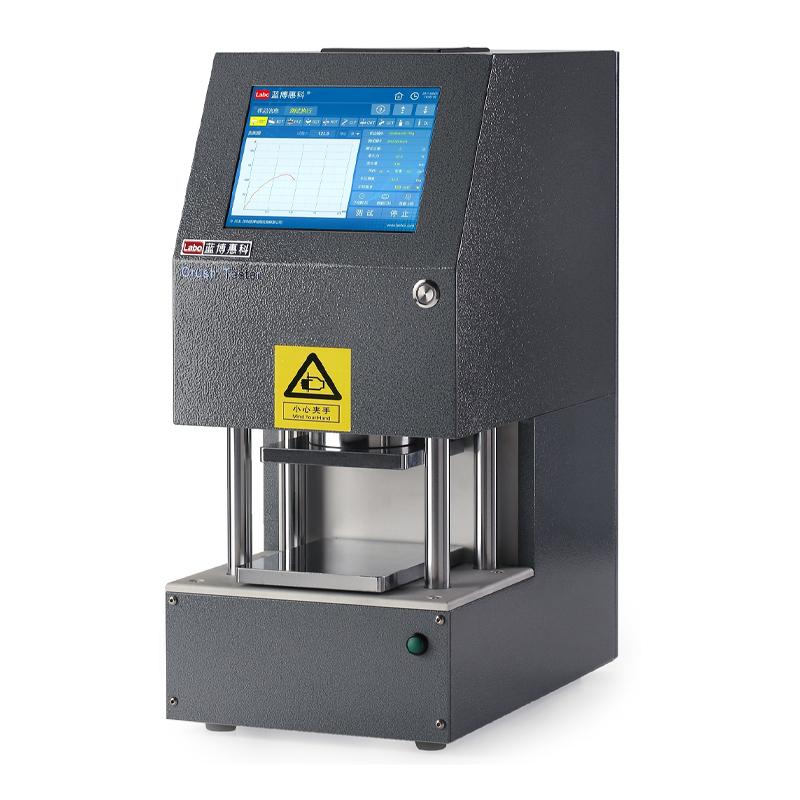

LABO 17051 (1) High Intelligent Compression Tester 0~100kgf

17051（1）

Compression Tester

Range 0~100kgf, can input relevant test parameters, Linear dispersion graphic display of pressure test, measurement stroke 76mm, can meet the requirements of 10 test items, with automatic reset function.

Introduction

The inspection system independently developed by LABO has a highly intelligent system architecture and realizes a fully automated inspection process. The inspection does not require manual intervention, reduces human measurement errors, and improves testing efficiency. The inspection data can be directly printed or uploaded to LABO-DMS via WIFI or RS3232 ( Experimental data management system). The touch screen interface makes switching between tests easier. Ten test methods can be switched arbitrarily on the main screen to improve the test speed.

Test Principle

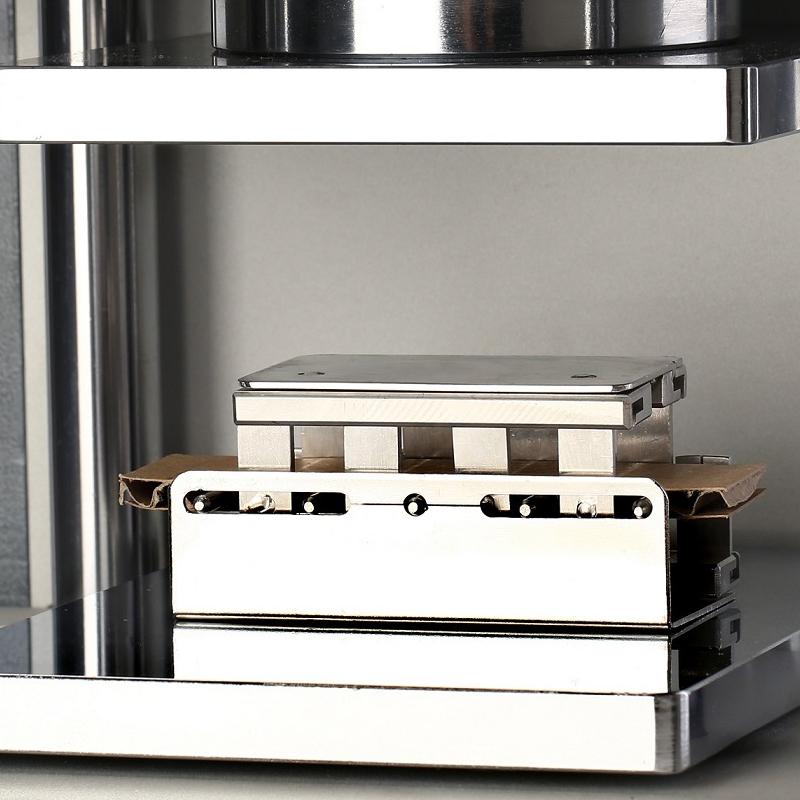

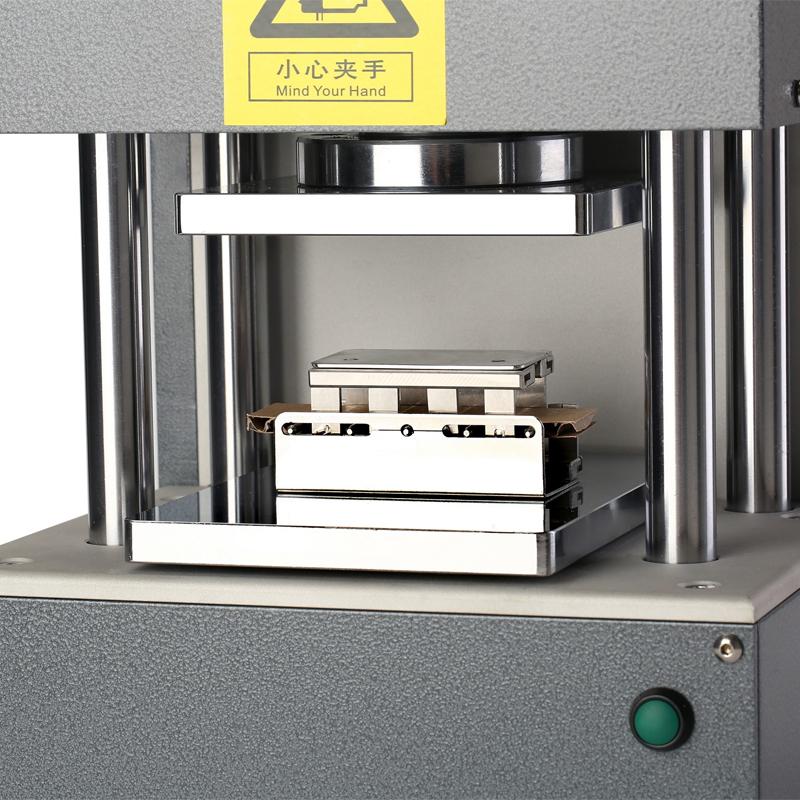

The sample is exerted pressure by the upper and lower pressure plates, the pressure is continuously increased, and finally the sample is crushed, and the maximum value of the applied pressure is the strength of the sample. The design of the compression Tester mainly meets the test standards for paper, cardboard, corrugated cardboard, and cushioning materials.

Test range selection

There are two test ranges for this instrument: (10-1000N) is recommended for measurement values less than 50N; (50-5000N) is recommended for measurement values greater than 50N.

Features

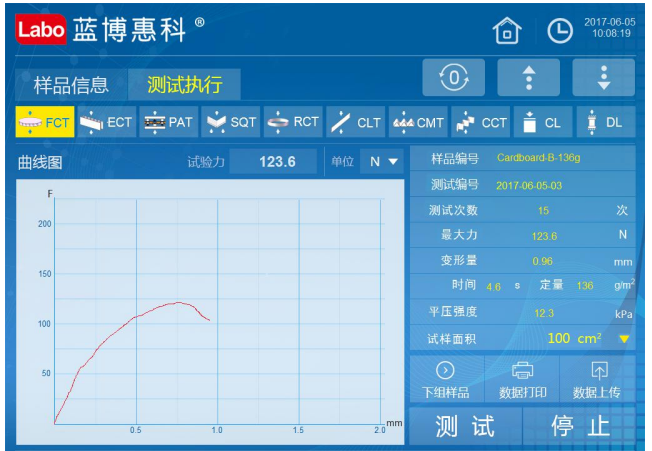

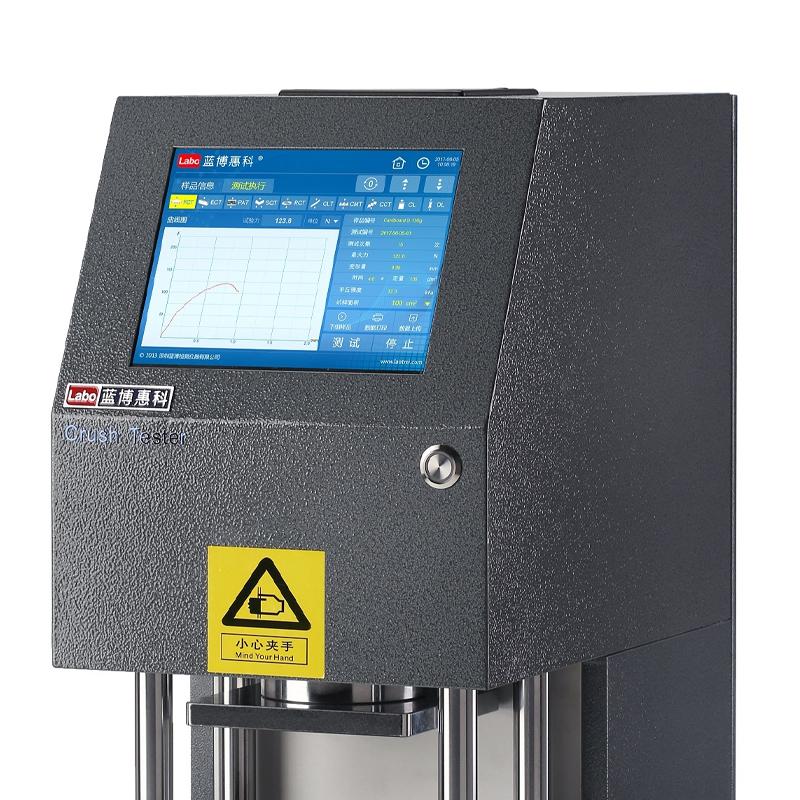

• Effective detection and data processing system, high-definition integrated operation interface (8-inch touch screen)

The inspection system independently developed by LABO has a highly intelligent system architecture and realizes a fully automated inspection process. The inspection does not require manual intervention, reduces human measurement errors, and improves testing efficiency. The inspection data can be directly printed or uploaded to LABO-DMS via WIFI or RS3232 ( Experimental data management system) .

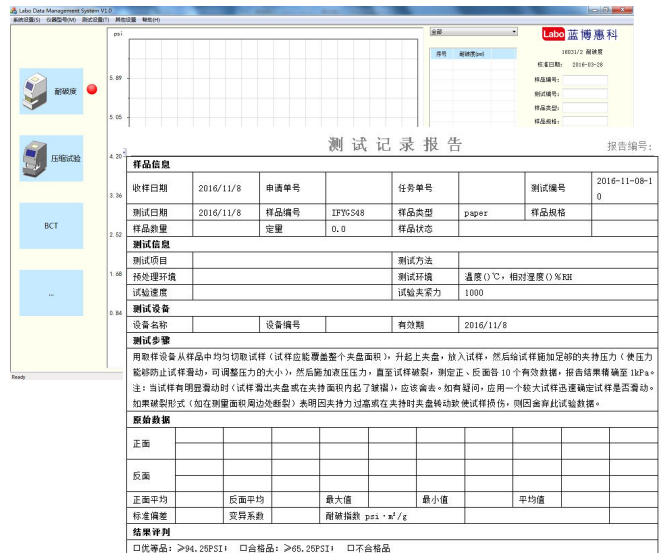

• LABO-DMS system:

Data processing: The test results are uploaded to the computer through WIFI or RS3232, which can be tested and transmitted online for a single instrument or multiple instruments, realizing the sharing of one computer and a set of software system by multiple instruments, saving costs and improving efficiency.

Test report: The content of the report module can be edited by the user at will and generated in Word format.

Analysis report: According to the test results, the user can input the standard value to obtain the sampling failure rate. It can also make predictions and fluctuation analysis according to the test results and the actual temperature environment of the material, and form different analysis reports.

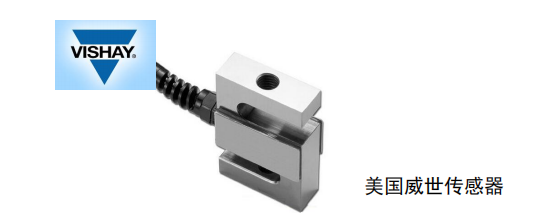

• High-precision sensor, American Vishay sensor

• high reliability

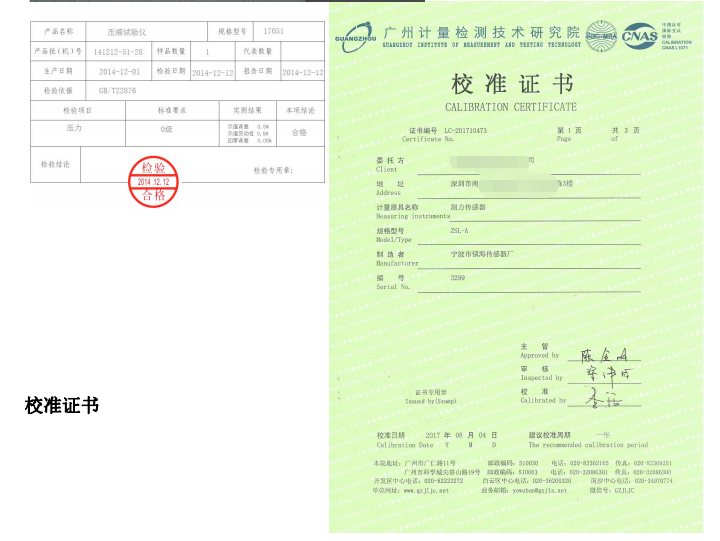

The Lanbo compression Tester has passed a series of index verifications before leaving the factory to ensure that each instrument is reliable, stable, safe, and the measurement accuracy meets the specified requirements after leaving the factory.

• This compression Tester can meet the requirements of 10 kinds of test items, making the test more effective and convenient. It has the function of memory of the test starting position and automatic reset.

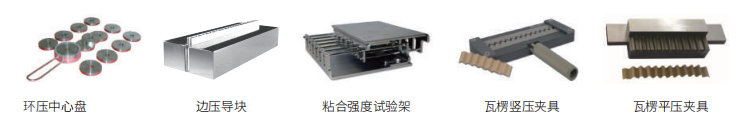

Optional

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
