Lambo Huike LB-BT10 paper cup body stiffness Tester

SE
Sensors with dual probes are used for the measurement of paper cups with paraffin, polyethylene film and other substances on the surface, the measuring range is 0~30N, and the indication accuracy is ± 1%.
Model：
Certificate
Contact
Details SPEC CAT

Labo LB-BT10 Stiffness meterSPEC

Labo LB-BT10 Stiffness meterDetails

Labo LB-BT10 Stiffness meterPacking list

SKU
NB013533
Measuring range
0~30N
resolution
0.01N
Indication Accuracy
±1%
Indication of variability
≤1%
Spherical radius of two contact measurement heads
5mm
Test speed
50±2.5mm/min
Probe relative movement distance
9.5±0.5mm
Probe pair neutral
≤0.2mm
Two probe opening distance
40~120mm
Measurement of Cup height
10~180mm
Service life of Chinese measurement and control LCD
About 50,000 hours
Power
AC220V ± 22V 50Hz 0.5A should be reliably grounded
Dimensions
500×270×330mm
Net Weight
30kg
LB-BT10
Stiffness meter
Sensors with dual probes are used for the measurement of paper cups with paraffin, polyethylene film and other substances on the surface, the measuring range is 0~30N, and the indication accuracy is ± 1%.

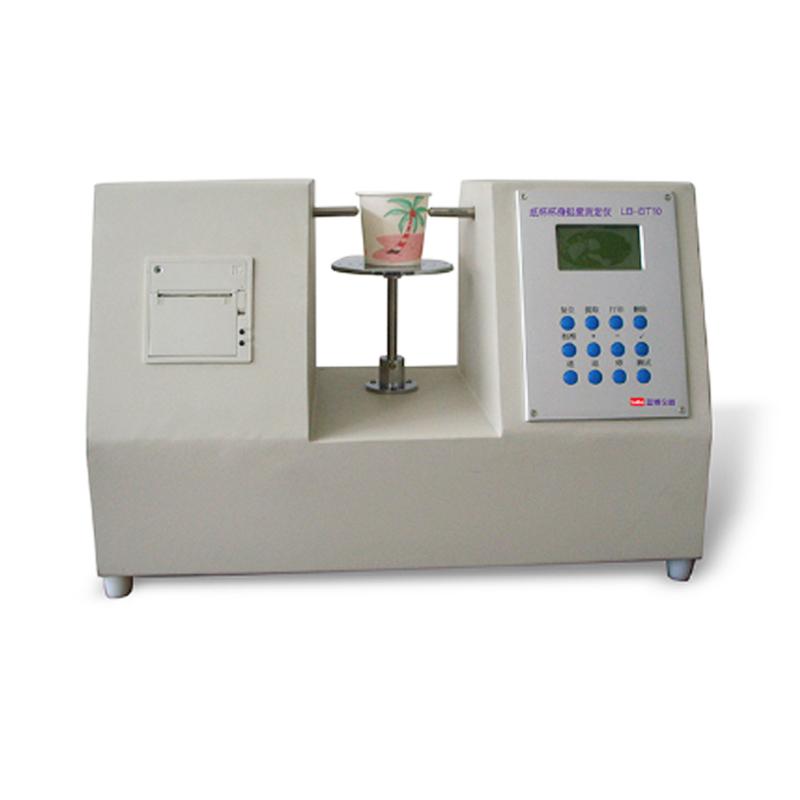

Lambo Huike LB-BT10 paper cup body stiffness Tester Picture

Introduction

Lambo Huike LB-BT10 Paper Cup Body Stiffness Tester is used to measure all kinds of paper cups with paraffin wax, polyethylene film and other substances on the surface, which are used to hold cold and hot drinks and ice cream, and can also be used for paper bowls and plastic cups Measurement of body stiffness.

Features

Labo LB-BT10 paper cup body stiffness Tester adopts single-chip microcomputer control technology, double-probe transmission device and double-probe measurement (double-probe sensors) to ensure uniform force. Fully automatic test completion, automatic reset, LCD Chinese display, test data memory and statistical processing functions (printer printout single measured value, average value, maximum value and minimum value).

Test description

Put the test sample on the sample stand of the cup body stiffness Tester, adjust the height of the sample stand so that the measuring head is close to the side wall of the sample, and the vertical distance between the side measuring head and the bottom of the cup is three times the cup height. 2/2, and make the cup body seam of the paper cup to be tested face the Tester, turn on the instrument, and measure the cup body stiffness.

Note: 5 paper cups are measured for each sample, and the measurement result is expressed as the average value, accurate to 0.01N.

Applicable standard

GB/T27590-2011

QB/T2294
