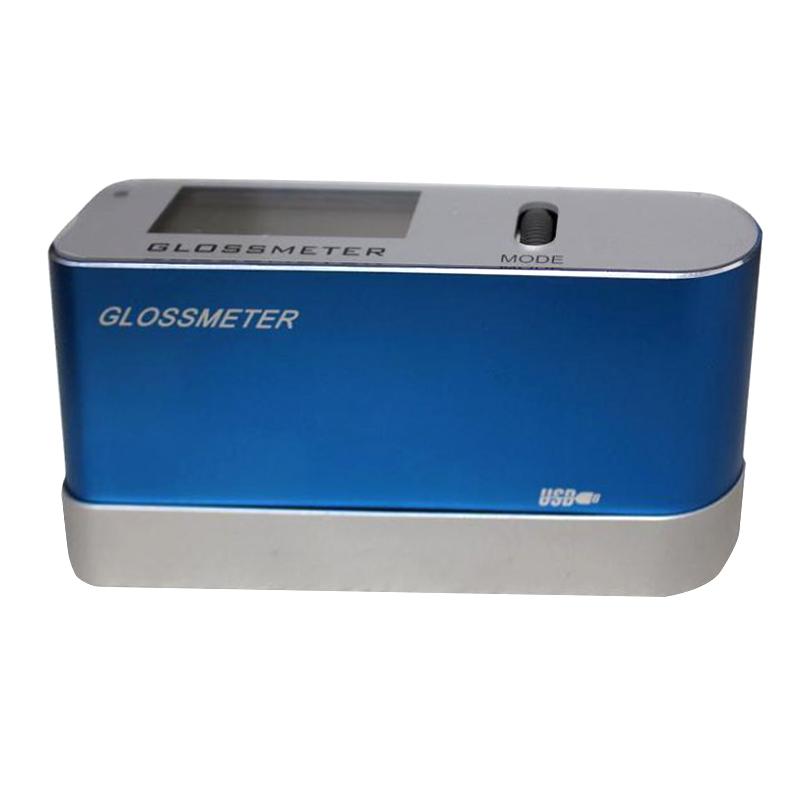

LABO 268 Glossiness Tester 20 °/60 °/85 °

The LABO 268 Glossiness Tester is a three-angle Glossmeter used to test the surface Glossiness of automobiles, home appliances, musical instruments, furniture, Paints, Resin, metals, plastics, films, varnishes, etc. The Labo 268 Glossiness Tester has various functions such as difference, qualified product judgment, data storage, etc.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

Labo 268 Glossiness TesterSPEC

Labo 268 Glossiness TesterDetails

Labo 268 Glossiness TesterPacking list

SKU
NB013540
Measurement angle
20°/60°/85°
Measurement range
0~99.9 100~2000(20°)；0~99.9 100~1000(60°)；0~99.9 100~160(85°)
Repeatability
0.2%
Reproducibility
0.5%
Measuring Areas
10*10mm(20°)；10*20mm(60°)；8*30mm(85°)
Measurement port size
11*38mm
Standards
GB9754、GB9966、GB/T13891、JJG696-2002、ISO2813、ASTMD523、DIN67530
Interface
USB Interface, Bluetooth
Operating language
Chinese
Dimensions
137*38*64mm
Weight
380g
Power Supply
One AA battery or rechargeable battery
268
Glossiness Tester
LABO 268 Glossiness Tester 20 °/60 °/85 ° Picture

Introduction

The Labo 268 gloss Tester is used to measure the gloss of various materials.

Features

  • The compact, compact form factor makes it easy to grasp the measurement with one hand.

  • Specially designed roller operation, convenient and fast.

  • The high-resolution LCD display screen can display more content, and the elegant backlight can facilitate working in dark places. Fast simultaneous measurement of three angles, and the data is completely unaffected by external light.

  • True USB data communication interface as well as wireless Bluetooth transmission.

  • Difference function, qualified product judgment function, data storage function.

Application

  •  Printing and packaging: measurement of surface gloss of ink and paper.

  •  Automobiles, home appliances, musical instruments, furniture: surface gloss measurement of paints and coatings.

  •  Building decoration materials: flooring, marble, granite, tile surface gloss measurement.

  •  Other industries require measurement of surface gloss.

Pictures

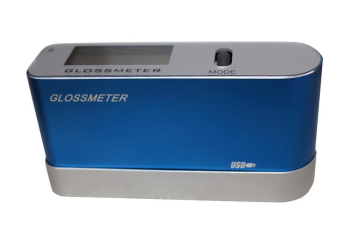

Illustration of the Labo 268 gloss Tester

FAQ
QLabo 268 three-angle gloss instrument with or without USB interface?
A Hello, yes.
