SDPTOP JA5003J Electronic Density Balance Weighing range 500g

SE
Weighing range 500g, Readability 1mg, Repeatability Error +/- 1mg, Linearity +/- 2mg, test weight value 500g, calibrated type external calibrated
$731.00/set
PromotionLoading...
Coupon
Model:
Certificate

SDPTOP JA5003J Balance of electron densitySPEC

SDPTOP JA5003J Balance of electron densityDetails

SDPTOP JA5003J Balance of electron densityPacking list

SKU
NB013943
Weighing range
500g
Readability
1mg
Repeatability Error
±1mg
Linearity
±2mg
Test Weight
500g
Calibrated type
Externally calibrated
Types of density tests
Solid (standard, non-standard, float), liquid (with reference plumb block)
Measured Mass in air
≥0.25g
The buoyancy of the measured object in water
≤-0.125g
Pan Size
Φ90mm
output interface
RS232
Net Weight
6.8kg
Gross Weight
9.3kg
effective Volume of wind hood
165*150*200mm
Dimension
365*223*338mm
Packaging Dimensions
500*310*450mm
operating relative temperature
5℃~40℃
Relative Humidity
≤85%
JA5003J
Balance of electron density
Weighing range 500g, Readability 1mg, Repeatability Error +/- 1mg, Linearity +/- 2mg, test weight value 500g, calibrated type external calibrated

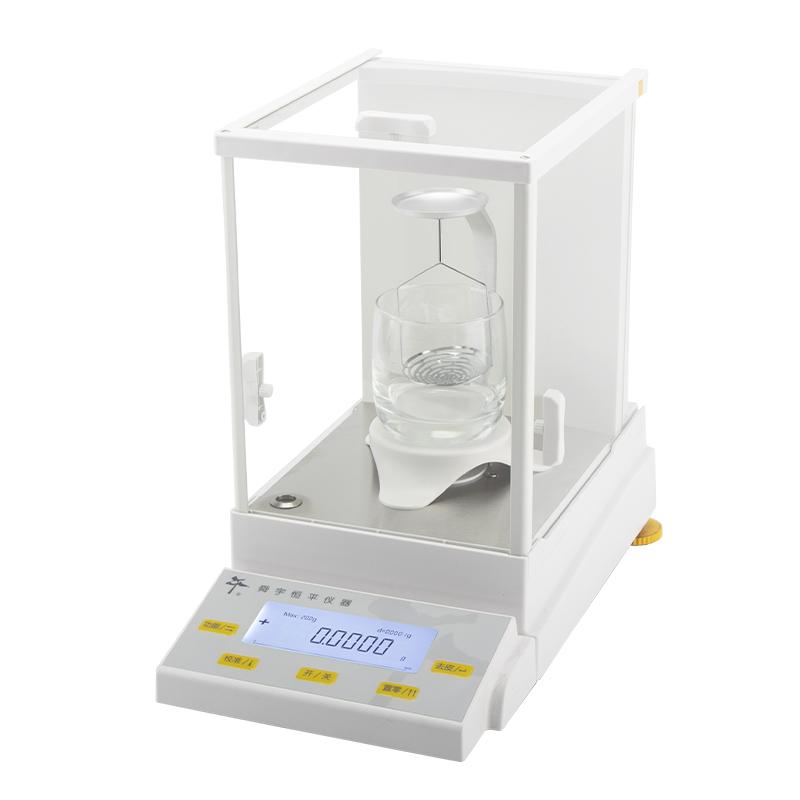

SDPTOP JA5003J Electronic Density Balance Weighing range 500g Picture

Features

●Analyze the electronic balance with the density measuring device to determine the density (g/cm3) to three decimal places;

● Density direct reading, minus tedious calculations;

●It can measure the density of solids and liquids, and the density of standard liquids can be selected;

●Suitable for research institutes, electronics industry, rubber industry, wire and cable manufacturing industry, food industry, cosmetics industry, paper industry, machinery processing industry, powder metallurgy industry, automobile industry and other industries;

●It is suitable for density testing of plastic particles, rubber particles, plastic composite materials, resins, metal products, stone, graphite materials, glass products, various alloys, various chemical solutions and other materials;

● Display shield to provide additional protection against dust and scratches and extend the life of the balance;

●Glass door transport protection lock, effectively provide balance transport protection;

●All-aluminum base design prevents low-frequency vibration and enhances weighing stability.

ModelFA1104JFA2104JJA3003JJA5003J
Weighing range110g210g300g500g
readability0.1mg1mg
repeatability±0.1mg±1mg
Linear±0.2mg±2mg
Calibrate the weight value100g200g300g500g
typeExternal calibration
Types of density testsSolid (standard, non-standard, buoy), liquid (with reference weight)
The mass of the object to be measured in the air≥0.25g
The buoyancy experienced in the water of the analyte≤-0.125g
Weighing pan sizeΦ90mm
Output interfaceRS232
Effective volume of Wind Shield165x150x200mm
