FARI FR-1907 TABER Abrasion Tester

SE
The FARI FR-1907TABER Abrasion Tester has a test disc speed adjustable from 0-70, and the FR-1907TABER Abrasion Tester is commonly used for wear resistance testing of Coatings, Leather and Natural Rubber.
$1548.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

FaRui FR-1907 Abrasion TesterSPEC

FaRui FR-1907 Abrasion TesterDetails

FaRui FR-1907 Abrasion TesterPacking list

SKU
NB014187
test piece
120×6.5×3mm
Load
250g、500g、1000g
Counter
Electronic display 6 digits, automatic stop
Test disk speed
0-70 adjustable
Machine size
30*43*30cm
Machine Weight
30kg
Power Supply
AC220V/50HZ

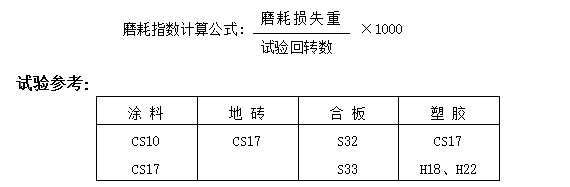

Coating wheel number
CS17
plywood
CS32 CS33
plastic
CS17、H18、H22
cloth
H18、H22 、CS17
FR-1907
Abrasion Tester

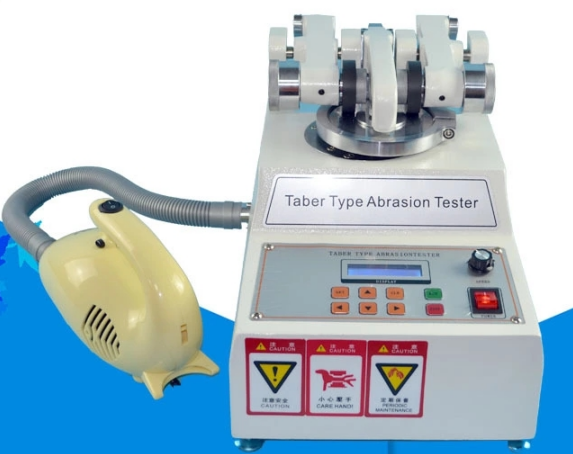

FARI FR-1907 TABER Abrasion Tester Picture

Product Description

This machine is suitable for abrasion test of leather, cloth, paint, paper, floor, plywood, glass, natural rubber, etc. The method is to cut the test piece with a standard cutter, use a specified type of grinding wheel, and load a certain weight to wear it, take out the test piece after reaching the specified number of revolutions, observe the condition of the test piece after grinding or the weight of the test piece before the test and the weight after the test. The weight difference, optional grinding wheel models: H18, H22, CS17, S32, S33.

Farui FR-1907 TABER Abrasion Testing Machine

Executive standard

DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470

Farui FR-1907 TABER Abrasion Testing Machine

FAQ
QI want to test the wear resistance of leather, which Abrasion tester should I choose?
A FR-1907 Abrasion tester is designed for leather wear test, H18 or H22 abrasive wheels can be used to simulate actual abrasion, by adjusting 250g-1000g load and Rotation speed, can accurately evaluate leather durability, in line with DIN, ASTM and other international standards.
QDoes this FR-1907 abrasion machine come with a vacuum cleaner?
A Hello, there is.
QAluminum profile surface lame plating plastic powder, test abrasion resistance, suitable?
A suitable
QAre all Abrasion Testers available for testing in the ASTMD4060 standard?
A Not necessarily, but this FR-1907 Abrasion Tester can be considered.
