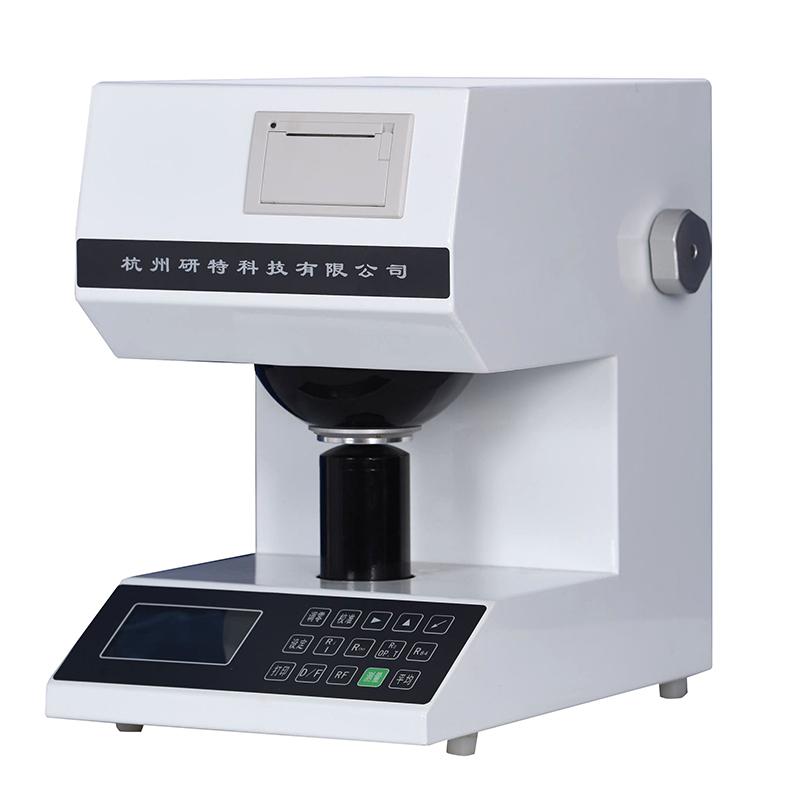

YANTE YT-48A whiteness Colorimeter automatic, built-in thermal printer

YT-48A

Whiteness Colorimeter

Automatic one-click measurement, measuring ISO whiteness, CIE whiteness, fluorescent whiteness and other indicators, high-pixel LCD display, easy to operate, built-in thermal printer, no inks, fast printing.

Introduction

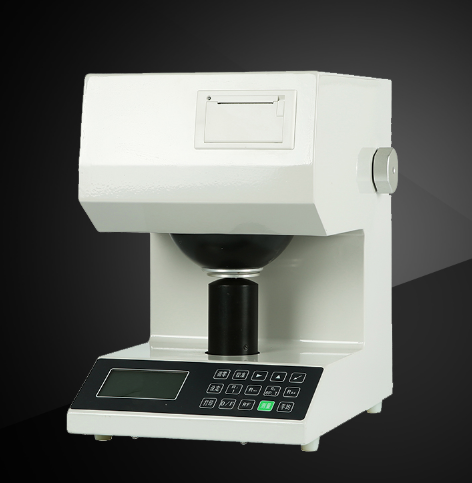

Yante YT-48A whiteness and Colorimeter is the first new instrument in the industry to automatically measure all color and whiteness Specifications with one button. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemicals, food, and salt. And other industries and other production and commodity inspection departments that need to measure the color and whiteness of objects.

Application

Paper, cardboard, plastic, pulp

Salt, industrial salt, starch, calcium carbonate, talcum powder and other powders

Pulp for chemical fiber, cotton, chemical fiber, textile

grain, ceramics, enamel, building materials

Features

• Measure the color of an object

• Determination of CIE whiteness (Ganz visual whiteness) W10 and color cast value Tw10

• Determination of ISO whiteness (R457 blue light whiteness) and Z whiteness (Rz)

• Determination of the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening)

• Determination of whiteness WJ of building materials and non-metallic mineral products

• Determination of Hunter Whiteness WH

• Determination of whiteness and chroma of fiber (supporting fiber sampler)

• Measuring whiteness, chroma Lab and color difference of powder

• Measure lead concentration

• Determination of yellowness YI, opacity OP, light scattering coefficient S, light absorption coefficient A, transparency, ink absorption value

Features

Large-screen high-pixel liquid crystal display module, Chinese display and prompt operation steps to display measurement and statistical results, friendly man-machine interface makes the operation of the instrument simple and convenient

Increase the data cache, which is convenient for users to back up, consult and compare historical data, and can store and memorize up to ten times of reference sample information

The instrument has a power-off protection function, and the calibration data will not be lost after power-off

Can be measured multiple times and give the arithmetic mean of a series of measurement results

Measure the color of an object, report diffuse reflection factors Rx, Ry, Rz, stimulus values X10, Y10, Z10, chromaticity coordinates x10, y10, lightness L*, chroma a*, b*, chroma C*ab, hue angle h*ab, dominant wavelength λd, excitation purity Pe, color difference ΔE*ab, lightness difference ΔL*, chroma difference ΔC*ab, hue difference ΔH*ab, Hunter system L, a, b

Using thermal printing core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.

The instrument is equipped with a standard RS232 interface, which can communicate with computer software (purchased separately)

Packing list：host X1, black cylinder X1, whiteboard (1 #, 2 #) X1, light bulb X1, printing paper X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
