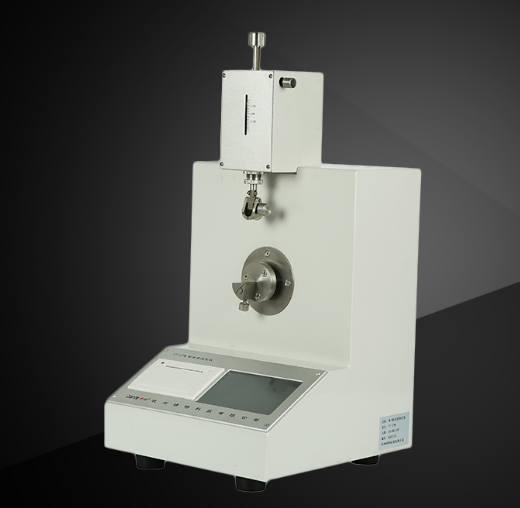

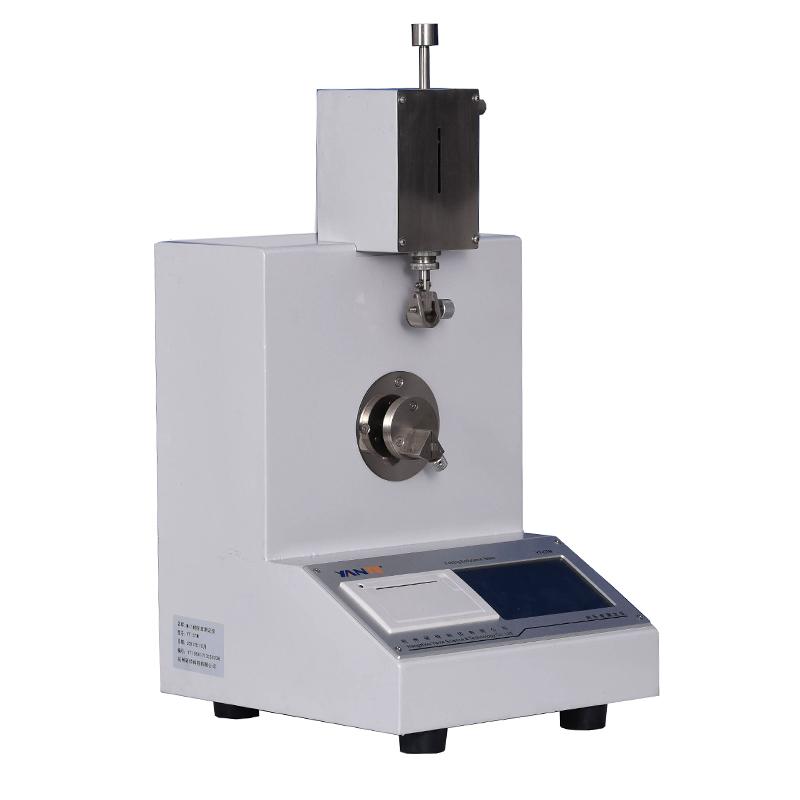

YANTE YT-CTM Folding Tester touch screen, fatigue performance test

YT-CTM (touch screen)

Folding Tester

Adopt high-performance stepper motor and 32-bit ARM processor, equipped with 5-inch color touch screen, support automatic measurement, statistics, printing and save data. The instrument has a built-in thermal printer, which works noiseless and fast, and provides RS232 interface and microcomputer communication

Introduction

YT-CTM Folding Endurance Tester is a testing tool used to test the folding fatigue performance of paper, through which the number of times and folding endurance of paper can be tested. The instrument can also be used for testing the folding fatigue resistance of textiles, plastic films, wires and other products. It is a satisfactory testing tool for paper production enterprises, packaging production enterprises, textile production enterprises, wire rod production enterprises, etc. to test product quality.

Application

    0-1mm paper, cardboard, cardboard

    0-1mm glass fiber, film, circuit board, copper foil, cable, etc.

Features

Determination of folding endurance

Features

1. Using high-performance stepping motor and driver, the rotation angle and folding speed are accurate and stable, and the folding speed accuracy is higher than the standard requirement, which can reach 175±5 times/min

2. The motherboard adopts new technology and new design, and the CPU adopts 32-bit ARM processor, which improves the processing speed of the instrument and makes the calculation data more accurate and fast

3. 5-inch color touch screen, Chinese display, touch buttons, making the operation easy to understand

4. Automatic measurement, statistics, printing of test results, and data storage function

5. Fully automatic measurement, intelligent judgment function

6. Using thermal printing core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.

7. The instrument is equipped with a standard RS232 interface, which can communicate with computer software (purchased separately)

Packing list：Host X1, large weight X1, small weight X1, folding chuck X1, printing paper X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
