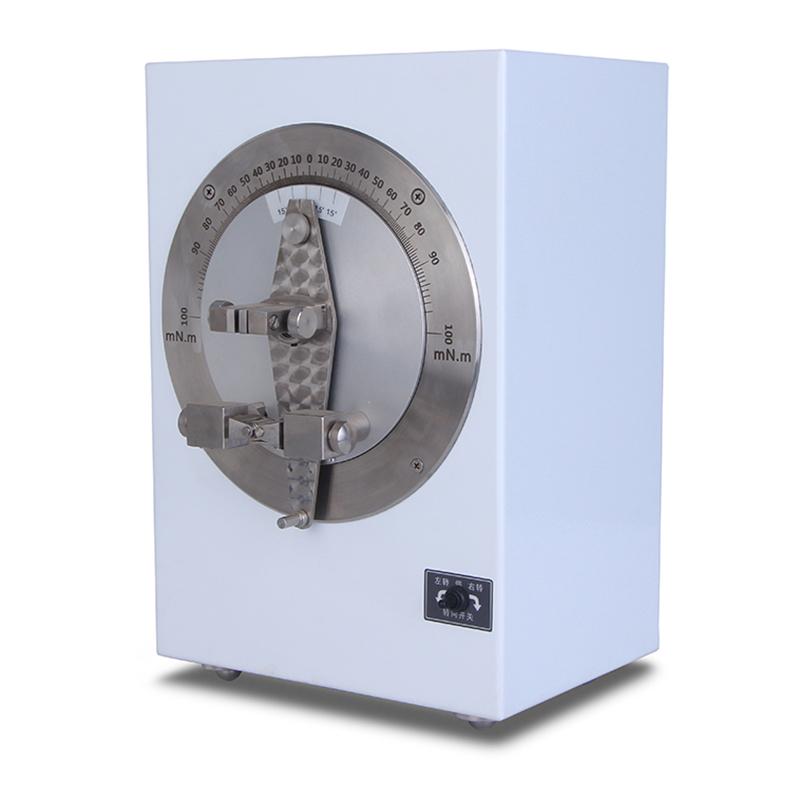

YANTE YT-TDY500 stiffness Tester Measurement range 1-500mN.m

YANTE YT-TDY500 stiffness Tester Measurement range 1-500mN.m, divided into seven gears, swing arm length of 100mm, YT-TDY500 stiffness Tester is suitable for paper and Cardboard bending strength indicators, is a special instrument for measuring Cardboard stiffness.
Model：
Certificate
Contact
Details SPEC CAT

YanTe YT-TDY500 Stiffness meterSPEC

YanTe YT-TDY500 Stiffness meterDetails

YanTe YT-TDY500 Stiffness meterPacking list

SKU
NB014925
Measurement range
1~500mN.m
error of indication
+/- 2% (10% to 90% of the upper limit of each measurement)
Indication variability
≤ 2% (10% to 90% of the upper limit of each measurement)
Swing arm length
100mm
network speed
（50±0.1）mm
Test speed
200°±20°/min
bending angle
7.5°±0.3、15°±0.3
Specimen size
70*38mm
environmental conditions
Temperature 20~40 ℃, Relative Humidity < 85%
Dimension
230*290*330mm
Net Weight
19.5 kg
YT-TDY500
Stiffness meter

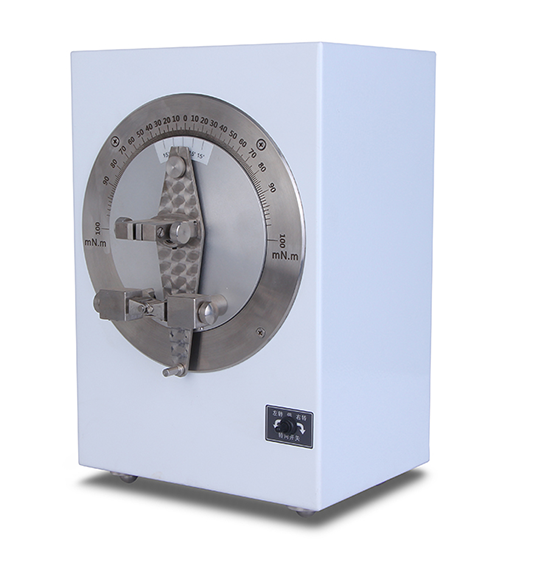

YANTE YT-TDY500 stiffness Tester Measurement range 1-500mN.m Picture

Application

YT-TDY500 stiffness Tester This instrument is suitable for the index of bending strength of paper and cardboard, and is a special instrument for measuring the stiffness of cardboard.

Product Features

  1. The instrument uses the left and right sides to measure and statistically average, and the data is more accurate

  2. The instrument adopts precision bearings to reduce friction

  3. Mechanical, economical


FAQ
QWhat is the sample size of this stiffness tester?
A Hello, the size is 70x38mm.
QDo you have the stiffness meter required by the GB/T23144 standard?
A This YT-TDY500 stiffness tester will do.
