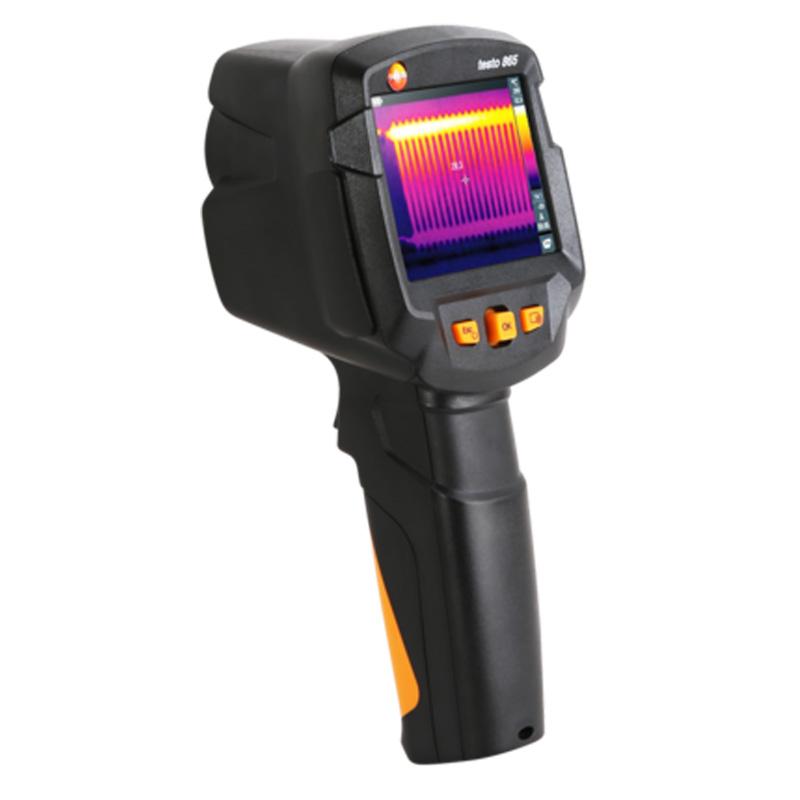

TESTO testo 865 Infrared thermal imager temperature range: -20 °~ 280 ℃
TESTO testo 865 Infrared thermal imager is a laboratory Infrared thermal imager with a temperature measurement range of -20 ° to 280 ℃, with an Accuracy of +/- 2 ℃ or +/- 2%. The testo 865 Infrared thermal imager is the word-of-mouth choice for floor heating plumbing and electrical fault detection.
Model：
testo 865
testo
testo testo 865 Infrared thermal imagerSPEC
testo testo 865 Infrared thermal imagerDetails
testo testo 865 Infrared thermal imagerPacking list
- SKU
- NB014970
- Temperature Measurement Range
- -20~280℃
- Accuracy
- ±2%
- Spatial resolution
- 3.4Mrad (minimum measurable object size: 5.1mm)
- Power Battery
- Lithium battery (can be replaced on site)
- Infrared resolution
- 160*120pixel
- Field of view
- 31°×23°
- Super infrared super pixel
- 320X240
- Super-IDOV (Wide Angle)
- 2.1Mrad (the minimum measurable object size is optimized to be 3.15mm)
- minimum focal length
- 0.5m
- Focus method
- Fixed autofocus
- Thermal Sensitivity
- <0.12℃
- Wavelength range
- 7.5~14μm
- Display
- 3.5LCD
- Color matching board
- 4 kinds
- image adjustment
- Manual/Automatic
- Cold/hot spot automatic search function
- √
- Temperature difference function
- √
- Temperature scale setting assistant
- √
- IFOV warning device
- √
- Interface
- USB
- storage device
- Built-in (2.8GB)
- file format
- BMT/JPGE (export format BMP/JPG/PNG/CSV/XLS)
- Battery life
- 4 hours
testo 865
Infrared thermal imager
Introduction
The testo 865 thermal imaging camera is the ready-to-use thermal imaging camera for the detection of floor heating pipes and electrical faults.
Scope of application

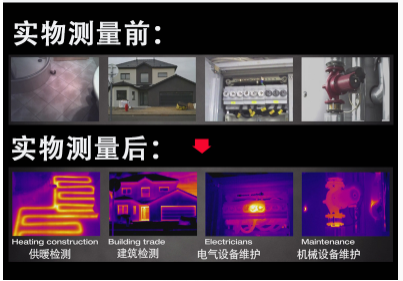

Floor heating pipeline inspection, building inspection, mechanical equipment inspection, electrical equipment testing, etc.
Useful features
German SUPER infrared pixel picture enhancement function.
German SCALEASSIST temperature scale setting assistant, assist setting to improve the contrast of the heat map.
Product Features
High resolution provides good images.
No focusing, instant aim-and-measure.
34° wide-angle lens for a wider measuring range.
Automatic tracking of hot and cold spots & automatic calculation of temperature difference
TESTO IRSOFT - PC IR SOFTWARE
FAQ
QDoes this one contain super pixel function?
A
Yes!
