JINGKELIAN QHD pendulum damping Tester with Konig pendulum as standard

Standard with a K pendulum, P pendulum needs to be customized, in line with ISO1522 and ZBN7 2020-86 standards.

$518.00/set

PromotionLoading...

Coupon

Model：

Certificate

JingKeLian

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

JingKeLian QHD Pendulum damping TesterSPEC

JingKeLian QHD Pendulum damping TesterDetails

JingKeLian QHD Pendulum damping TesterPacking list

SKU: NB001508

Swing bar type: Konig pendulum

Konig swing Mass: 200±0.2g

Konig swing period: 1.4±0.02s

Konig Glass Swing Time: 250±10s

Number of swings on Konig Glass: 178±7

Konig start and finish swing angle: 6°/3°

Persoz swing Mass: 500G (P pendulum needs to be customized, not standard)

Persoz swing cycle: 1 +/- 0.001S (P pendulum needs to be customized, not standard)

Persoz Glass Swing Time: ≥420s

Persoz Glass Swing Count: 420

Persoz start and end swing angle: 12°/4°

application standard: ISO1522、ZBN72020-86

QHD

Pendulum damping Tester

Standard with a K pendulum, P pendulum needs to be customized, in line with ISO1522 and ZBN7 2020-86 standards.

Overview of QHD pendulum damping Tester

The QHD pendulum damping Tester is designed by JinKeLian according to the standards ISO1522 and ZBN72020-86 to measure the paint film hardness of paints, varnishes and other related products. The pendulums are 200+0.2g and 500+0.1g respectively. The main structure of QHD pendulum damping Tester includes instrument base, pendulum, technical device and instrument cover.

Principle of pendulum damping Tester

The hardness of the paint film is based on the damping time (expressed in s) of the swing attenuation on the paint film when the pendulum rod in contact with the surface of the paint film swings at a certain period . If the surface is softer, the swing decay will be faster, and vice versa. . Note that there is no conversion relationship between the test results of Konig and Persoz pendulums with different structures, masses, sizes, and periods, because of the interaction between the pendulum and the coating. The effect also depends on the complex elasticity and viscosity of the coating. Therefore, in the product standard to measure the damping time of a certain paint film, only one kind of pendulum is specified.

Structural diagram of QHD pendulum damping Tester

1. Host

2. Starting handle

3. Ruler

4. Level adjustment feet

5. Timer

6. Photoelectric signal line

7. swing

8. Instrument cover

9. Pallet control handle

10. Shutter release

11. Photoelectric tube frame

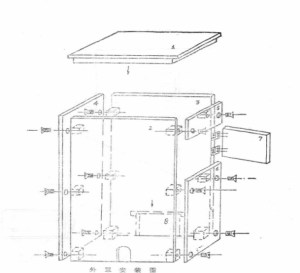

Installation drawing of plexiglass cover

QHD pendulum damping Tester plexiglass cover installation drawing

1. Upper cover

2. Front panel

3. Back panel

4. Left panel

5. Right upper panel

6. Right lower panel

7. side door

8. Back door

Display of QHD pendulum damping Tester

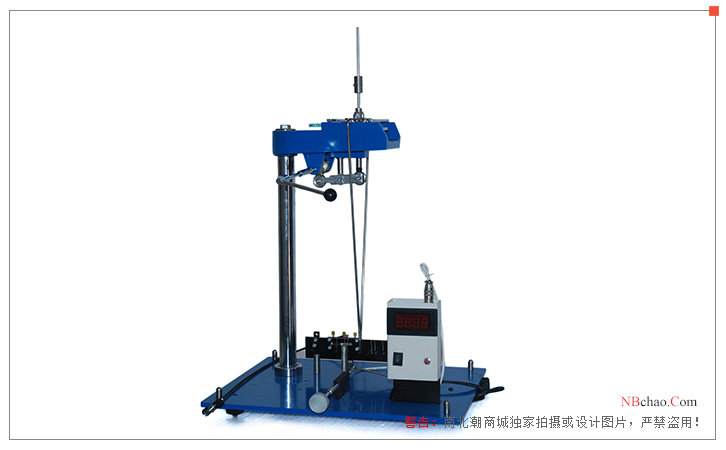

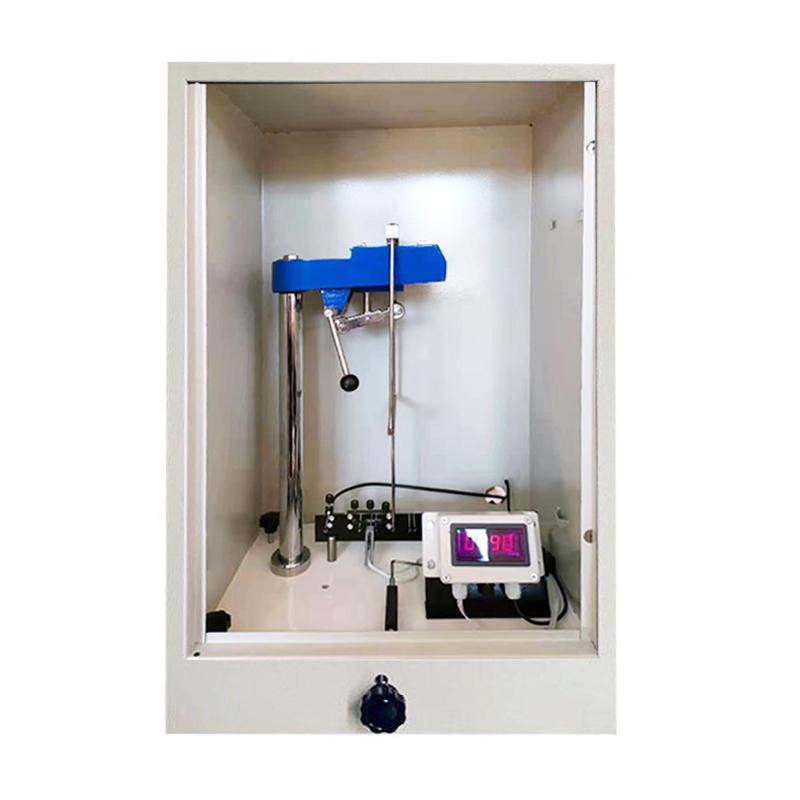

JinKeLian QHD Pendulum Damping Tester Appearance

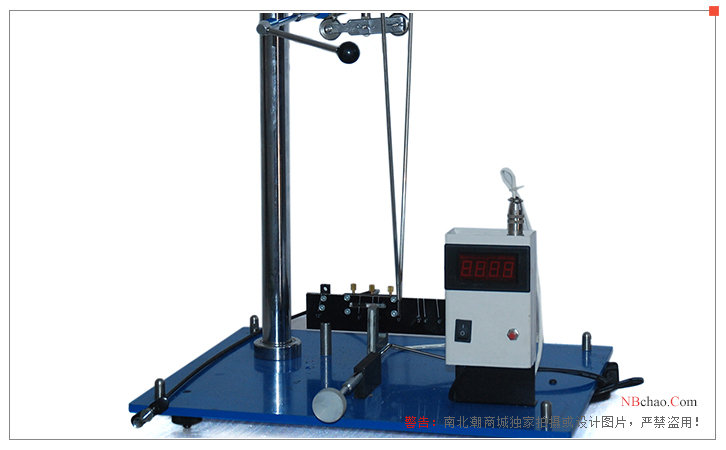

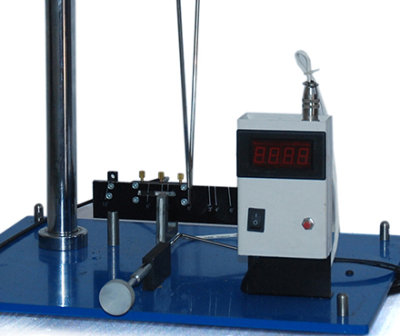

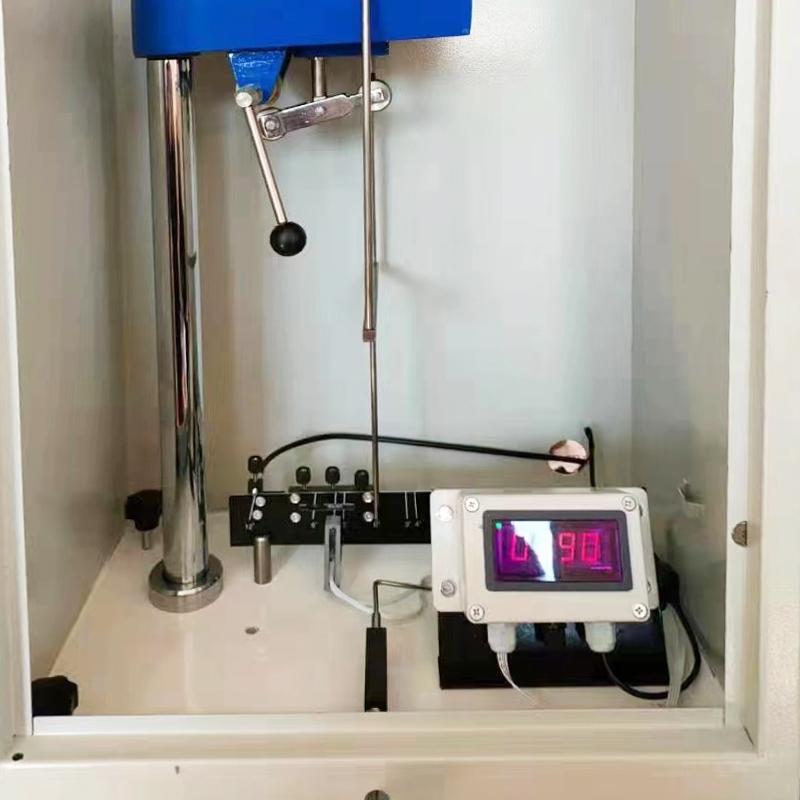

Details of JinKeLian QHD pendulum damping Tester

FAQ

QWhat is the difference between Koenig pendulum and Platinum Saatz pendulum in QHD pendulum damping tester?

A There are significant differences between the Koenig pendulum and the platinum saz pendulum in terms of the swing period, the total mass of the pendulum and the glass value of the pendulum. The swing period of the Koenig pendulum is 1.4 +/- 0.02 seconds, the total mass is 200 +/- 0.2 grams, and the glass value of the pendulum is 250 +/- 10 seconds. The swing period of the platinum saz pendulum is 1 +/- 0.001 seconds, the total mass is 500 +/- 0.1 grams, and the glass value of the pendulum is ≥ 420 seconds.

QThis one is fully automatic and semi-automatic.

A semi-automatic

QThis Pendulum hardness tester can add P pendulum, right?

A Can be added.

QQHD pendulum damping tester in the operation of what need special attention?

A Special attention should be paid to the following matters during operation: Glass should be cleaned before each use to avoid scratching Glass surface. Glass plates should be used regularly or before each test to verify that the instrument meets the specifications. The test is performed at a specific temperature (23 +/- 2 ° C) and relative humidity (50 +/- 5%), using an instrument cover. Avoid placing the instrument in a place irradiated by strong light to prevent external rays of light from affecting the normal operation of the photocell and counting device. Be careful not to arbitrarily change the position of the upper pendulum of the Koenig pendulum, as it will affect the swing period and can be adjusted if necessary to ensure that the period meets the requirements.

QDoes the JINGKELIAN Pendulum damping tester meet the JB/T9386 standard?

A The QHD Pendulum damping tester can refer to

QWhat can be used to clean the Glass plate of the Pendulum tester?

A Hello, you can use ether, ethanol, soluble gasoline to scrub, be careful not to scratch Glass surface.

QDoes the QHD Pendulum come standard with two different pendulums?

A Hello, the K pendulum is standard, and the P pendulum needs to be customized.
