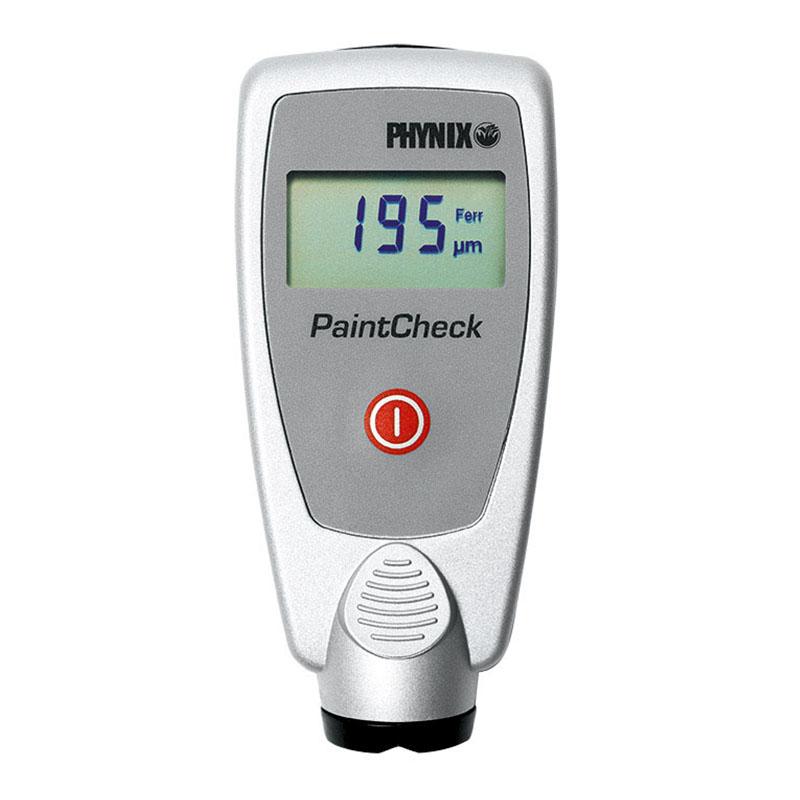

Germany PHYNIX PaintCheck plus F Film Thickness Gauge for iron-based paint layer
Measurement range 0~3000μm, error range +/- 5%, resolution 1µm | 2µm | 5µm, built-in probe, probe material is tungsten carbide, the shell is IP52 Protection level, with strong dust and water resistance.
Model：
PaintCheck plus F
PHYNIX
Similar products
-
IWAVE WH-81 Coating Thickness Gauge magnetic thickness measurement method 0~1250μm$ 164.00SE -
Defelsko PosiTest DFT Ferrous steel Coating Thickness Gauge nonmagnetic coatings$ 607.00SE -
German EPK MiniTest 600 B-F magnetic platings Thickness Gauge, thickness: 0~3000μm$ 846.00SE -
LEEB leeb252 Coating Thickness Gauge magnetic Induction/eddy Current dual-use automatic identification substrate
PHYNIX PaintCheck plus F Film thickness meter (enhanced)SPEC
PHYNIX PaintCheck plus F Film thickness meter (enhanced)Details

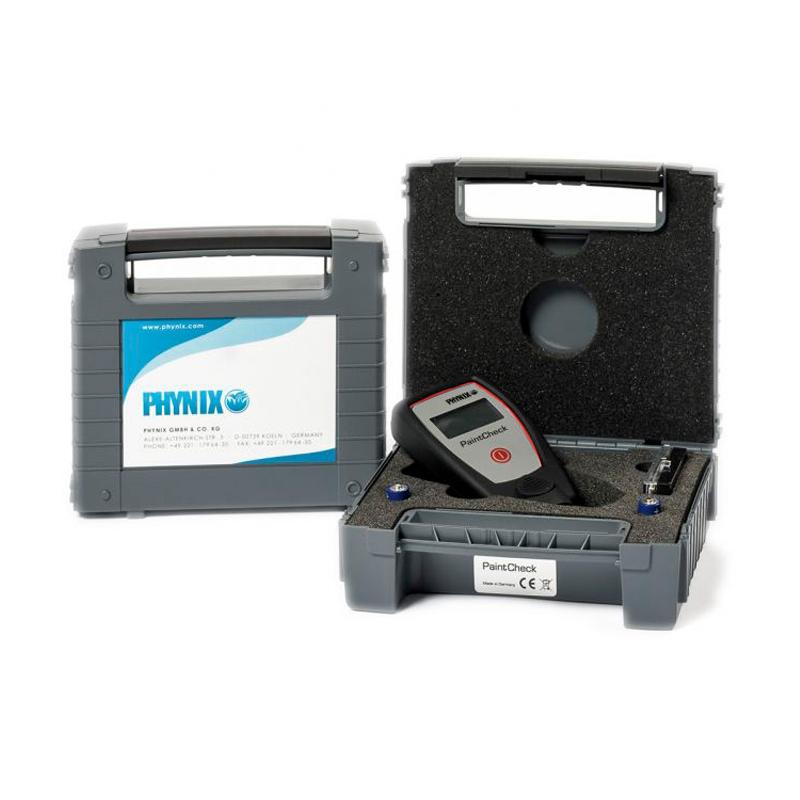

PHYNIX PaintCheck plus F Film thickness meter (enhanced)Packing list
- SKU
- NB001518
- Measurement principle
- magnetic Induction
- Measurement range
- 0~3000μm
- margin of error
- ±5%
- resolution
- 1µm|2µm|5µm
- Minimum radius of curvature
- Convex 25mm; Concave 50mm
- thinnest substrate
- 0.75mm(F)
- probe
- F integrated probe
- Power Supply
- 90 grams including battery
- Standards
- DIN、ISO、ASTM、BS
- Weight
- 90G (including battery)
- Dimension
- 110*50*25mm
- testing environment
- Iron/steel
- Calibrated mode
- Manufacturer calibrated
- Operating temperature
- 0~50℃
- Probe contact temperature
- -15~60℃
- Minimum headroom
- 125mm
- Minimum measurement surface
- 40*40mm
- Protection level
- IP52
PaintCheck plus F
Film thickness meter (enhanced)
Measurement range 0~3000μm, error range +/- 5%, resolution 1µm | 2µm | 5µm, built-in probe, probe material is tungsten carbide, the shell is IP52 Protection level, with strong dust and water resistance.
Overview of the PaintCheck plus F paint Film Thickness Gauge
PaintCheck plus F paint Film Thickness Gauge is a simple and strengthened paint Film Thickness Gauge imported from Phoenix, Germany, the measured substrate is an iron substrate, and the measured thickness range is 0~3000 microns. The PaintCheck plus F paint Film Thickness Gauge is a built-in probe made of tungsten carbide and an IP52 housing with strong dust and water resistance.
Features of the PaintCheck plus F Paint Film Thickness Gauge
1) Measure magnetic metal substrates such as iron/steel
2) The measuring probe is large and stable, and it can be measured by calibration
3) Tungsten carbide super wear-resistant probe is adopted
4) Comply with DIN, IS0, ASTM, BS standards

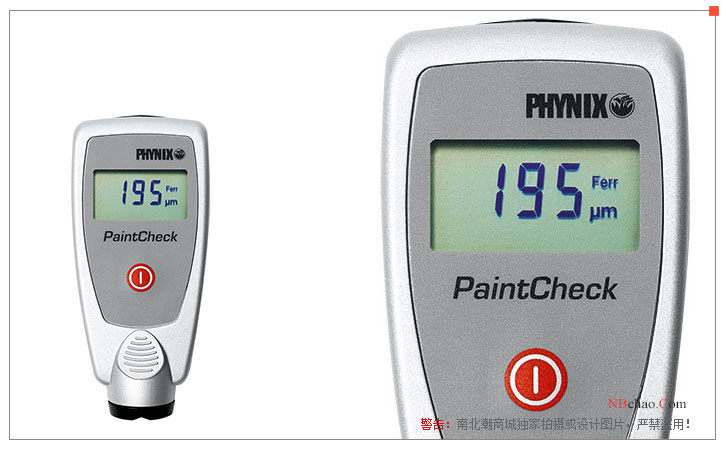

Illustration of the PaintCheck plus F paint Film Thickness Gauge
FAQ
QWhat is the thinnest substrate Film thickness that the PaintCheck puls F film thickness gauge can test?
A
Hello, the minimum substrate Film thickness tested by this thickness gauge is 0.75mm.
QWhat do the N, X and S displayed by the PHYNIX PaintCheck puls F model thickness gauge mean?
A
Hello, N represents the number of measurements, X represents the average of all measurements, and S represents the standard deviation.
QPhoenix PaintCheck puls F What material is the probe of this film thickness gauge?
A
Hello, it is a carbide super wear-resistant probe.
