German PHYNIX Surfix easy E-F easy-to-use external probe Iron-based Film thickness meter

Measurement range 0~3500 µm, error range +/- 2%, resolution 1μm, the minimum measurement surface φ 10mm, high quality products imported from Germany, is a professional statistical measurement of magnetic metal substrate Film thickness meter.
Contact
Details SPEC CAT OI
Similar products

PHYNIX Surfix® easy E-F Easy-to-use external probe Iron-based Film thickness meterSPEC

PHYNIX Surfix® easy E-F Easy-to-use external probe Iron-based Film thickness meterDetails

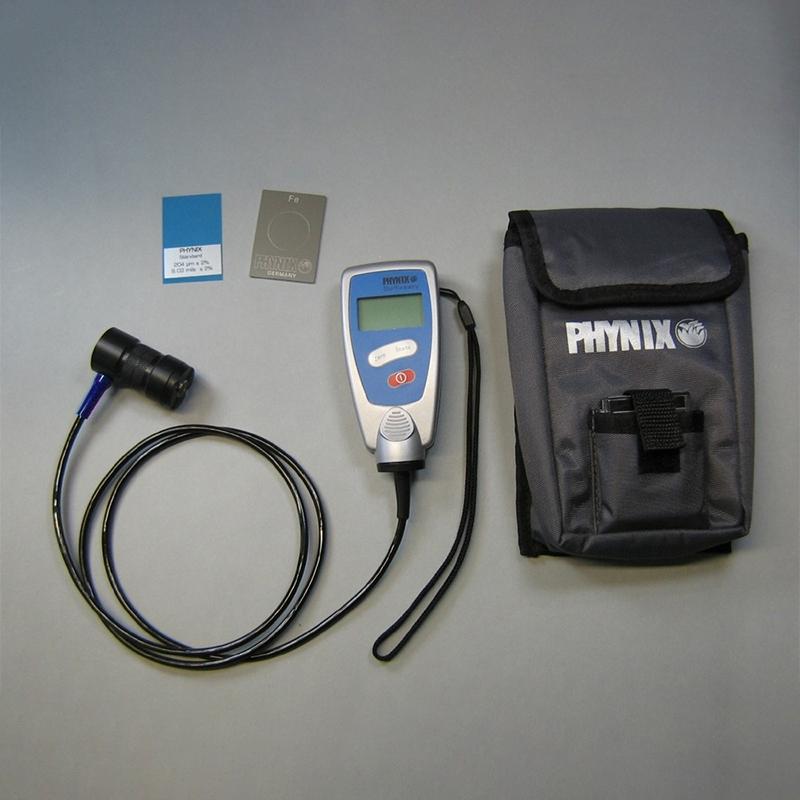

PHYNIX Surfix® easy E-F Easy-to-use external probe Iron-based Film thickness meterPacking list

SKU
NB001523
Measurement principle
magnetic Induction
Measurement range
0~3500µm
margin of error
±2%
resolution
1μm
Minimum measurement surface
Φ10mm
Minimum radius of curvature
Convex 2mm; concave 50μm
thinnest substrate
0.5mm
probe
Wired probe
statistical function
MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
none
Power Supply
2 * AAA Battery
Standards
DIN、ISO、ASTM、BS
Calibrated Certificate
Production inspection Certificate
system language
German, English or French
Display screen
Monochrome ink screen
Weight
140G (including battery)
Dimension
110*50*25mm
Surfix® easy E-F
Easy-to-use external probe Iron-based Film thickness meter
Measurement range 0~3500 µm, error range +/- 2%, resolution 1μm, the minimum measurement surface φ 10mm, high quality products imported from Germany, is a professional statistical measurement of magnetic metal substrate Film thickness meter.

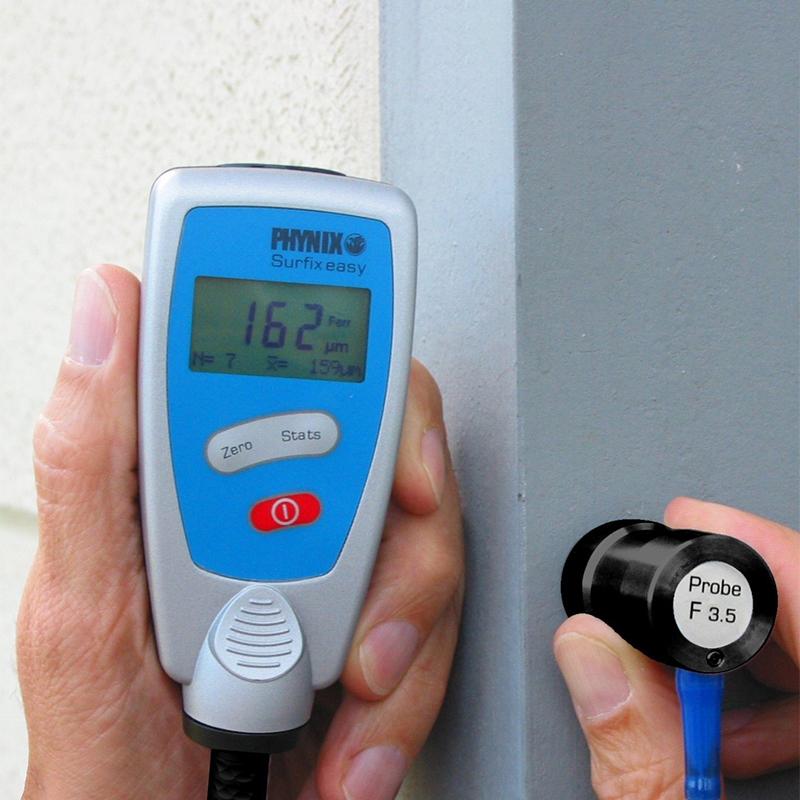

German PHYNIX Surfix easy E-F easy-to-use external probe Iron-based Film thickness meter Picture

PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany


Coating Thickness Gauge selector

overview

PHYNIX, GermanyEasy-to-use external probe iron-based Film Thickness GaugeSurfix easy E F, as a high-quality product imported from Germany,It is a professional statistical film thickness meter for measuring magnetic metal substrates.Surfix easy E FEasy-to-use external probes The external probe is a carbide probe with a V-shaped groove in the front plastic cap to ensure stable and vertical positioning on horizontal, cylindrical or curved surfaces.Surfix easy E FThe measurable film thickness range is 0~3500 microns.

Surfix easy E F application

Suitable for measurements in rough environments or laboratories, especially in hard-to-reach areas, specific application areas include:

• Product inspection

• Production process

•laboratory

• Paint shop

• Final inspection and quality control

• Paint and powder coating processes

• Automotive appraisal and auto repair shops

• Steel Structure, Automobile Manufacturing and Shipbuilding

Surfix easy E F features

1) It can be measured at start-up

2) It can measure horizontal, rough and curved surfaces at the same time

3) For iron/steel coating thickness measurement

4) No calibration required

5) The contact area is large and the positioning is accurate

6) Sound signal is emitted during measurement

7) Switchable μm/mils

8) Big manufacturer test certificate

9) With four statistical values:Mean, standard deviation, minimum, maximum

Illustration of the Surfix easy E F

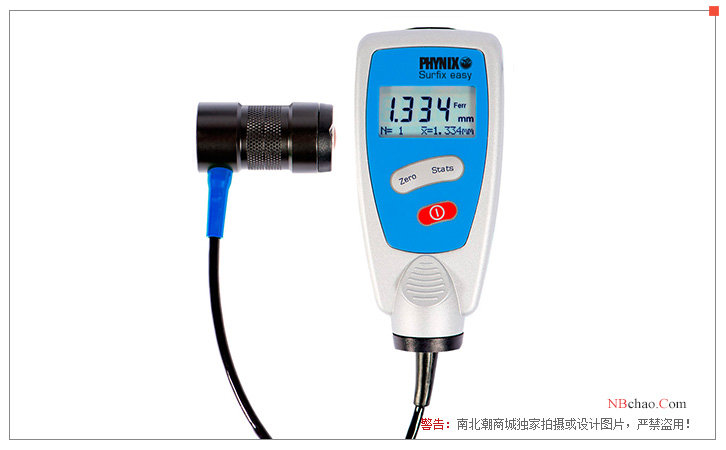

Exterior drawing of the German PHYNIX Surfix easy E F statistical Film Thickness Gauge

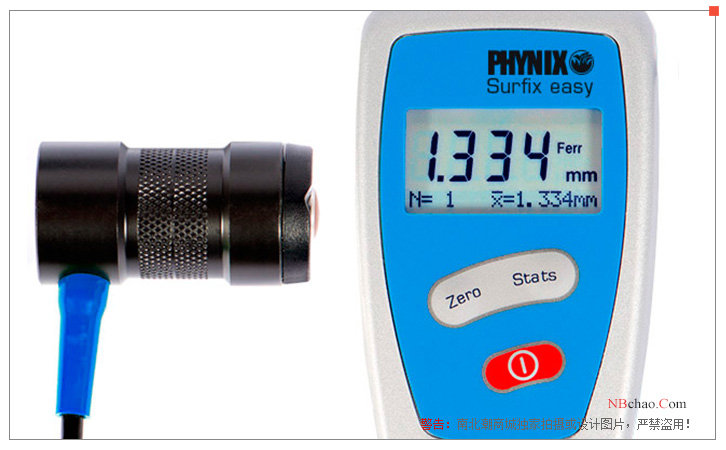

Detail of the operation panel of the German PHYNIX Surfix easy E F statistical film thickness meter


FAQ
QIs this Coating thickness gauge imported from Germany? What is the test principle?
A Hello, PHYNIX Surfix easy E F Coating thickness gauge is imported from Germany. We are its authorized online direct sales mall. This one adopts the principle of magnetic induction thickness measurement.
QWhat is the measurement accuracy of the Surfix easy E F film thickness meter? Is the film thickness around 2100μm suitable for testing?
A Hello, it can be tested. The thickness measurement range of this Surfix easy E F film thickness instrument is 0~ 3500 μm, and the measurement accuracy is 1 μm or 2 μm or 5 μm. The accuracy of different Film thickness ranges is different. You can take a look at the specification parameter table on this product page.
QPHYNIX Surfix easy E-F This model thickness gauge can test the film thickness of curved workpieces?
A Hello, yes. This Surfix easy E-F film thickness instrument can simultaneously measure horizontal, rough and curved surfaces. The minimum curvature radius of convex surfaces is 5mm, and the minimum curvature radius of concave surfaces is 50mm.
