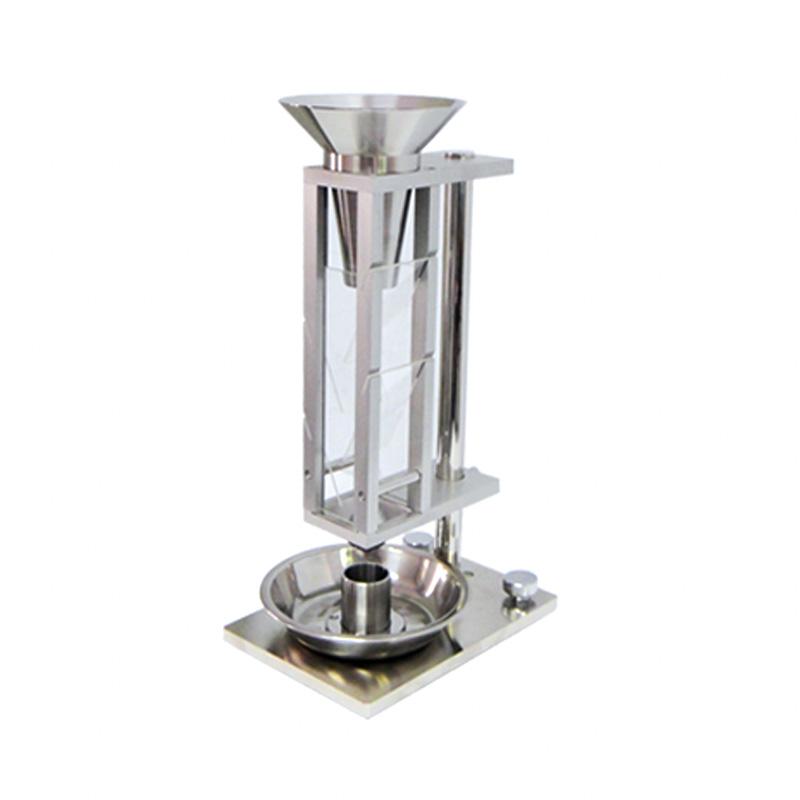

HYLOLOGY HYL-101 Scott Loose Density Meter Powder Loose Density Test

HYL-101

Scott Loose Density Meter

In line with the national standard GB5060-85 design, 304 stainless steel funnel, Cube funnel and quartz Glass baffle to ensure test accuracy and stability. The equipment has an easy-to-clean design, easy to operate, and is suitable for high-accuracy powder Density testing.

Introduction

HYL-101 Scott volumetric bulk density Tester is a powder bulk density Tester developed by our company according to the national standard GB5060-85 (Measurement of bulk density of metal powder—Part II: Scott volumetric method) test device. Its indicators are in line with the provisions of national standards.

principle

The powder is put into the sieve in the upper combination funnel, flows into the distribution box naturally or by external force, alternately passes through the four quartz glass plates with an inclination angle of 25° and the square funnel in the distribution box, and finally flows into a cylindrical cup with a known volume. In a loose state. The mass of powder in the cylindrical cup is then weighed.

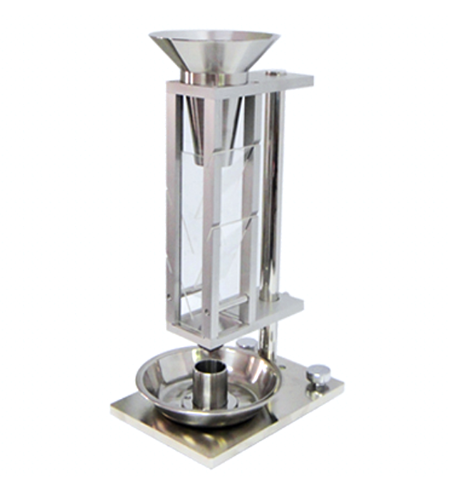

Instrument structure

(1) Upper Combination Funnel

It is assembled by two stainless steel (304 material) conical funnels, the diameter of the upper port is Φ112mm, the diameter of the lower port is Φ30mm, and the Total length is 30+850mm. Screen: 1.18mm stainless steel screen.

(2) Fabric box

The cross-section is square, and there are four 2mm thick quartz glass baffles obliquely inlaid on the aluminum frame. The front and rear walls of the frame are plexiglass plates; the four quartz glass plates can be pulled out for easy cleaning.

(3) square funnel

The 1mm thick stainless steel (304 material) plate is welded, the inclination angle is 60° square cone, and the diameter of the lower port is 12.5mm×12.5mm.

(4) Cylindrical cup

The volume is 25±0.05ml, made of stainless steel (304), and the net weight is 46±1g.

(5) iron stand

Used to support the upper combination funnel, cloth box, square funnel, cylindrical cup and other components.

(6) balance

It is used to weigh powder samples, the maximum weight is 1Kg, and the accuracy is 0.02g (users can prepare by themselves).

Packing list：Host X1, funnel component X1, cylindrical glassgraduates with scale X1, scraper X1, brush X1, warranty card X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
