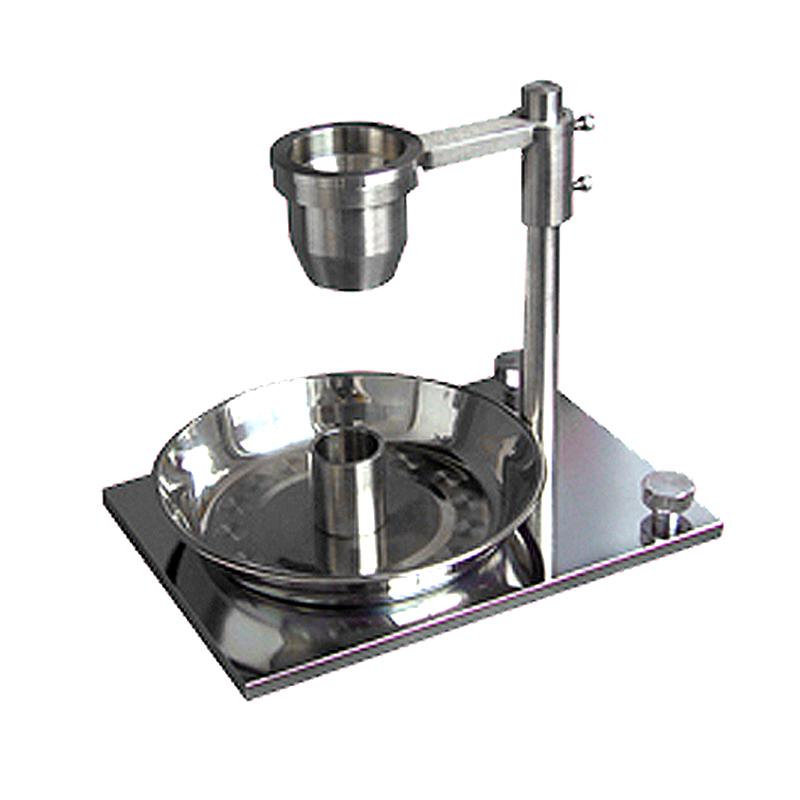

HYLOLOGY HYL-102 Hall flow meter, determination of metal powder flowability

HYL-102

Hall flow meter

Designed according to the national standard GB 1482-84, the standard funnel aperture is 2.5mm, made of stainless steel, equipped with stopwatch with accuracy up to 0.01 seconds, Balance with maximum weighing of 1000g, and 25ml glassgraduates with scale in line with GB 1479-84 standard to ensure the accuracy and efficiency of testing.

Introduction

HYL-102 Hall flow meter is designed and produced by Dandong Haoyu Technology Co., Ltd. in accordance with the provisions of the national standard GB 1482-84. This device is suitable for measuring the fluidity of metal powder by the standard funnel method. Any powder that can freely flow through a standard funnel with a hole diameter of 2.5mm can be used with this device, and the bulk density of the powder can be tested with a 5.0mm funnel.

principle

The fluidity of metal powder is expressed by the time required for 50g of metal powder to flow through a standard funnel of specified aperture.

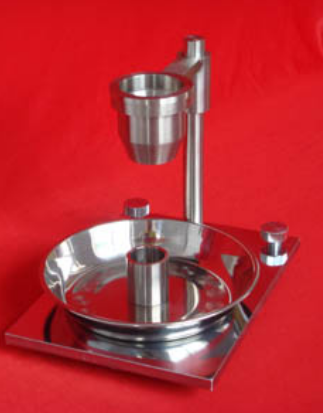

Instrument structure

• Funnel (small hole diameter 2.5mm), the funnel is made of stainless steel, and has sufficient wall thickness and hardness to prevent deformation and excessive wear.

• Bracket, base and receiver, the bracket is used to fix the funnel. The base is used to install the stand and receiver, please adjust it level, stable and without vibration. Adjust the stand height and hold it with the included wrench to install the funnel to the stand. The receiver (stainless steel pan) is placed on the base to collect the powder.

• Balance (user-provided), maximum weighing 1000g; accuracy 0.05g.

• Stopwatch, the measurement time can be accurate to 0.01s.

• Measuring cup, this device is equipped with a stainless steel measuring cup with a capacity of 25ml. Users can refer to the provisions of the national standard GB 1479-84 to complete the determination of the bulk density of metal powder (funnel method).

Packing list：Host X1, ironsupport X1, funnel X2, glassgraduates with scale X1, bracket X1, stopwatch X1, overflow tray X1, wrench X1, brush X1, warranty card X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
