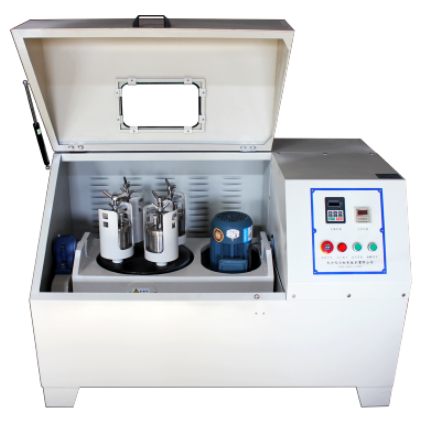

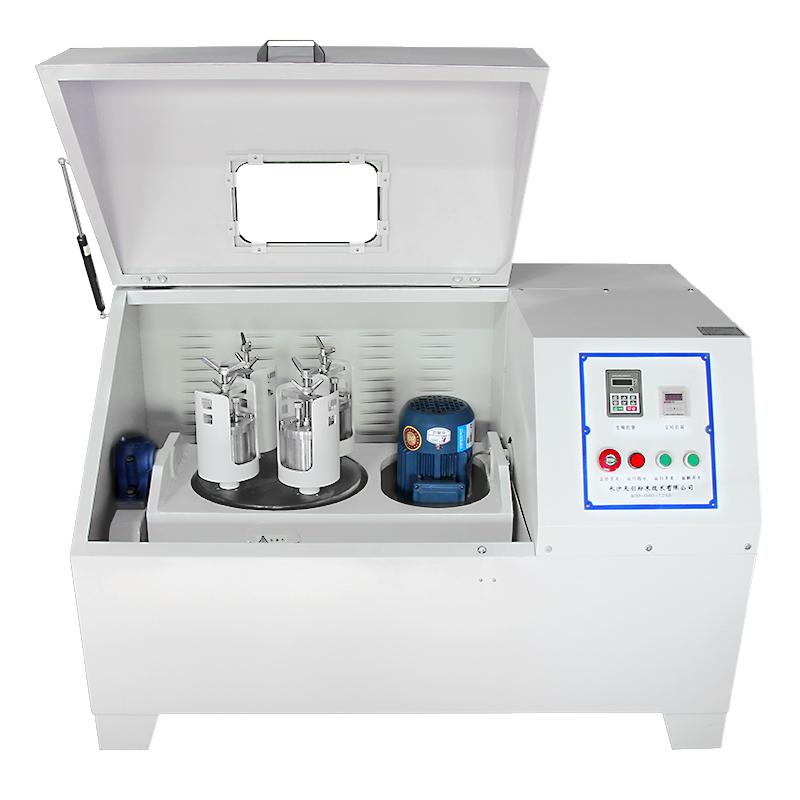

TENCAN Powder QXQM-8 Omnidirectional Planetary Ball mill
QXQM-8
TENCAN Powder QXQM-8 Ball millSPEC
TENCAN Powder QXQM-8 Ball millDetails
TENCAN Powder QXQM-8 Ball millPacking list
- SKU
- NB015291
- Transmission mode
- gear drive
- Operating Mode
- Two or four ball milling tanks work simultaneously
- Maximum sample loading
- Two-thirds of the Volume of the ball mill tank
- Ball mill tank Volume
- 0.05L-25L per can, total Volume 0.2L-100L
- Feed particle size
- Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
- Minimum discharge particle size
- 0.1μm
- Speed regulation mode
- Frequency conversion stepless speed regulation
- Processing Capacity
- 8L

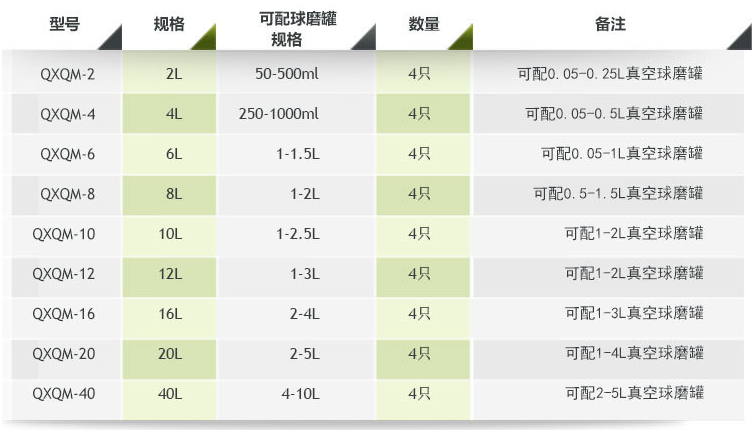

- Can be equipped with ball mill tank specifications
- 1~2L
- station number
- 4pcs
- Can be equipped with ball mill tank specifications
- 0.05~1.5L
- Power
- 220V-50HZ
- Inverter Power
- 1.5kw
- Total running time
- 1-9999min
- alternate running time
- 1~999min
- Adjustable Rotation speed - revolution
- 35~290rpm
- Noise level
- 60±5dB
- Motor Power
- 1.5kw
- Speed regulation mode
- Frequency conversion speed regulation
- Device Weight
- 420kg
- Equipment Volume
- 1360*850*930mm
- Adjustable Rotation speed - Rotation
- 70~580rpm
Introduction
The all-round planetary ball mill is based on the vertical planetary ball mill and adds a planetary disk flip function. While the planetary disk and the ball mill tank are performing planetary motion, they can also perform a 360° tipping bucket flip within a three-dimensional space to realize the ball mill tank. Multi-dimensional and multi-directional motion improves the degree of disordered movement of the grinding ball and materials. The entire material is ground in the grinding pot without dead corners, making the ground materials more even and fine, and can solve the problem of some materials sinking to the bottom and sticking to the pot.
Applications
All-round planetary ball mills are widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. They are suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, and catalysts. , Phosphor powder, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO Production field of varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor powder, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.
Features
The equipment shell has a professional appearance design and industrial shape, and is leanly manufactured, exquisite and precise; the machined parts adopt CNC processing technology, and the transmission gears are made of special materials and precision gears to ensure that the equipment is stable, safe and low-noise when running at high speed; the flipping motor is equipped with a brake lock The stop function can realize turning and stopping at any angle, which is safe and reliable.
