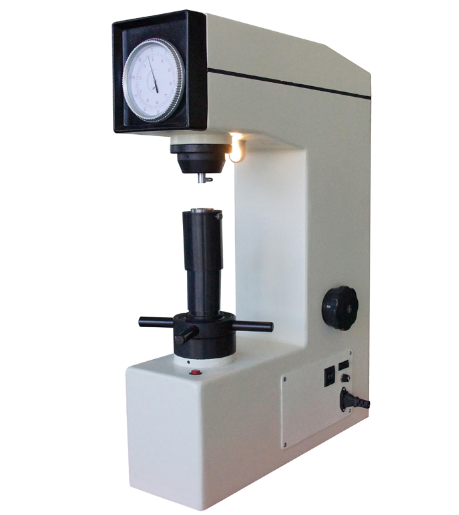

AOLONGXINGDI HRM-45DT Simple digital display electric surface Rockwell Hardness Tester

HRM-45D(S)

Simple digital display electric surface Rockwell Hardness Tester

Introduction

A Hardness Tester is a testing instrument used to determine the hardness of a material, while a hardness test is a means to judge the quality of a metal material or product part. The so-called hardness is the ability of a material to resist the press-in of another object that does not have residual deformation itself under certain conditions. The greater the resistance, the higher the hardness, and vice versa, the lower the hardness.

In the mechanical property test, measuring hardness is the easiest, most economical, and fastest method, and it is also one of the measures to check the quality of products in the process of machinery manufacturing. Since the hardness of metals corresponds to other mechanical properties, most metal materials can be approximated by determining hardness to deduce other mechanical properties, such as strength, fatigue, creep, wear, and internal damage.

Scope of application

It is suitable for surface quenched steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome-plated, tin-plated materials, bearing steel, cold hard castings, etc.

Features

● Precise, reliable and durable

●Sturdy structure, good rigidity

● Hardness resolution 0.5 Rockwell units

●A clockface direct reading: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

●External test force selection knob, easy to operate

●Precision oil pressure buffer, loading speed adjustable

●The large test space allows for the placement of large specimens

●Wide range of application, easy to operate, good economy and practicability

●Accuracy in accordance with GB/T230.2 ISO 6508 and American ASTM E18

●The standard configuration is complete, which can meet the test requirements of all scales

●External lighting source, the test point can be clearly seen

Packing list：Whole machine X1, diamond Rockwell indenter X1, Hardness block X4, Xiaoping test bench X1, weight X3, diameter 1.5875mm steel ball indenter X1, large flat test bench X1, V-shaped test bench X1, fuse X2, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
