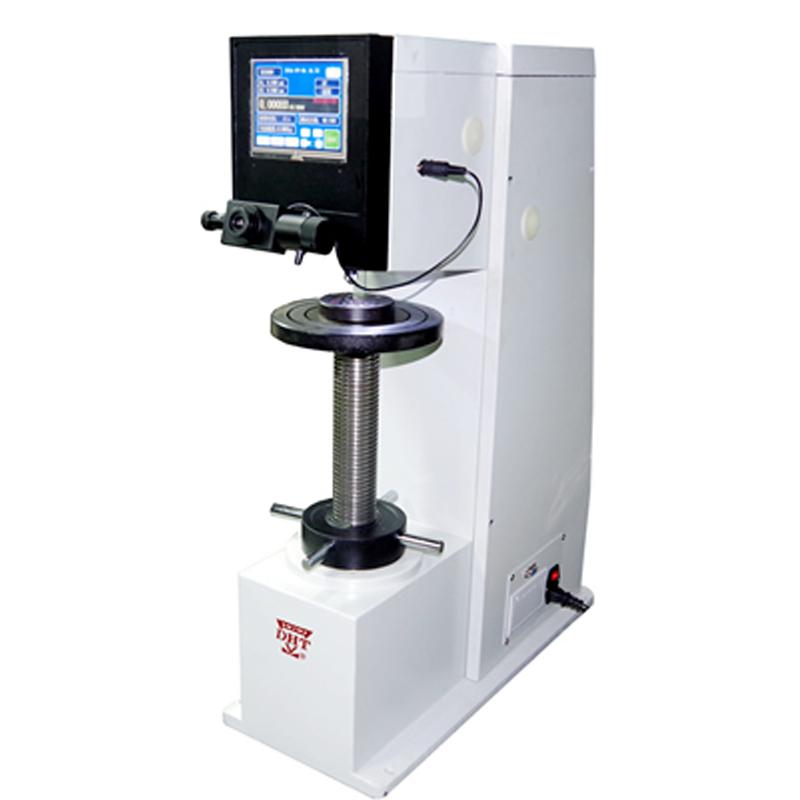

SMTMF MHBS-3000 Touch screen digital display Brinell Hardness Tester Hardness range 8~ 650HBW
MHBS-3000
SMTMF MHBS-3000 Touch screen digital display Brinell Hardness TesterSPEC
SMTMF MHBS-3000 Touch screen digital display Brinell Hardness TesterDetails
SMTMF MHBS-3000 Touch screen digital display Brinell Hardness TesterPacking list
- SKU
- NB015546
- Brinell scale
- HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、HBW10/100、HBW10/125、HBW10/250、 HBW10/500、 HBW10/1000、HBW10/1500、HBW10/3000、
- test force
- 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf
- test force
- 612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N
- Conversion Ruler
- HRA、HRB、HRC、HRD、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、 HR30T、HR45T
- Measurement unit
- 1um
- Test force holding time
- 0~60s
- Hardness testing range
- 8~650HBW
- Microscope magnification
- 20X
- execution standard
- ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2
- Hardness reading
- liquid crystal display
- Interface
- Built-in printer
- Power Supply
- AC220+5%、50~60Hz
- Distance from the center of the indenter to the body
- 135mm
- Maximum height of specimen
- 275mm
- Dimension
- 565*245*786mm
- Host Weight
- 130kg
Introduction
The touchscreen digital Brinell Hardness Tester is mainly used to measure the Brinell hardness of materials. Brinell measurement is mainly used to measure castings or forgings with a crystalline structure that cannot be tested using Rockwell and Vickers measurements. For this reason, Brinell testing is mainly used on large materials. By using different forces and changing different indenters, Brinell tests can be applied to almost all metal materials.
Brinell testing is widely used in product acceptance and other industrial applications. However, if the Brinell test is performed only on one part of a large material, the measured value is not representative of the overall properties of the material as a whole or the final product.

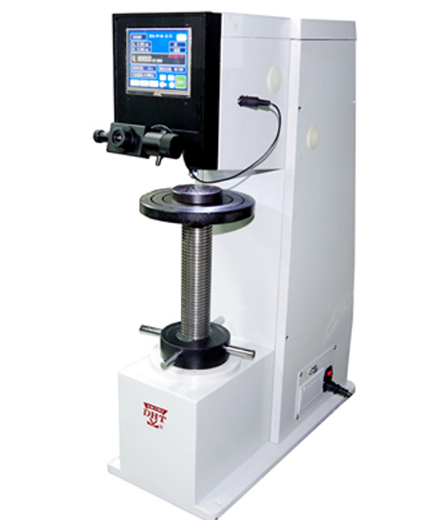

Touchscreen digital display Brinell Hardness Tester. It is suitable for Brinell hardness determination of ferrous metals and non-ferrous metals. The machine adopts electronic automatic loading, computer software programming, high-magnification optical measurement, photoelectric sensing and other systems, which are fed back by high-precision pressure sensors, controlled by CPU and can automatically compensate for the test force lost in the test. The hardness value can be automatically calculated and displayed on the LCD screen, with accurate reading and easy operation.
Features
●Force sensor, force feedback, closed-loop system
●Force range: 62.5kgf~3000kgf
●The data of each operation process and test results can be displayed on the screen
●The data of the experimental results can be output by the printer
●High-precision micrometer eyepiece, more accurate measurement and high efficiency
●The video measuring device and CCD image automatic measurement system can be configured according to the special needs of users
Scope of application
It is mainly used for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys, and can also be used for the determination of the hardness of some non-metallic materials such as hard plastics and bakelites.
| Standard configuration | |||
name | quantity | name | quantity |
| 20X micrometric eyepiece | 1 pc | Ф2.5, 5, 10mm carbide ball indenter | 1 each |
| Standard hardness blocks | 3 pieces | Large, medium and V-type test benches | 1 each |
| Fuse 2A | 3 pcs | Printer manual | 1 serving |
| Power cord | 1 root | RS232 wiring | 1 root |
| Instruction manual for the product | 1 serving | Product Certificate | 1 serving |
