SMTMF HB-3000Plus large field automatic Brinell Hardness Tester

SMTMF HB-3000Plus large field automatic Brinell Hardness Tester with a maximum height of 300mm and a minimum Measurement unit of 0.005mm, HB-3000Plus is a large field automatic Brinell Hardness Tester suitable for factories, workshops, laboratories, Universities & colleges and scientific research institutions.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF HB-3000Plus Brinell Hardness TesterSPEC

SMTMF HB-3000Plus Brinell Hardness TesterDetails

SMTMF HB-3000Plus Brinell Hardness TesterPacking list

SKU
NB015549
Brinell scale
HBW2.5/187.5、HBW10/250、HBW10/500、HBW5/750、HBW10/1000、HBW10/3000
test force
187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N)、1000kgf(8907N)、3000kgf(29420N)
loading method
Automatic loading, foot switch control
Maximum height of specimen
300mm
Workbench size
400*380mm
Measurement unit
0.005mm
Load time
15S (adjustable)
15S (adjustable)
8~650HBW
Microscope magnification
20X
execution standard
EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2，JJG150
Distance from the center of the indenter to the body
210mm
Hardness reading
Look up the table or use it with the Brinell measurement system
Power Supply
AC220+5%,50~60Hz
Dimension
550*236*750mm
Host Weight
123kg
HB-3000Plus
Brinell Hardness Tester

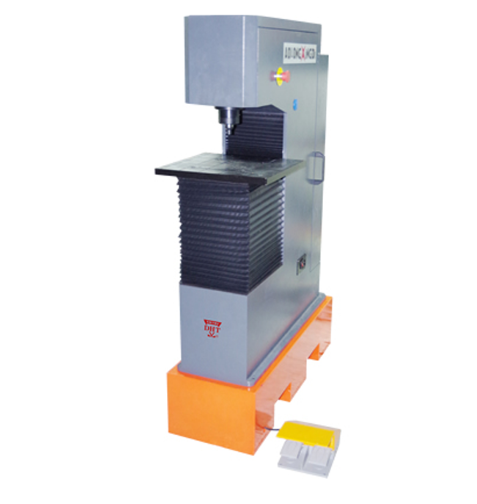

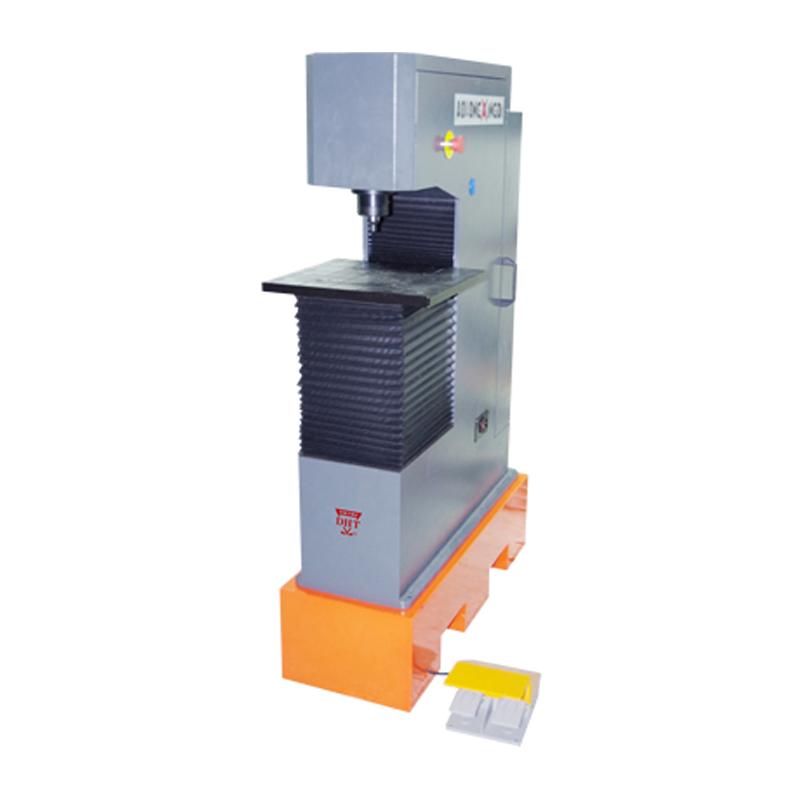

SMTMF HB-3000Plus large field automatic Brinell Hardness Tester Picture

Introduction

The large-scale on-site Brinell hardness test is mainly used for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys, and can also be used for the determination of the hardness of some non-metallic materials such as hard plastics and bakelites. The Hardness Tester adopts the loading force value of the loaded weight, which has good stability and higher accuracy. It is suitable for factories, workshops, laboratories, colleges and universities and scientific research institutions.

Donghua HB-3000Plus Large Field Automatic Brinell Hardness Tester

Features

●The test is mainly used for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys;

●The product has good stability, reliability and durability are much higher than similar products;

●The machine has a large test space, up to 300mm;

●High-precision large workbench can be automatically lifted;

●Large worktable, which can measure large workpieces;

●The weight loading force value is adopted, which is more stable;

●With foot-operated switch design, one-key measurement, fast measurement speed, more suitable for production site use;



Standard configuration


name

quantitynamequantity
Standard hardness blocks3 piecesФ2.5, 5, 10mm carbide ball indenter1 each
Product Certificate1 serving400*380mm workbench1 pc
Fuse 2A3 pcs20x reading microscope1 pc
Power cord1 rootInstruction manual for the product1 serving
