SMTMF MHVS-1000 Touch Screen Digital Display Microscope Hardness Tester 5~ 5000HV

The minimum resolution of SMTMF MHVS-1000 digital display microscopic Hardness Tester is 0.01 μm, and the hardness testing azimuth is 5~ 5000HV. MHVS-1000 is a laboratory touchscreen microscopic Hardness Tester for testing the Hardness of Glass, Ceramics, Agate, Artificial Gems, etc. MHVS-1000 Microscopic Hardness Tester can be used as the choice of microscopic Vickers and Knoop Hardness scale.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF MHVS-1000 Touch Screen Digital Display Microscopic Hardness TesterSPEC

SMTMF MHVS-1000 Touch Screen Digital Display Microscopic Hardness TesterDetails

SMTMF MHVS-1000 Touch Screen Digital Display Microscopic Hardness TesterPacking list

SKU
NB015588
test force
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
execution standard
GBT4340.1，GBT4340.2，ASTM_E92
Hardness testing orientation
5~5000HV
Test force application method
Automatic (loading, retaining, unloading)
indenter objective lens switching
manual
Microscope magnification
100X (for observation) 400X (for measurement)
Test force holding time
0~60s
Minimum resolution
0.01μm
Maximum height of specimen
120mm
Maximum width of specimen
110mm
Power Supply
AC220V+5%，50-60Hz
Dimension
441*270*480mm
Host Weight
31kg
MHVS-1000
Touch Screen Digital Display Microscopic Hardness Tester

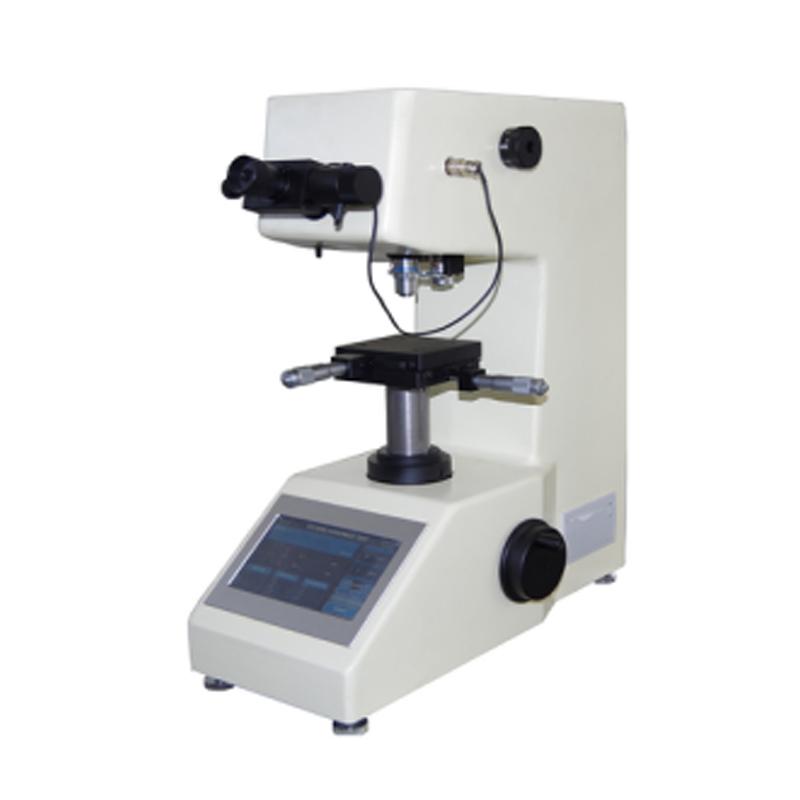

SMTMF MHVS-1000 Touch Screen Digital Display Microscope Hardness Tester 5~ 5000HV Picture

Introduction

MHVS-1000 digital microHardness Tester adopts large display LCD display, and the operation interface adopts menu-type structure, which is suitable for measuring the microhardness of tiny, thin, surface permeated coating specimens and the Knoop hardness of glass, ceramics, agate, artificial gemstones and other brittle and hard materials.

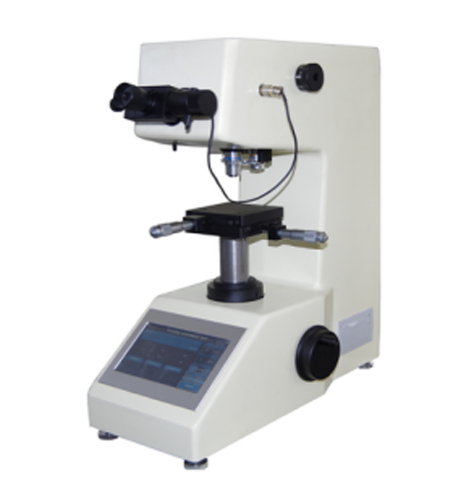

Donghua MHVS-1000 Touch Screen Digital MicroHardness Tester

Features

 Selection of microscopic Vickers and Knoop hardness scales

 The hardness value of the test, automatically calculated, and displayed automatically

 The test point is automatically positioned accurately

 According to different materials, the hardness can be selected to convert the comparison

 Adopt adjustable cold light source measurement system, etc

namequantitynamequantity
Weight shafts1 rootweight6 pcs
Cross test bench1 pcSheet clamping table1 pc
Flat clamping table1 pcFilament blessing table1 pc
screwdriver2 handfulsHorizontal adjustment screws4 pcs
Power cord1 rootProduct Manual1 serving
10X micrometer eyepiece1 pcMicroscopic Vickers hardness block2 pieces
Spirit level1 pcSpare bulb (6V12W)2 pcs
Product Certificate1 serving
