SMTMF JMHVS-C Precision Gear Hardness Tester Test Force Up to 98N

JMHVS-C

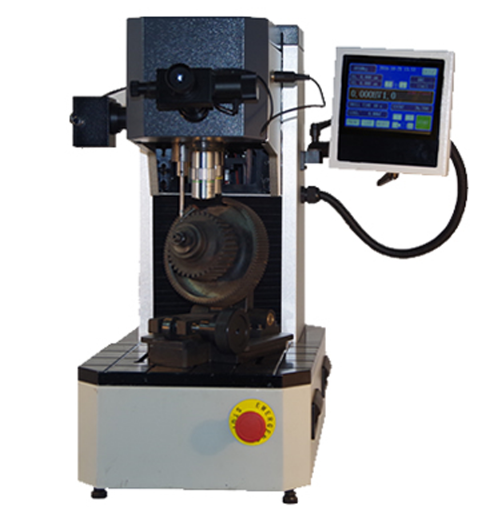

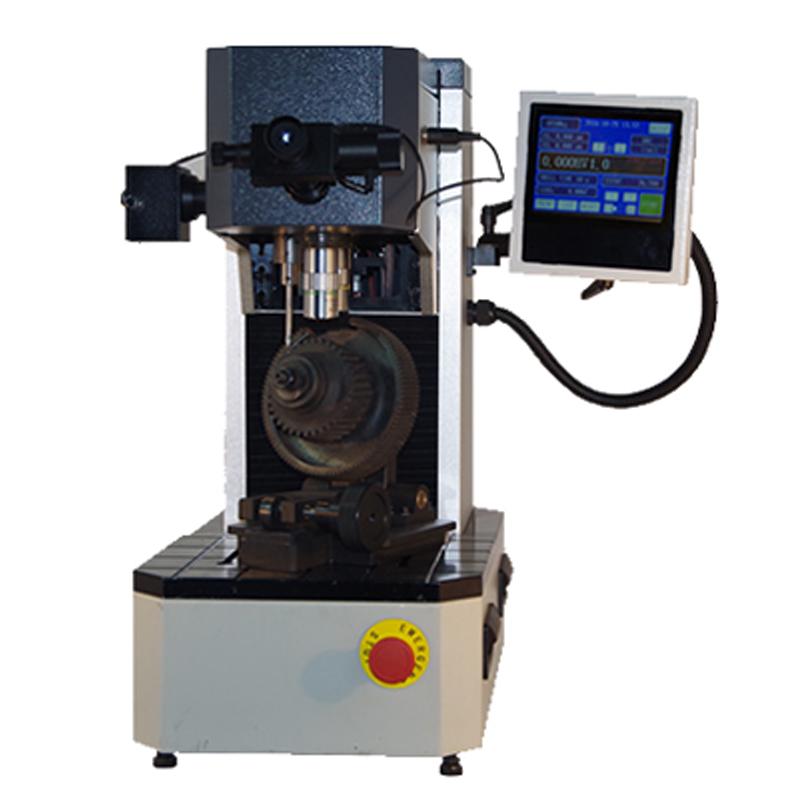

Precision Gear Hardness Tester

Introduction

JMHVS-C precision gear Hardness Tester is a high-tech product of optical mechatronics, the instrument is novel and beautiful, and it has good reliability, operability and intuitiveness, and is an upgraded product of gear Hardness Tester.

The machine adopts computer software programming, high-magnification optical measurement system, sensor closed-loop control technology, through software input, can adjust the test force, select Vickers and Knoop test methods, holding time, etc., and provides a variety of hardness value conversion tables for reference, on the color touch screen can display the test method, test force; Measure the indentation length, hardness value, test force holding time, number of measurements, and type in the year, month, date, test results and data processing, etc., and output them through the printer. The Hardness Tester is equipped with an automatic indentation image analysis system, which can shoot and measure the measured indentation and the metallographic structure of the material, and is suitable for measuring the Vickers hardness and determination of tiny, book-shaped specimens, surface seepage coating and other specimens, and the Vickers hardness of brittle materials such as glass, ceramics, agate, gemstones, etc., especially suitable for testing the hardness of the gear tooth surface.

Packing list：Machine X, screw batch X2, horizontal adjustment screw X4, power cord X1, computer X1, Optical inspection connector X1, CCD camera X1, image analysis software X1, level X1, spare fuse core (2A) X2, Vickers Hardness block X2, 10x digital micrometer eyepiece X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
