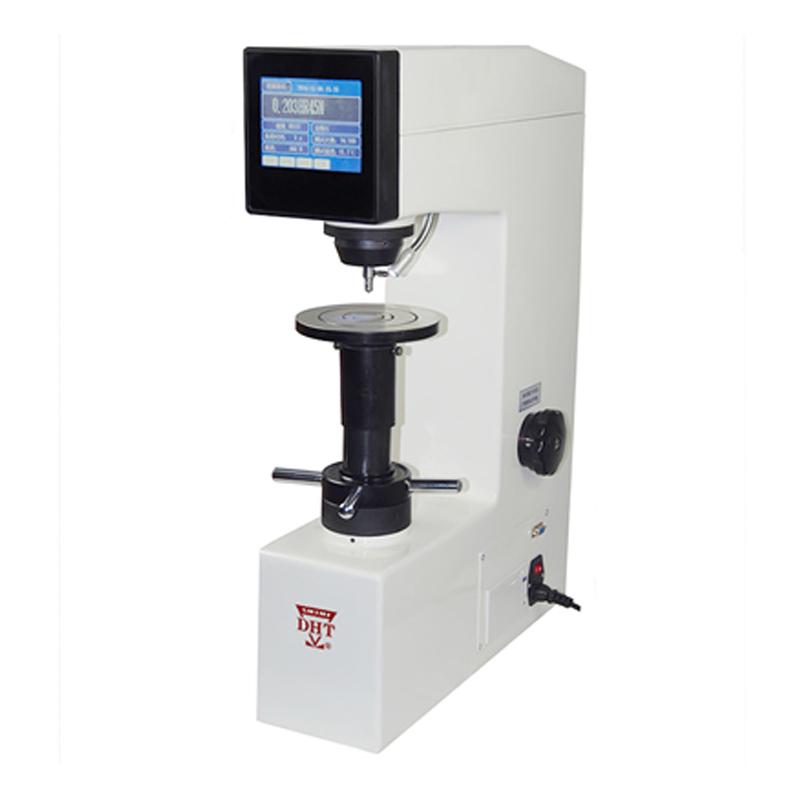

SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness Tester Initial test force 98.07N

The SMTMF MXHRS-150 plastic Rockwell Hardness Tester has an initial test force of 10kgf (98.07N) and is a touch screen digital Rockwell Hardness Tester with LCD display. The MXHRS-150 plastic Rockwell Hardness Tester is specially used to test Non-metallic materials, such as plastics, hard rubber, synthetic resins, friction materials and softer metals. Hardness Tester.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness TesterSPEC

SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness TesterDetails

SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness TesterPacking list

SKU
NB015599
initial test force
10kgf(98.07N)
test force
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Hardness reading
LCD screen
execution standard
GB7407 JJG884 ASTMD785
Indenter Specifications
Should be 3.175mm steel ball indenter Should be 6.35mm steel ball indenter Should be 12.7mm steel ball indenter
Rockwell scale
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK
Hardness testing range
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77，HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Load time
1-30s (the total test force holding time for plastic rockwell hardness test is 15 seconds)
Maximum height of specimen
170MM
Distance from the center of the indenter to the fuselage
165mm
Power Supply
AC220V+5%,50~60Hz
Dimension
510*212*700mm
Host Weight
85Kg
MXHRS-150
Touch screen digital display plastic Rockwell Hardness Tester
SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness Tester Initial test force 98.07N Picture

Introduction

MXHRS-150 Digital Plastic Rockwell Hardness Tester is a Hardness Tester that specializes in testing non-metallic materials, such as plastics, hard rubber, synthetic resins, friction materials and softer metals.

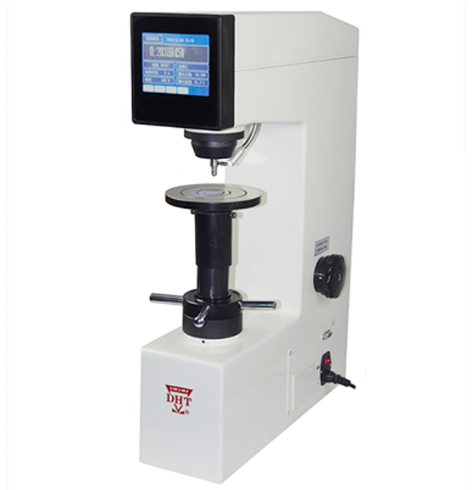

Donghua MXHRS-150 Touch Screen Digital Display Plastic Rockwell Hardness Tester

Features

●Adopt automatic loading and unloading test force mechanism

●External lighting source, the test point can be clearly seen

●Equipped with a potentiometer that can adjust the total force holding time

●The operation is simple and fast, except for the dial to zero, there is no human operation error

●It has high sensitivity, stability, and is suitable for workshops and laboratories


Standard configuration

name

quantitynamequantity
Steel ball indenter3 pcsFuse 0.5A (size 5x20)2 roots
Hardness blocks (HRE, HRL, HRM, HRR)1 piece eachLarge, medium and V-shaped test benches1 each
weight1 setDust-proof plastic cover1 pc
Instrument bulb (GY6-12A)2 pcsPower cord1 root
Instruction manual for the product1 servingProduct Certificate1 serving


FAQ
QResin lenses on the coating Hardness, this Rockwell hardness tester can be measured?
A Can't measure
