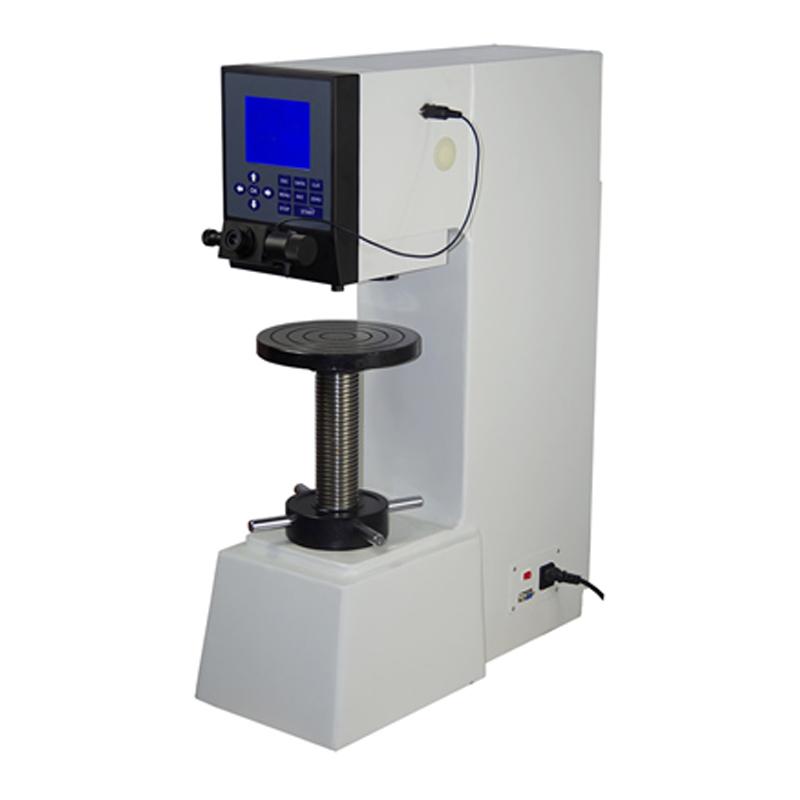

AOLONGXINGDI HBS-3000Z Automatic turret direct reading digital display Brinell Hardness Tester

AOLONGXINGDI HBS-3000Z automatic turret direct reading digital display Brinell Hardness Tester Minimum Measurement unit is 0.001mm, hardness testing range is 8~ 650HBW, HBS-3000Z is a suitable for hard plastics, bakelite and other certain Non-metallic hardness of materials determination of automatic turret direct reading digital display Brinell Hardness Tester.

Model：

HBS-3000Z

Certificate

AoLongXingDi

Contact

Details SPEC CAT

AoLongXingDi HBS-3000Z Automatic turret direct reading digital display Brinell Hardness TesterSPEC

AoLongXingDi HBS-3000Z Automatic turret direct reading digital display Brinell Hardness TesterDetails

AoLongXingDi HBS-3000Z Automatic turret direct reading digital display Brinell Hardness TesterPacking list

SKU: NB015600

Brinell scale: HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000

test force: 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf（612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N）

Conversion ruler: HV、HK、HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRK、HR15N、HR30N、 HR45N、HR15T、HR30T、HR45T

Measurement unit: 0.001mm

Test force holding time: 0~60s

Microscope magnification: 20X

Objective and probe switching: automatic

Hardness testing range: 8~650HBW

execution standard: ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2

Hardness reading: Digital LCD Reading Hardness

Interface: Built-in printer, RS232 interface

Power Supply: AC220+5%,50~60Hz

Distance from the center of the indenter to the body: 135mm

Maximum height of specimen: 230mm

Dimension: 786*565*245mm

Host Weight: 130kg

HBS-3000Z

Automatic turret direct reading digital display Brinell Hardness Tester

Introduction

HBS-3000Z digital Brinell Hardness Tester is a mechatronics product with precise mechanical structure and microcomputer control closed-loop system, the instrument cancels the weight, adopts electric loading and unloading test force, feedback by 0.5‰ precision pressure sensor, CPU control and can automatically compensate for the loss of test force in the test. The indentation can be directly measured on the instrument through the micrometer eyepiece, and the test force, indentation length, dwelling time, number of measurements, conversion scale, date and time can be displayed more intuitively on the large screen. The data results can be saved and viewed in a table, or output through the built-in printer, and equipped with RS232 interface for users to connect to a computer for output. The Hardness Tester can also be equipped with a video measuring device and an automatic CCD image measuring system according to the user's special needs.

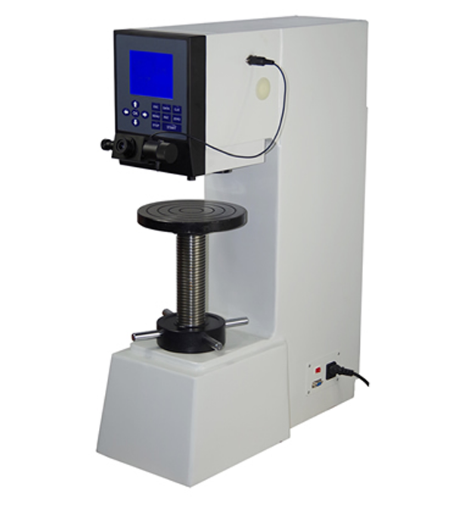

Oron Star Di HBS-3000Z Automatic Turret Direct Reading Brinell Hardness Tester

Scope of application

It is suitable for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys and other materials, as well as the hardness determination of some non-metallic materials such as hard plastics and bakelites.

Standard configuration
name	quantity	name	quantity
20X micrometric eyepiece	1 pc	Ф2.5mm carbide ball indenter	1 stick
Ф5mm tungsten carbide ball indenter	1 stick	Ф10mm carbide ball indenter	1 stick
Standard hardness blocks	3 pieces	Large-scale test bench	1 pc
Medium-shaped test bench	1 pc	V-shaped table	1 pc
fuse	2 pcs	Power cord	1 root
RS232 wiring	1 root	Instruction manual for the product	1 serving
Product Certificate	1 serving
