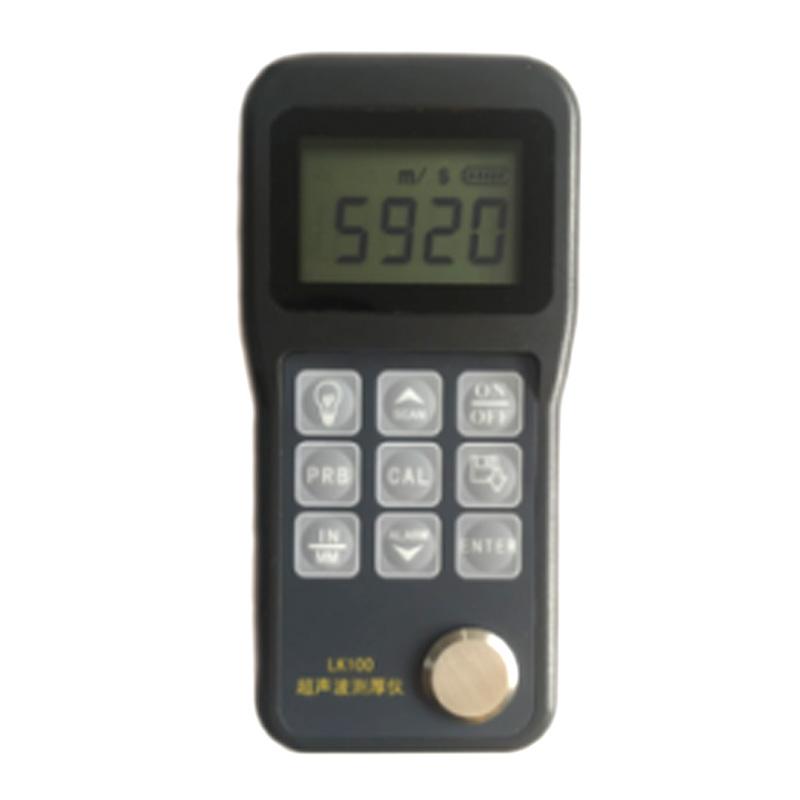

LUKE LK100 Ultrasonic Thickness Gauge Measurement range: 0.8~ 300mm (steel)

LUKE LK100 Ultrasonic Thickness Gauge uses new high-performance, low-power microprocessor technology to measure the thickness of metals and other materials, and can measure the ultrasonic Speed of sound of materials. Measurement range of the LK100 Ultrasonic Thickness Gauge is 0.8~ 300mm.
Model：
Certificate
Contact
Details SPEC CAT

LUKE LK100 Ultrasonic Thickness GaugeSPEC

LUKE LK100 Ultrasonic Thickness GaugeDetails

LUKE LK100 Ultrasonic Thickness GaugePacking list

SKU
NB015666
Measurement range
0.8~ 300Mm (steel)
Display resolution
0.1mm
Measurement mode
There are two Operating Modes of thickness measurement: single-point thickness measurement and scanning thickness measurement
Storage Capacity
Can store 20 sets (up to 100 Measured values each) of thickness measurement data
Speed of sound
1000~9999m/s
Display
High contrast ratio segment LCD display, high luminance EL backlight
Power Supply
2 AA alkaline batteries
Operating Time
More than 100h (when the backlight is not turned on)
Host size
150*73.5*31mm
Weight
185G (without battery)
error of indication
+/- (0.5% H + 0.1) mm, H is the actual thickness of the measured object
Measurement speed
Single point measurement 4 times per second, scanning mode 10 times per second
unit system
Metric or imperial system, metric and imperial systems can be freely converted
LK100
Ultrasonic Thickness Gauge
LUKE LK100 Ultrasonic Thickness Gauge Measurement range: 0.8~ 300mm (steel) Picture

Introduction

This instrument is an intelligent ultrasonic Thickness Gauge based on the ultrasonic measurement principle, using the new high-performance, low-power microprocessor technology, which can measure the thickness of metals and other materials, and can measure the ultrasonic sound velocity of materials. In addition, the instrument can monitor various pipes and pressure vessels in production equipment, monitor their degree of thinning after corrosion during use, and can also accurately measure various plates and various machined parts. This instrument can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.

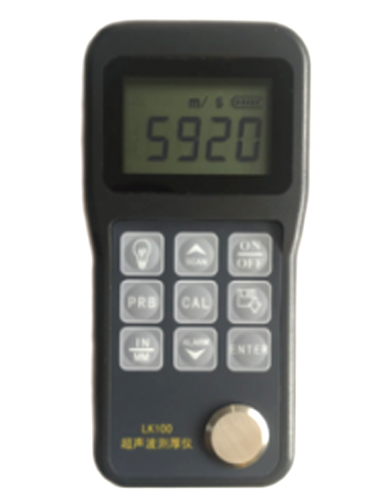

Luco inspects the LK100 ultrasonic Thickness Gauge

FAQ
QHow many measurement modes are there for this LK100 Ultrasonic Thickness Gauge?
A Hello, there are two modes of single-point thickness measurement and scanning thickness measurement.
QHow thick can this LK100 Ultrasonic Thickness Gauge detect?
A LK100 Ultrasonic Thickness Gauge Nominal Minimum Measurable 0.8mm
QI want to do a test on the ASTME797 standard, is this Ultrasonic Thickness Gauge okay?
A Sure
