Germany

EPK MiniTest 4500 Coating Thickness Gauge can be grouped and calibrated with compensation/Bluetooth/sound and light alarm

EPK MiniTest 4500 Coating Thickness Gauge is EPK's new Film thickness meter, used to replace the MiniTest 4100 series, MiniTest 4500 has 200W storage, can be grouped, comes with a variety of calibrated with compensation, USB, Bluetooth, can also sound and light alarm, probe need to be purchased separately.
Contact
Details SPEC CAT
Similar products

ElektroPhysik MiniTest 4500 Coating Thickness GaugeSPEC

ElektroPhysik MiniTest 4500 Coating Thickness GaugeDetails

ElektroPhysik MiniTest 4500 Coating Thickness GaugePacking list

SKU
NB016221
Calibrated mode
Factory calibrated, zero and up to four calibrated points, if no substrate is used, calibrated by coating (CTC)
Alarm function
Optical and audible signal alarms when limits are exceeded
Unit display
μm/mm/cm/mils/inch
statistical function
kvar, n, max., min. kvar, n, max., min
compensation function
Used to add/subtract a constant value from a reading
Interface
USB and Bluetooth 4.0
Data storage
200W, can be grouped over 9500
Power Supply
3 * AA (LR06) battery, USB
Standards
DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376
Display screen
53 x 46 mm, backlit
Operating temperature
-10~60℃
Storage temperature
-20~70℃
Battery life
150 hours (without backlighting)
Protection level
IP65
Weight
320G (including battery)
Dimension
153*89*36mm
MiniTest 4500
Coating Thickness Gauge

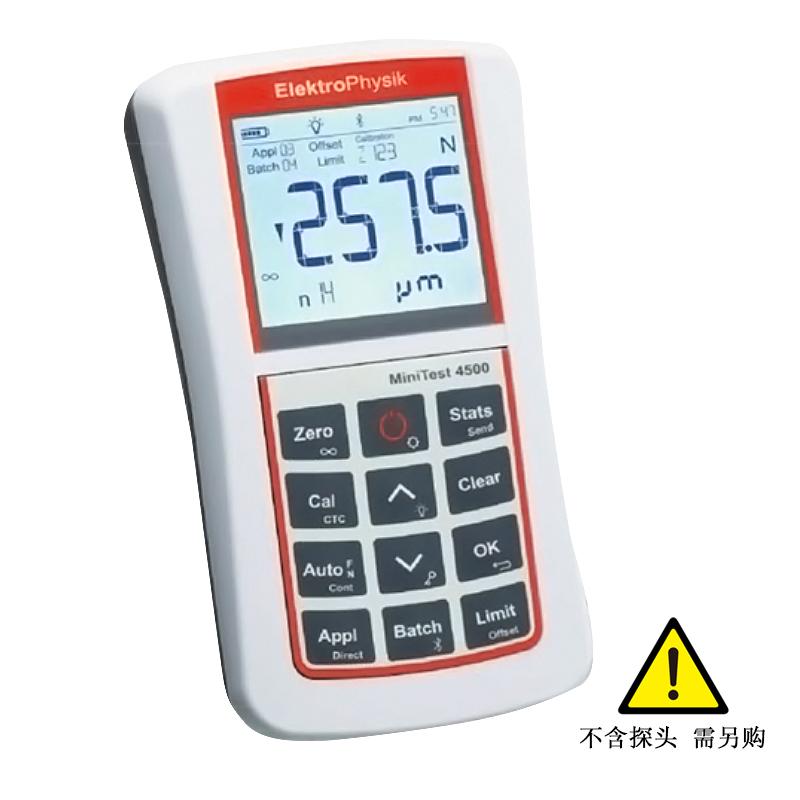

EPK MiniTest 4500 Coating Thickness Gauge can be grouped and calibrated with compensation/Bluetooth/sound and light alarm Picture

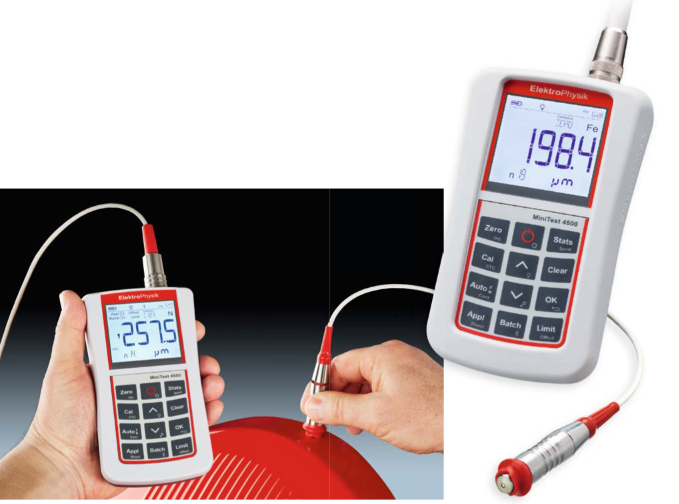

MiniTest 2500 andMiniTest 4500The coating Thickness Gauge unit can be used with a wide range of transducers, different calibration methods and evaluation options for a wide range of tasks in the field of coating measurement.

Non-destructive measurement covers the following measurement ranges:


0 - 50 mm for non-magnetic coating on steel

0 - 100 mm for insulating coatings on non-ferrous metals

Heat-resistant probes are suitable for temperatures up to 250°C and 350°C

Pencil-shaped probes are measured in tubes and tubes

All probes are equipped with wear bars to ensure long service life on abrasive substrates.


MiniTest 2500 andMiniTest 4500Both models are equipped with a huge data memory that can store up to 2 million measured values, which can be in direct mode (MiniTest 2500) or classified as an APPLICATION-BATCH memory structure.


Data transfer to PC via USB interface; The MiniTest 4500 also offers Bluetooth connectivity.


The ergonomic design, clear display, one-touch operation and illuminated keypad, among other practical features, add high customer value to the MiniTest 2500-4500 meter series.

apply

NDT Thickness Gauges are suitable for:

Non-magnetic coating on steel

Insulating coatings on non-ferrous metals

Copper layer on an insulating substrate

Powder coatings on steel and non-ferrous metals

features

A wide range of wear-resistant probes are available for a variety of applications

Universal probes with automatic substrate inspection can quickly measure steel and non-ferrous metals

Wear-resistant special probes with virtually unlimited service life

High measurement accuracy and high repeatability

Store and evaluate the measured values

Special calibration function for rough surfaces and calibration of unknown coating (CTC method)


FAQ
QCoating thickness test on titanium alloy, Coating thickness 15~ 25mm, the equipment bought before can't measure titanium alloy, I don't know if it is not suitable for side F type
A Pure titanium is non-magnetic or weakly magnetic. It is more suitable to use an N probe. It can be equipped with a probe N20 that measures 0-20mm, or a larger range of 0-100mm.
QWhere can I buy the MiniTest 4500 Coating thickness gauge?
A Hello, if there is a combination sale under the host, you can choose the probe, or you can consult NBchao customer service.
QDoes the EPK MiniTest4500 Coating thickness gauge come standard with Bluetooth function?
A Hello, yes.
QMeet ISO2178 Coating thickness gauge
A MiniTest 4500 Coating thickness gauge, please refer to it.
