WENTAI HY-30 Ultrasonic Flaw Detector DAC Linear dispersion automatically generates 6 meters range

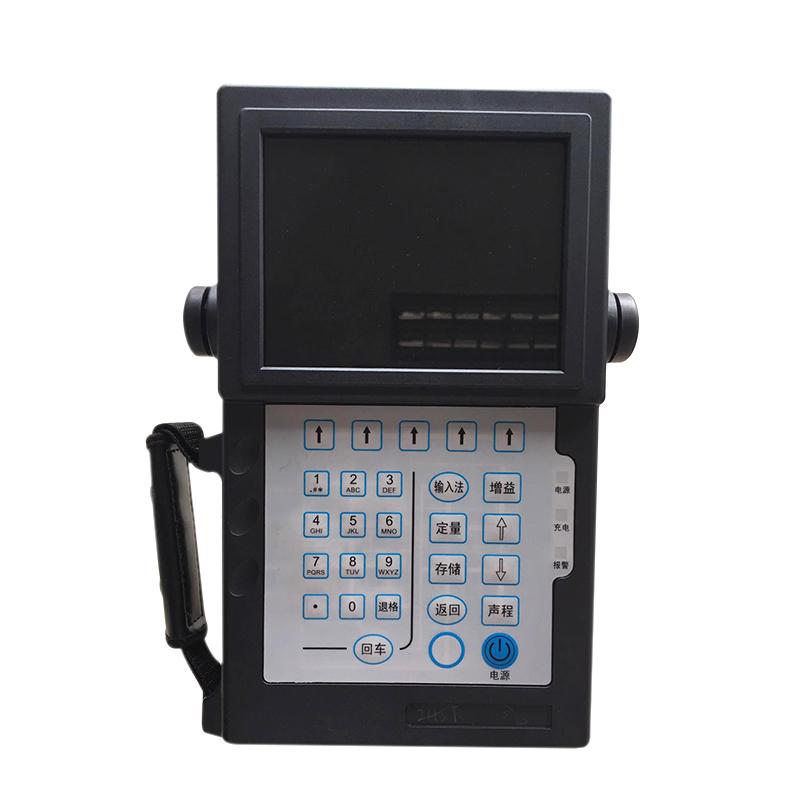

HY-30

Ultrasonic Flaw Detector

Support DAC Linear dispersion automatic generation and correction, maximum 6 meters range echo signal processing, 10 independent flaw detection channels freely set, 5.7 inch TFT color screen display, easy to operate.

feature of product

1. DAC and AVG curves are automatically generated, sampling points are not limited, and compensation and correction can be performed

2. The emission pulse frequency is adjustable, up to 1000 times/s

3. 10 independent flaw detection channels, free to set and store a variety of flaw detection processes and standards, no need to carry test blocks for on-site flaw detection

4. It can process echo signals with a range of up to 6 meters

5. Real-time dynamic video recording and follow-up during the detection process, the maximum recording time is 50 minutes

6. 5.7-inch TFT color screen display, users can customize the screen color according to the environment

7. Single-probe, double-probe, penetration and other flaw detection working methods

8. There are 4 detection methods: positive half wave, secondary half wave, full wave and radio frequency

9. With double gate capture waveform function

10. Automatic measurement and calculation of crack depth

11. Retrieve the highest wave of defects in real time and record the maximum value of defects

12. Perform functions such as peak trajectory depiction and peak memory on defect echoes to assist in qualitative judgment of defects

13. Sound and light alarms can be set for various conditions such as the gate, the incoming wave of the curve, and the wave lost

14. The main menu and submenus are displayed in the same window. Clear at a glance, easy to operate, easy to find

15. The main functions are quickly accessed through shortcut keys, and the jog wheel is convenient for quick adjustment of settings

16. A variety of industry reports are available

17. Data can be imported into computer through USB2.0 interface

18. Large-capacity lithium battery can guarantee more than 8 hours of battery life

19. The battery can be charged while the host is working

20. The handset can be operated by hand with the wrist strap, or it can be operated by hanging on the chest through the strap

21. Protection class IP53, can be used in dripping water environment or light rain

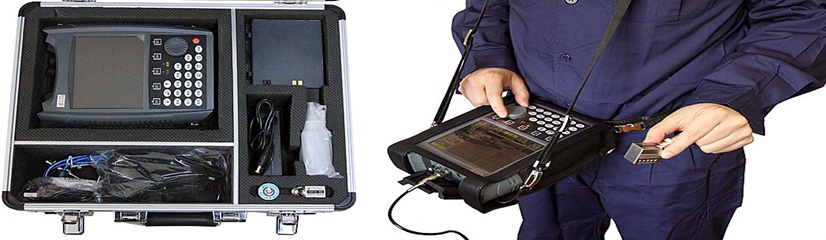

Packing list：Ultrasonic flaw detection (UFD) instrument x1, probe x2, charger x1, power cord x1, probe cable x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
