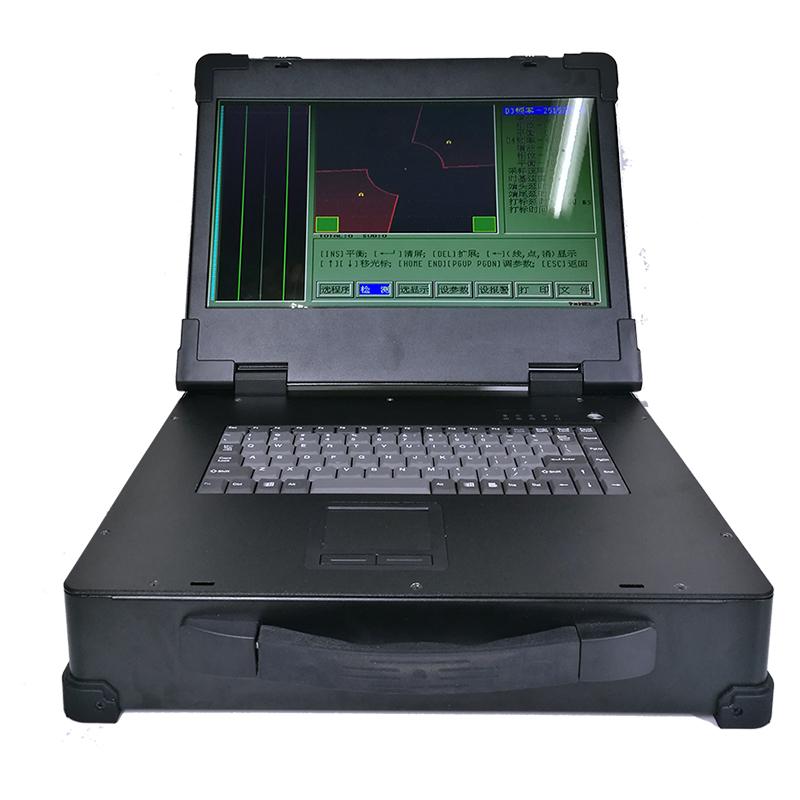

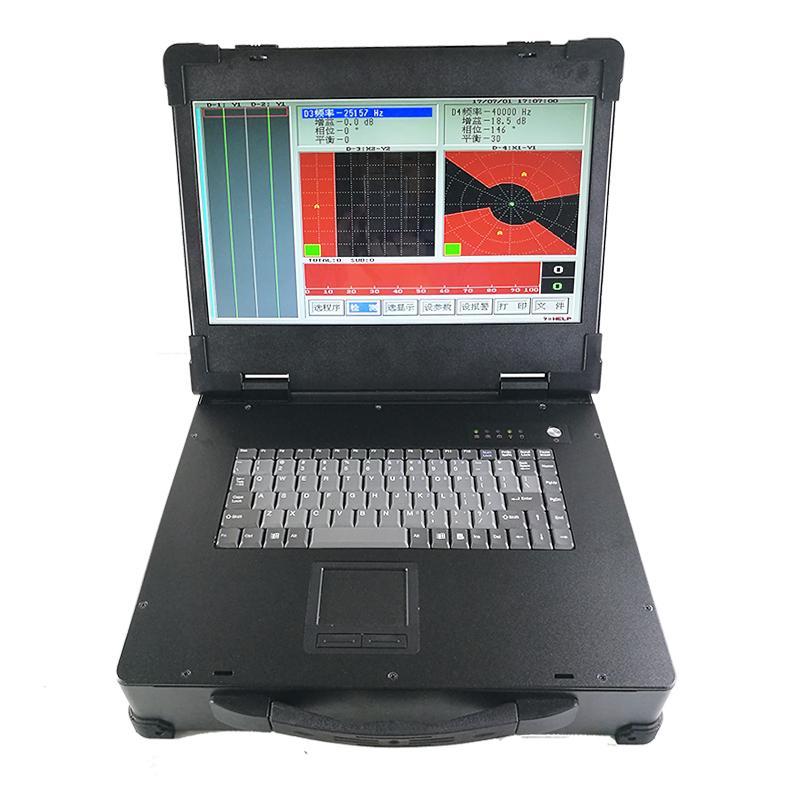

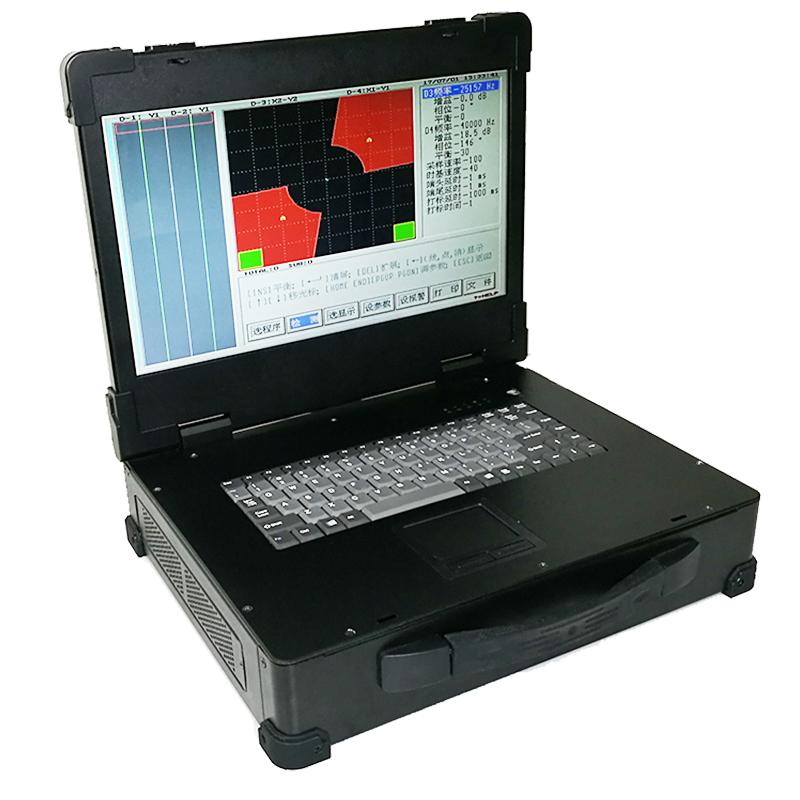

WENTAI FET-9NS Portable eddy current Flaw Detector with training
SE
FET-9NS
WenTai FET-9NS Eddy current Flaw DetectorSPEC
WenTai FET-9NS Eddy current Flaw DetectorDetails
WenTai FET-9NS Eddy current Flaw DetectorPacking list
- SKU
- NB016262
- Detection channel
- 1
- Frequency range
- 50Hz~12MHz
- Gain range
- 0~90dB continuously adjustable, step: 0.1dB
- Phase swirl/spin
- 0~359 ° continuously adjustable, step: 1deg
- gain ratio
- 0.1~10.0
- Display mode
- Impedance, time base
- Alarm function
- Sound and light alarm output, delay hardware output alarm, real-time hardware output alarm
- Automatic equilibrating time
- 1~100s
- Display mode
- Solid line, blanking
- blanking display coefficient
- 1~100
- Operating language
- Chinese
- Power
- lithium battery
- Operating Time
- 6-8 hours of full use at a time
- Operating temperature
- 0~40℃
- Storage temperature
- -20~50℃
- Relative Humidity
- ≤85%
- Operating Voltage
- AC220±10V
The FET-9NS portable flaw Detector is easy to carry and is suitable for online and offline flaw detection of metal pipes and rods, steel pipes, aluminum tubes and copper pipes, etc. The internal penetrating probe can detect various defects on the inner wall of the pipe. It has a relatively independent test channel, which can drive a combined probe composed of absolute and differential coils. The detection channel can simultaneously collect data, and is used to detect longitudinal cracks and transverse defects (such as splines) in the production of metal pipes. Axial defects such as cracks and openings have high sensitivity. During the production process, the cracks and damages of products caused by faults can be reliably detected. The signal acquired by the detection channel can be displayed on the screen in real time in the impedance plane diagram and time-based scanning diagram. It can adapt to the detection requirements of various metal pipes, and because of the fully digital design, multiple standard detection programs or expert systems can be established in the instrument, which is convenient for users to call when changing product specifications. It is equipped with input and output control interfaces , It is convenient to connect the detection site with various equipment and work synchronously to form a highly automated whole.
performance parameter
Detection channel: 1 (the number of channels can be expanded as needed)
Frequency range: 50 Hz ~ 12 MHz, to meet the detection of different products
Gain range: 0~90 dB continuously adjustable, step: 0.1dB
Phase rotation: 0~359° continuously adjustable, step: 1 deg
Gain ratio: (X/Y) 0.1～10.0
Fast Digital/Analog Electronic Balance
Unequal amplitude and asymmetrical phase alarm area setting
Multiple display methods: impedance, time base;
Delayed hardware output alarm, real-time hardware output alarm
Sound and light alarm output
Automatic balance time: 1 to 100 seconds
Internal and external clock selection
With end and end signal cutting function
The extended function of eddy current signal playback can be used to measure the amplitude, phase and digital value of defects
Display mode: solid line, blanking
Blanking display coefficient: 1～100
Chinese operating language, online help
Cartesian coordinate system and polar coordinate system background selection
Automatic calendar, time display
Power supply: lithium battery can be used for 6-8 hours once fully charged
Working diagram of detection interface

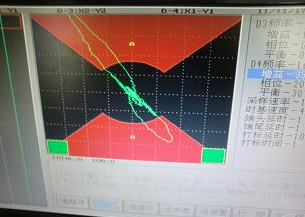

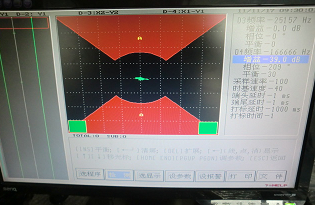

| Qualified product detection signal | Defective product detection signal |
 |  |
