UNI-T UT71A smart Multimeter

UNI-T UT71A smart digital Multimeter is widely used in industrial signal and transmission detection, with AC + DC function, UT71A smart digital Multimeter measurement current loop range 4~ 0mA, can set the upper and lower limits of measurement, excessive range alarm.
Model：
Contact
Details SPEC OI

UNI-T UT71A Smart Digital MultimeterSPEC

UNI-T UT71A Smart Digital MultimeterDetails

UNI-T UT71A Smart Digital MultimeterPacking list

SKU
NB016435
DC Voltage
200mV/2V/20V/200V/1000V
DC Voltage - Accuracy
±(0.1%+8)
AC Voltage
2V/20V/200V/1000V
AC Voltage - Accuracy
±(0.8%+40)
DC current
200μA/2000μA/20mA/200mA/10A
DC current - Accuracy
±(0.2%+20)
AC current
200μA/2000μA/20mA/200mA/10A
AC current - Accuracy
±(1.0%+15)
Resistance
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
Resistance - Accuracy
±(0.5%+20)
capacitor
20nF/200nF/2μF/20μF/200μF/2mF/20mF
Capacitance - Accuracy
±(1.5%+20)
Frequency
20Hz~200MHz
Frequency - Accuracy
±(0.1%+15)
maximum display
19999
automatic range
Yes.
True RMS
Yes.
frequency response
100KHz
duty cycle
(5Hz-2kHz)10~90%
Diode test
Yes.
Automatic shutdown
Yes.
on-off beep
Yes.
Low Voltage display
Yes.
number hold
Yes.
Relative measurement
Yes.
Max/MIN Minimum
Yes.
Interface
USB
LCD backlight
LCD dual backlight
analog strip
Yes.
full symbol display
Yes.
function settings
Yes.
Impedance
DC 200mV: Around 2.5GΩ，All Other Range：10MΩ
Current measurement dislocation alarm
Yes.
Voltage current
AC+DC
Power Supply
9V Battery (6F22)
Display size
73*50mm
Weight
384g
Dimension
200*93*40mm
UT71A
Smart Digital Multimeter

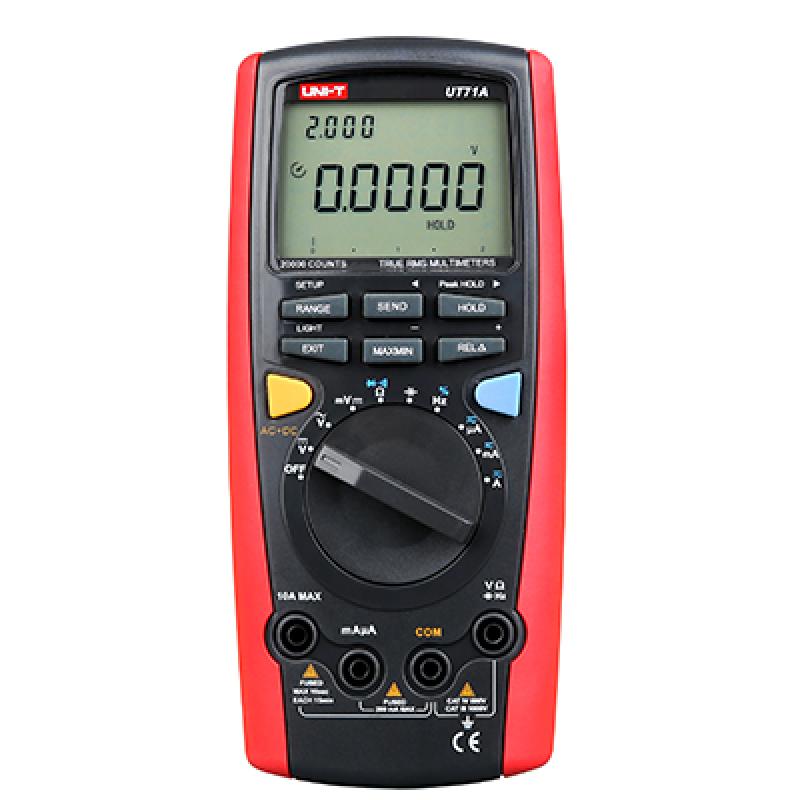

UNI-T UT71A smart Multimeter Picture

UT71 series intelligent digital multimeter, with 4-20mA current loop measurement, can cope with a wide range of signal transmission problems in the industry, unique AC+DC function, in DC measurementThe high-frequency interference of AC can be observed, and the problem can be solved by quickly diagnosing the fault.

Features

● AC+DC measurement function

● 4—20mA current loop measurement (UT71B only)

● Response measurement of 45Hz-100KHz high-frequency signal

● Temperature measurement function, equipped with K-type point temperature probe (UT71B only)

● Peak Hold Function: Automatically keep the highest/lowest value of the pulse signal

● Full-function gear setting, the upper and lower limits of measurement can be set, and the over-range alarm can be set

● Automatic recording of measurement data with configurable storage interval (UT71B only)

● Bluetooth data transmission: real-time monitoring of measurement data by connecting to mobile phones via Bluetooth
