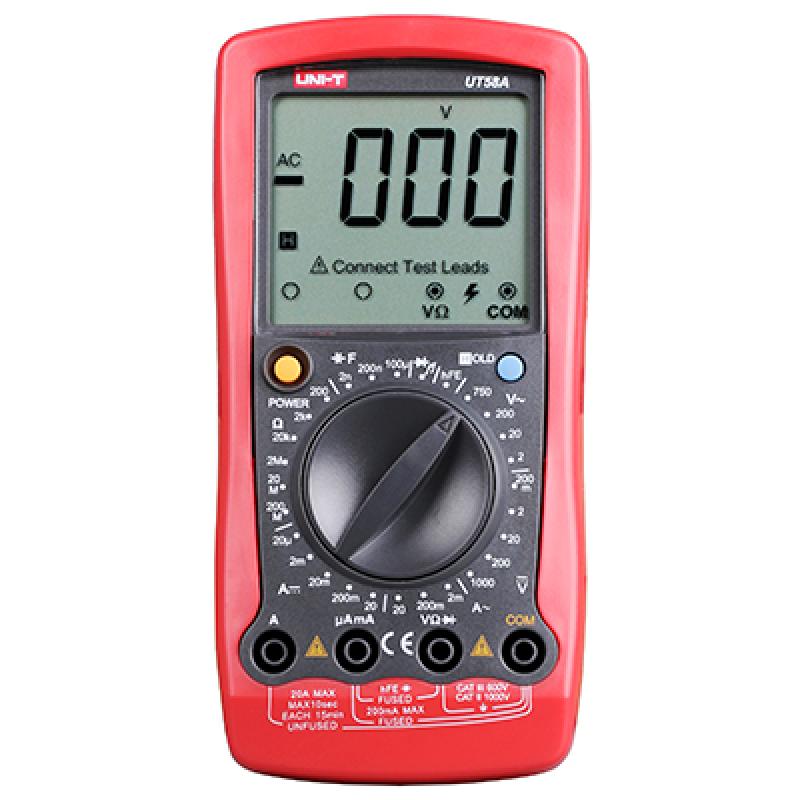

UNI-T UT58A Universal Digital Multimeter

UNI-T UNI-T Universal Digital Multimeter UT58A has a temperature measurement function with a temperature sensor that can measure up to 1000 ℃, and the UT58A Digital Multimeter can measure capacitance and transistors.
Model：
Contact
Details SPEC OI

UNI-T UT58A Universal Digital MultimeterSPEC

UNI-T UT58A Universal Digital MultimeterDetails

UNI-T UT58A Universal Digital MultimeterPacking list

SKU
NB016442
DC Voltage
200mV/2V/20V/200V/1000V
DC Voltage - Accuracy
±(0.5%+1)
AC Voltage
2V/20V/200V/750V
AC Voltage - Accuracy
±(0.8%+3
DC current
20μA/2mA/20mA/200mA/20A
DC current - Accuracy
±(0.8%+1)
AC current
2mA/200mA/20A
AC current - Accuracy
±(1.0%+3)
Resistance
200Ω/2KΩ/20KΩ/2MΩ/20MΩ/200MΩ
Resistance - Accuracy
±(0.8%+1)
capacitor
2nF/200nF/100μF
Capacitance - Accuracy
±(4%+3)
temperature
-40~1000℃
Temperature - Accuracy
±(1%+3)
maximum display
1999
manual range
Yes.
Diode test
Yes.
Triode test
Yes.
Automatic shutdown
Yes.
on-off beep
Yes.
number hold
Yes.
Low Voltage display
Yes.
full symbol display
Yes.
Impedance
≥10MΩ
input port prompt
Yes.
Power Supply
9V Battery (6F22)
Display size
60*54mm
Body Color
Red + gray
Weight
350G (including protective cover)
Dimension
179*88*39mm
UT58A
Universal Digital Multimeter

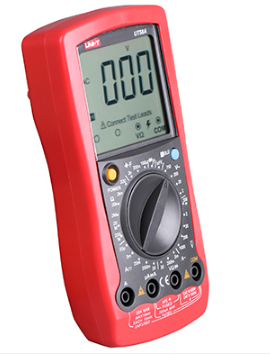

UNI-T UT58A Universal Digital Multimeter Picture

The UT58 series is a manual range digital multimeter with novel structure, complete functions and easy to use, which can provide safe and reliable measurements.

This series of instruments has a large 60mm×54mm LCD screen display, and the input connection indication and full-function symbol are displayed on one screen, which effectively reduces the potential safety hazards caused by misoperation.

The instrument has 28 measurement gears, complete test functions, transistor magnification hFE measurement and other functions. It fully meets the needs of all kinds of electronic and electrical measurement applications.

Features

● Temperature measurement function, with K-type point temperature probe (UT58B/C only)

● Frequency measurement function (UT58C only)

● Diode and on-off beep; Automatic power off to save power

● Data retention, keep the measurement results, read at any time

● 20A large range AC and DC current measurement

● 1999 word reading display, updated 2~3 times per second

● 60mm×54mm large LCD display screen, simple interface, easy reading

● Full-function symbols and measurement input connection prompts, making measurement more convenient and safer

● Capacitance and transistor measurement function, equipped with plug-in original multi-function test socket

● Full-scale overload protection, which can be operated within the range of the over-range prompt
