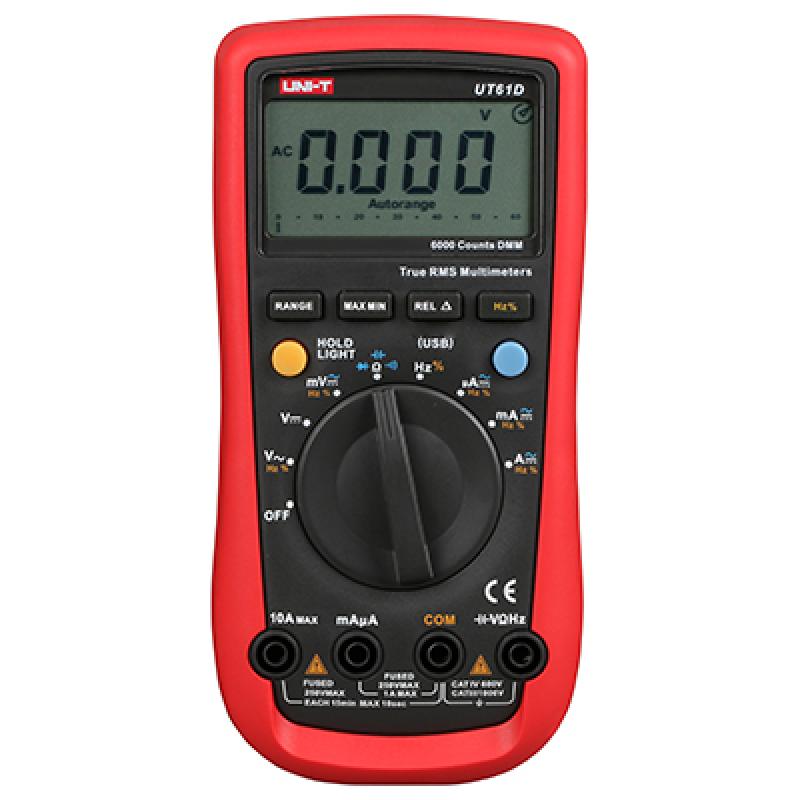

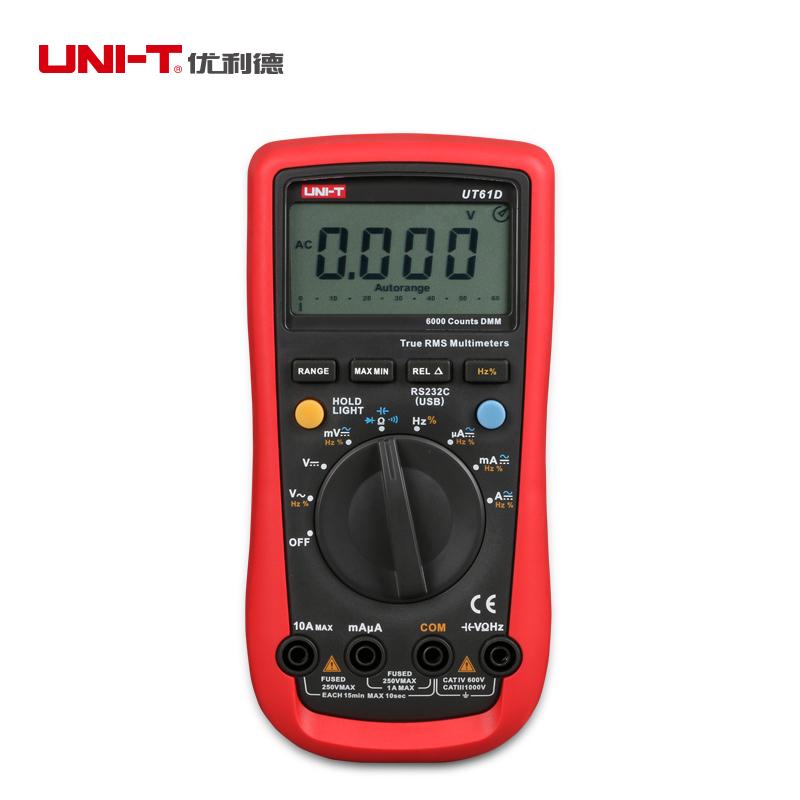

UNI-T UT61D smart Multimeter
The UNI-T UNI-T UT61D smart digital Multimeter has a Voltage range of 60mV~ 1000V and a current range of 600μA~ 10A. It has a backlit display function. The UT61D smart digital Multimeter supports simultaneous display of digital and analog pointers.
Model：
UT61D
UNI-T
Manufacturer authorization
UNI-T UT61D Smart Digital MultimeterSPEC
UNI-T UT61D Smart Digital MultimeterDetails
UNI-T UT61D Smart Digital MultimeterPacking list
- SKU
- NB016450
- DC Voltage
- 60mV/600mV/6V/60V/600V/1000V
- DC Voltage - Accuracy
- ±(0.5%+1)
- AC Voltage
- 60mV/600mV/6V/60V/600V/750V
- AC Voltage - Accuracy
- ±(1.0%+3)
- DC current
- 600μA/6000μA/60mA/600mA/6A/10A
- DC current - Accuracy
- ±(1.0%+3)
- AC current
- 600μA/6000μA/60mA/600mA/6A/10A
- AC current - Accuracy
- ±(1.2%+5)
- Resistance
- 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Resistance - Accuracy
- ±(1.0%+2)
- capacitor
- 40nF/400nF/4μF/40μF/400μF/4000μF
- Capacitance - Accuracy
- ±(3%+5)
- Frequency
- 10Hz~10MHz
- Frequency - Accuracy
- ±(0.1%+4)
- maximum display
- 5999
- True RMS
- Yes.
- automatic range
- Yes.
- frequency response
- 45Hz~1kHz
- duty cycle
- 0.1~99.9%
- Diode test
- Yes.
- on-off beep
- Yes.
- Low Voltage display
- ≤7.5V
- number hold
- Yes.
- Relative measurement
- Yes.
- Max/MIN Minimum
- Yes.
- Interface
- RS-232
- LCD backlight
- Yes.
- analog strip
- paragraph 61
- input protection
- Yes.
- Impedance
- ≥10MΩ
- Power Supply
- 9V Battery (6F22)
- Display size
- 65*43mm
- Body Color
- Red + gray
- Weight
- 370g
- Dimension
- 180*87*47mm
UT61D
Smart Digital Multimeter
The UT61 series digital multimeter is a handheld multimeter with high reliability, high security, automatic ranging, and more. With the synchronous display function of large screen digital and high-resolution analog pointers, full-scale overload protection and unique design, it is a new generation of practical electrical measuring instruments with better performance. And there are RS-232 or USB standard data transmission interface, data hold, relative measurement, peak measurement, under-Voltage indication, backlight and automatic shutdown function.
