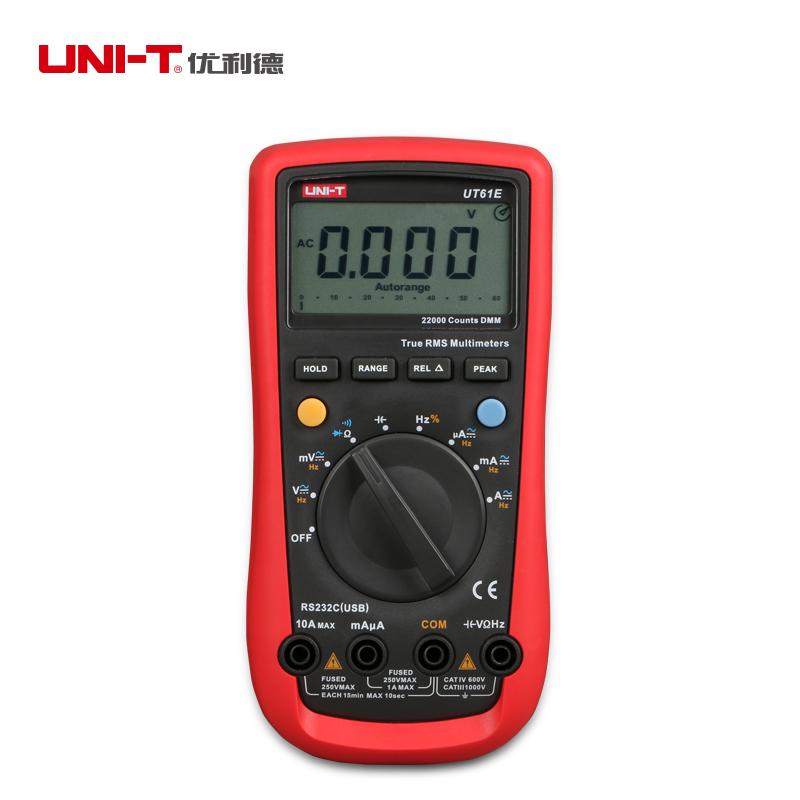

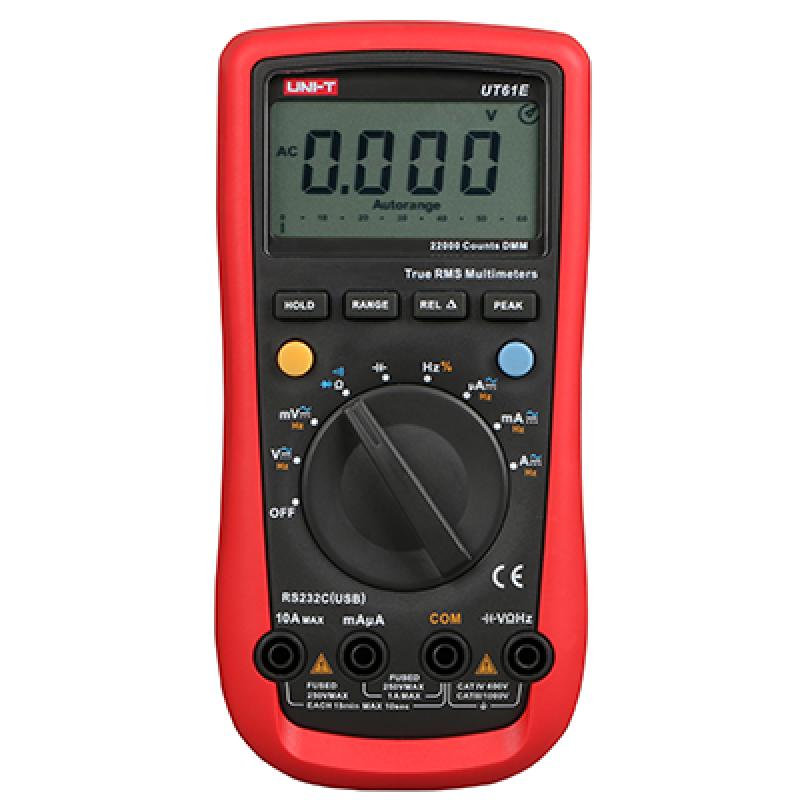

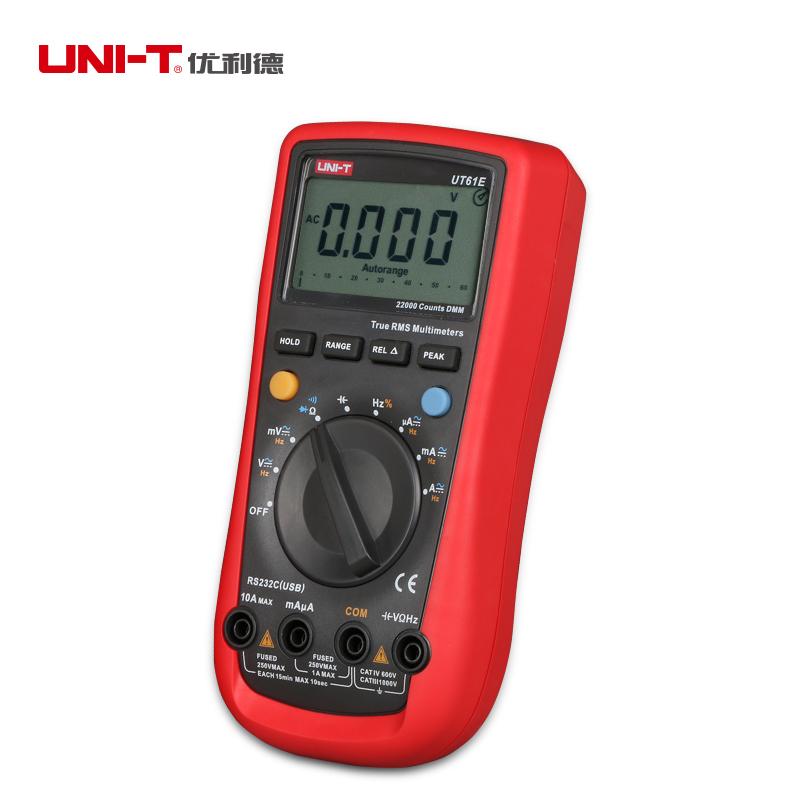

UNI-T UT61E Intelligent Digital Multimeter
UNI-T UNI-T UT61E Intelligent Digital Multimeter is a portable Multimeter with a Voltage range of 220mV~ 1000V and a current range of 200μA~ 10A. The UT61E Intelligent Digital Multimeter has an RS-232 or USB standard Data transmission interface.
Model：
UT61E
UNI-T
Manufacturer authorization
UNI-T UT61E Smart Digital MultimeterSPEC
UNI-T UT61E Smart Digital MultimeterDetails
UNI-T UT61E Smart Digital MultimeterPacking list
- SKU
- NB016451
- DC Voltage
- 220mV/2.2V/22V/220V/1000V
- DC Voltage - Accuracy
- ±(0.1%+2)
- AC Voltage
- 220mV/2.2V/22V/220V/750V
- AC Voltage - Accuracy
- ±(0.8%+10)
- DC current
- 200μA/2200μA/22mA/220mA/2.2A/10A
- DC current - Accuracy
- ±(0.5%+10)
- AC current
- 200μA/2200μA/22mA/220mA/2.2A/10A
- AC current - Accuracy
- ±(0.8%+10)
- Resistance
- 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ
- Resistance - Accuracy
- ±(0.5%+10)
- capacitor
- 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF
- Capacitance - Accuracy
- ±(3%+5)
- Frequency
- 10Hz~220MHz
- Frequency - Accuracy
- ±(0.01%+5)
- maximum display
- 22000
- True RMS
- Yes.
- automatic range
- Yes.
- frequency response
- 45Hz~10kHz
- duty cycle
- 0.1~99.9%
- Diode test
- Yes.
- on-off beep
- Yes.
- Low Voltage display
- ≤7.5V
- number hold
- Yes.
- Relative measurement
- Yes.
- peak
- Yes.
- Interface
- RS-232
- analog strip
- paragraph 46
- input protection
- Yes.
- Impedance
- ≥10MΩ
- Power Supply
- 9V Battery (6F22)
- Display size
- 65*43mm
- Body Color
- Red + gray
- Weight
- 370g
- Dimension
- 180*87*47mm
UT61E
Smart Digital Multimeter

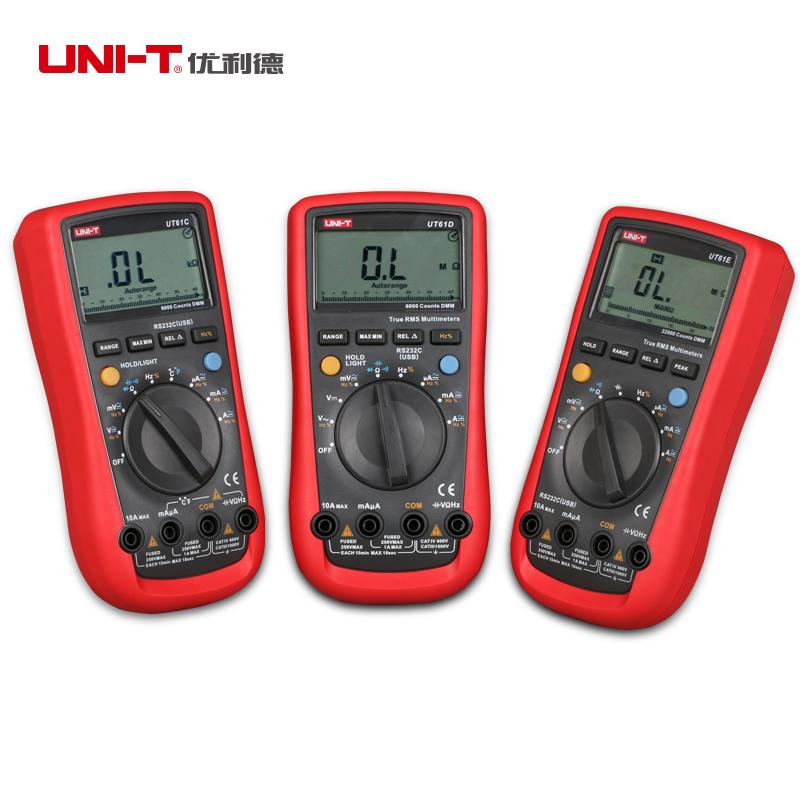

The UT61 series digital multimeter is a handheld multimeter with high reliability, high security, automatic ranging, and more. With the synchronous display function of large screen digital and high-resolution analog pointers, full-scale overload protection and unique design, it is a new generation of practical electrical measuring instruments with better performance. And there are RS-232 or USB standard data transmission interface, data hold, relative measurement, peak measurement, under-Voltage indication, backlight and automatic shutdown function.
